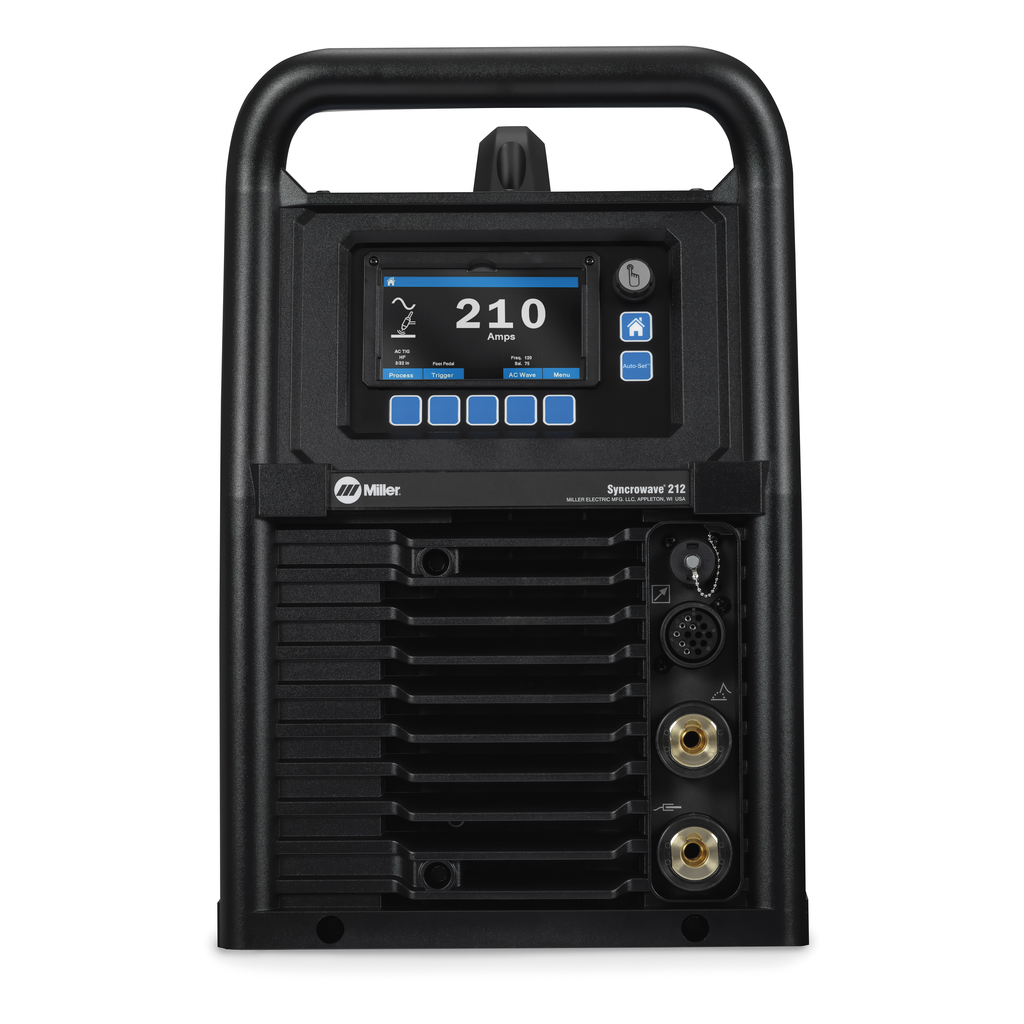

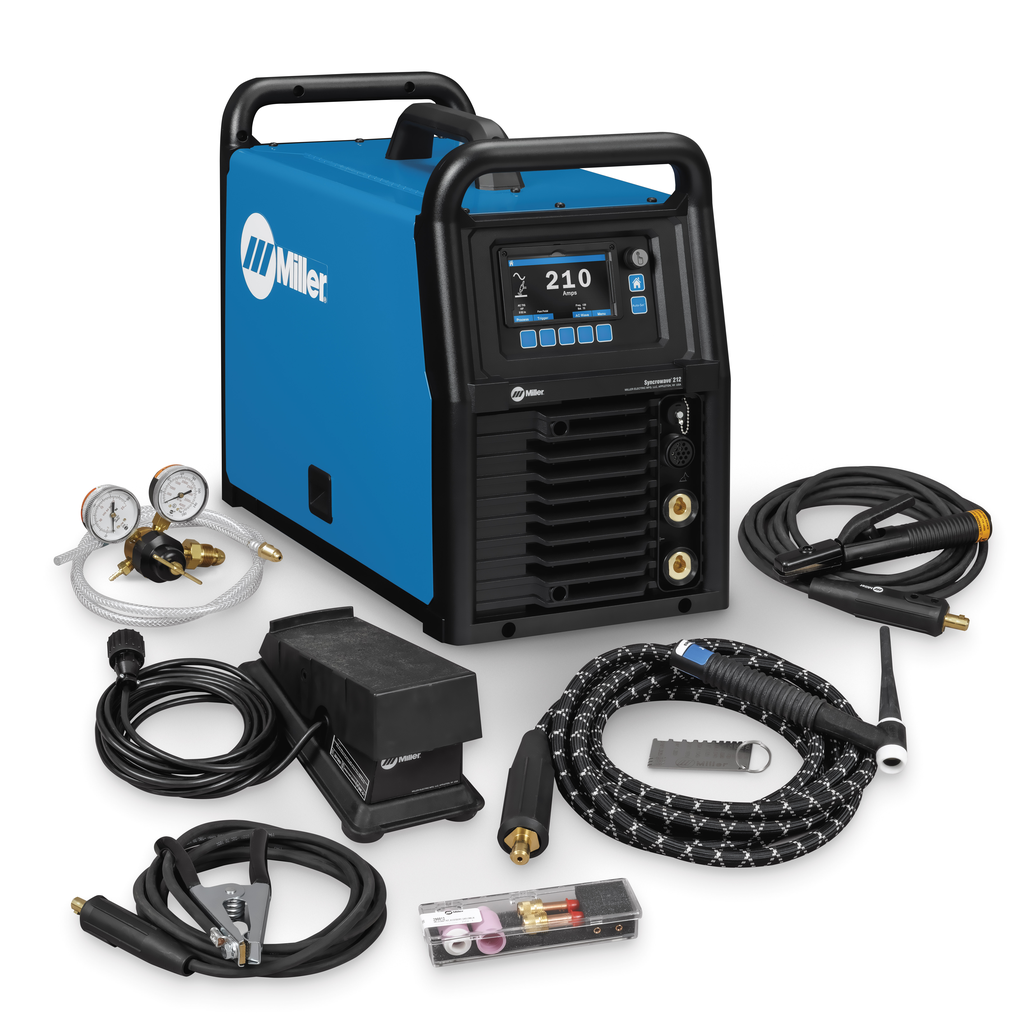

Miller Electric Syncrowave 212 Air-Cooled Package - 907911

The Syncrowave 212 is a feature rich TIG power source that gives you the premium arc you expect from Miller. The confidence inspiring LCD display with Auto-Set helps you dial in weld parameters and it’s versatile design provides seamless integration with an optional water cooler or spool gun.

Features

• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Dependable Arc Starts: Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.
• Auto-Set™ Technology: Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Easy-to-Use: 1. Turn power on. 2. Select Process: AC TIG, DC TIG, DC Stick or MIG Spool Gun. 3. Set amperage or voltage based on material thickness. Then weld! It’s as easy as 1, 2, 3.
• 14-Pin Controlled Operator Alternatives: The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.

• Input Voltage: 120-240 V, 1-Phase, 50/60 Hz
• Amperage Range AC/DC TIG: 20-210 A
• Amperage Range DC Stick: 30-200 A
• Amperage Range MIG: 30-175 A
• Rated Output: 130 A at 15.2 V, 60% duty cycle
• Duty Cycle AC/DC TIG: 210 A, 20%; 130 A, 60%; 120 A, 100%
• Duty Cycle DC Stick: 160 A, 20%; 120 A, 60%; 100 A, 100%
• Duty Cycle MIG Spool Gun: 175 A, 20%; 130 A, 60%; 110 A, 100%
• Max Open-Circuit Voltage: 46 V
• Material Thickness Range AC/DC TIG: 120 V: 20 gauge-1/8 in.; 240 V: 20 gauge-1/4 in.
• Material Thickness Range DC Stick: 120 V: 16 gauge-3/16 in.; 240 V: 16 gauge-3/8 in.
• Material Thickness Range MIG Spool Gun: 120 V: 1/8 in.; 240 V: 1/8-3/8 in.
• Operating Temperature Range: 14 to 104 F ( 10 to 40 C)
• Storage Temperature Range: 22 to 149 F ( 30 to 65 C)
• Ingress Rating: IP21S
• Compliance: CSA Certified to Canadian and U.S. Standards
• Weight: 54 lb. (24.5 kg)
• Height: 17.5 in.
• Width: 11.25 in.
• Length: 21.5 in.
• Current Type: AC / DC
• Input Phase: 1-Phase
• Input Frequency: 50/60 Hz
• Metal Type: Aluminum, Mild Steel, Stainless Steel, Steel
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Material Thickness Display: Aluminum 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm); Mild Steel 16 ga. - 3/8 in. (Stick)
• Series: Syncrowave
• Country of Origin: United States
