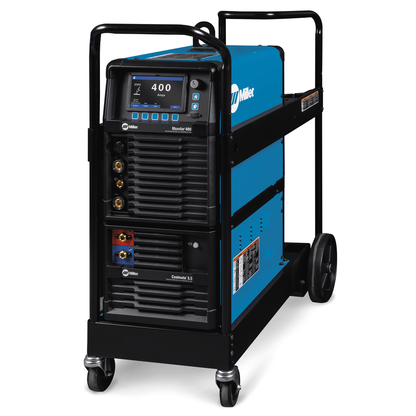

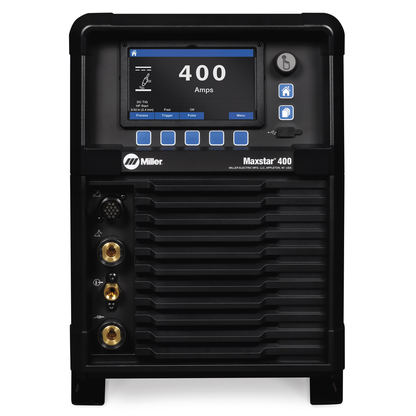

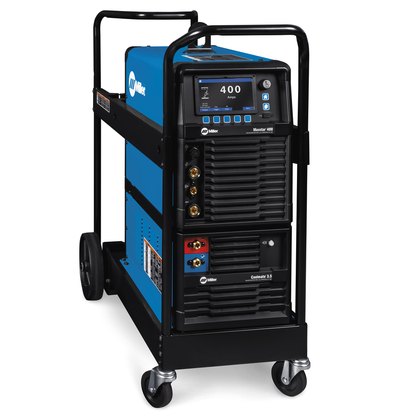

Miller Electric Maxstar 400 208-600 V, TIGRunner - 907873001

The Maxstar 400 Series is a powerful, compact power source capable of welding up to 5/8 in. material. High speed pulse control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

Features

• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.
• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Blue Lightning™: High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• DC TIG Features: Exceptionally smooth and precise arc for welding exotic materials. High-speed DC TIG pulse controls - Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage.

• Input Voltage: 208 V;220/230/240 V;380/400 V;460/480 V;575/600 V, 50/60 Hz
• Amperage Range: 3 A - 400 A
• Duty Cycle: 400 A, 20%; 300 A, 60%; 250 A, 100%
• Max Material Thickness: Steel 0.012 in. (0.3 mm) - 5/8 in. (15.9 mm)
• Max Open Circuit Voltage: 75 VDC
• Pulse Frequency: Up to 5000 pps
• Input Phase: 1- and 3-Phase
• Current Type: DC
• Weld Output: CC
• Generator Requirement: 20 kVA
• TIG Thickness Range: 0.012 5/8 in. (0.3 15.9 mm)
• Stick Electrode Max Diameter: 1/4 in (6.4 mm)
• Maximum Carbon Arc Gouging: 1/4 in (6.4 mm)
• Tungsten Sizes: .020 to 3/16 in (0.05 to 4.8 mm)
• Weight: 246 lb
• Height: 43.1 in
• Length: 41.6 in
• Width: 23.1 in
• Material: Mild Steel; Stainless Steel; Steel; Specialty Metals
• Series: Maxstar
• Country of Origin: United States
• Compliance: CSA Certified, CE IEC 60974
• USB Port: Front panel for updates and backup
• Program Memory: Up to 99 custom weld programs
