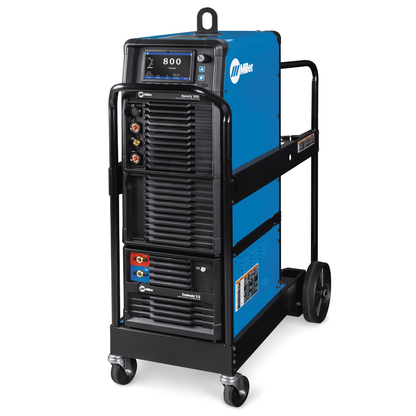

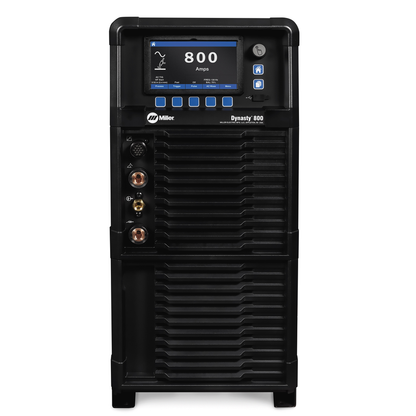

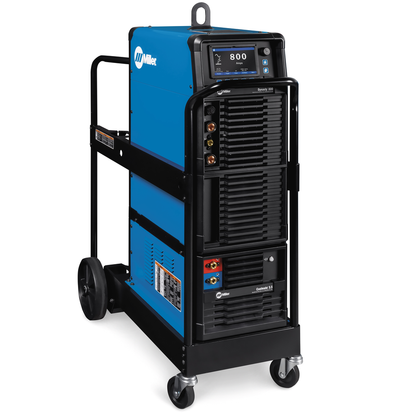

Miller Electric Dynasty 800 208-600 V, TIGRunner - 907859001

The Dynasty 800 Series is a powerful, compact power source capable of welding up to 1 in. aluminum. Total arc control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

Features

• AC Waveforms: Advance Squarewave provides a fast freezing puddle, deep penetration, and fast travel speeds. Soft Squarewave is used for a soft buttery arc with maximum puddle control and good wetting action. Sine wave is for customers that like a traditional arc. It is quiet with good wetting. Triangular wave reduces the heat input and is good on thin aluminum. It provides fast travel speeds.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Blue Lightning™: High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.
• Cooler Power Supply (CPS): An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 3.5. The power switch on the machine also activates the receptacle to help prevent torch failure.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• AC and DC TIG Features: AC TIG Features Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode. Extended AC balance controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum. AC frequency (20–400 hz) controls the width of the arc cone and the force of the arc. DC TIG Features Exceptionally smooth and precise arc for welding exotic materials. High-speed DC TIG pulse controls - Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.

• Input Voltage: 208 V; 220-600 V
• Amperage Range: 5 A - 800 A
• Max Open Circuit Voltage: 75 VDC
• Height: 52.6 in (1337 mm) with TIGRunner
• Width: 23.1 in (587 mm) with TIGRunner
• Length: 41.6 in (1057 mm) with TIGRunner
• Weight: 201 lb (91 kg)
• Material Thickness Range: 0.020-1 in (0.5-25.4 mm) Aluminum and Steel
• Phase: Single-phase or Three-phase
• Frequency: 50/60 Hz
• Weld Output: CC
• Current Type: AC / DC
• Weldable Metals: Aluminum, Specialty Metals, Stainless Steel, Steel
• Metal Type: Aluminum, Steel
• Max Stick Electrode Diameter: 1/4 in (6.4 mm)
• Max Carbon Arc Gouging Diameter: 3/8 in (9.5 mm)
• Generator Requirement: 50 kVA
• AC Frequency Range: 20-400 Hz
• AC Balance Range: 30-99% EN
• Pulse Frequency DC: 0.1-5000 pps
• Pulse Frequency AC: 0.1-500 pps
• Pulse Peak Time Range: 5-95%
• Pulse Background Amps Range: 5-95%
• Tungsten Sizes: .020, .040, 1/16, 3/32, 1/8, 5/32, 3/16 in
• Waveshapes AC: Advanced Square, Soft Square, Sine, Triangular
• Waveshape DC Pulse: Square, Sine, Triangular
• Compliance: CSA Certified to US and Canadian standards; CE IEC 60974 compliant
• Country of Origin: United States
• Series: Dynasty
• Rated Output: 600 A at 44 V, 60% duty cycle
• Max Output: 800 A at 40 V, 20% duty cycle
