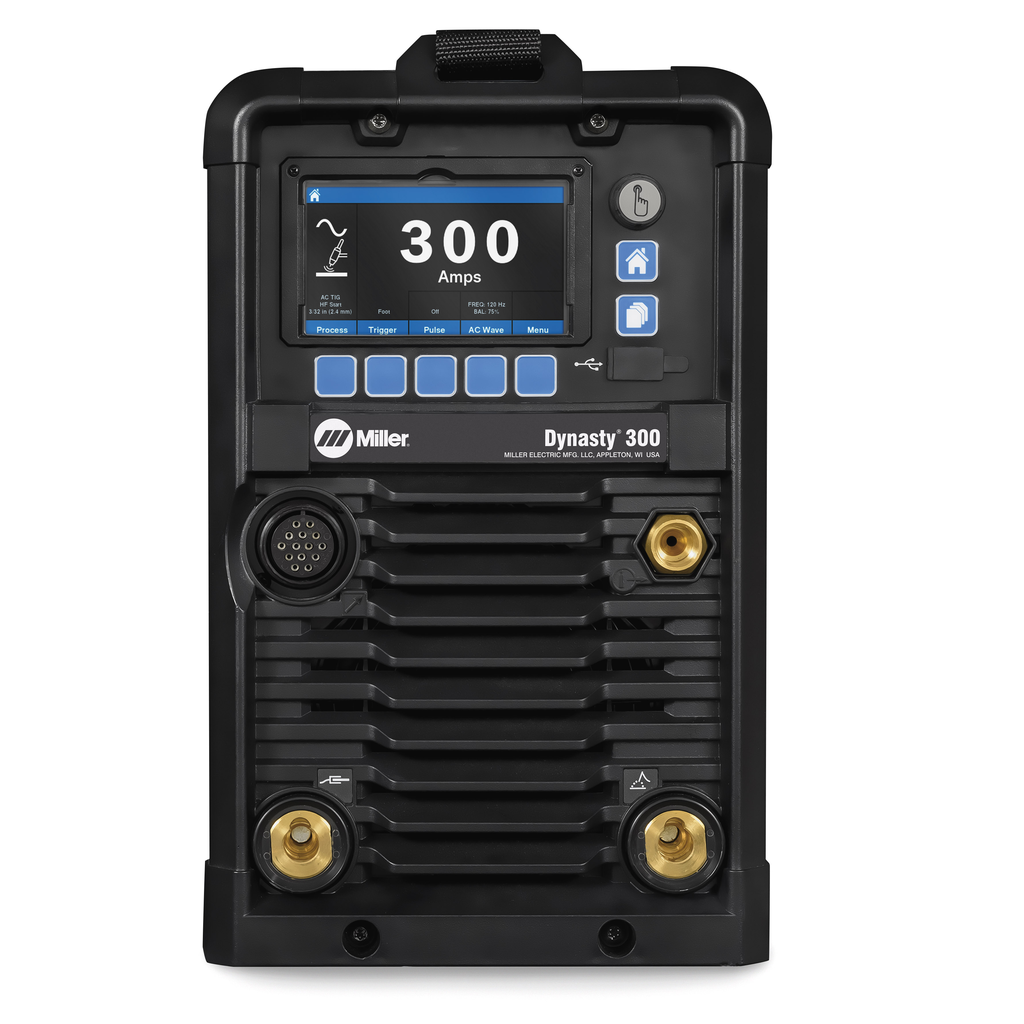

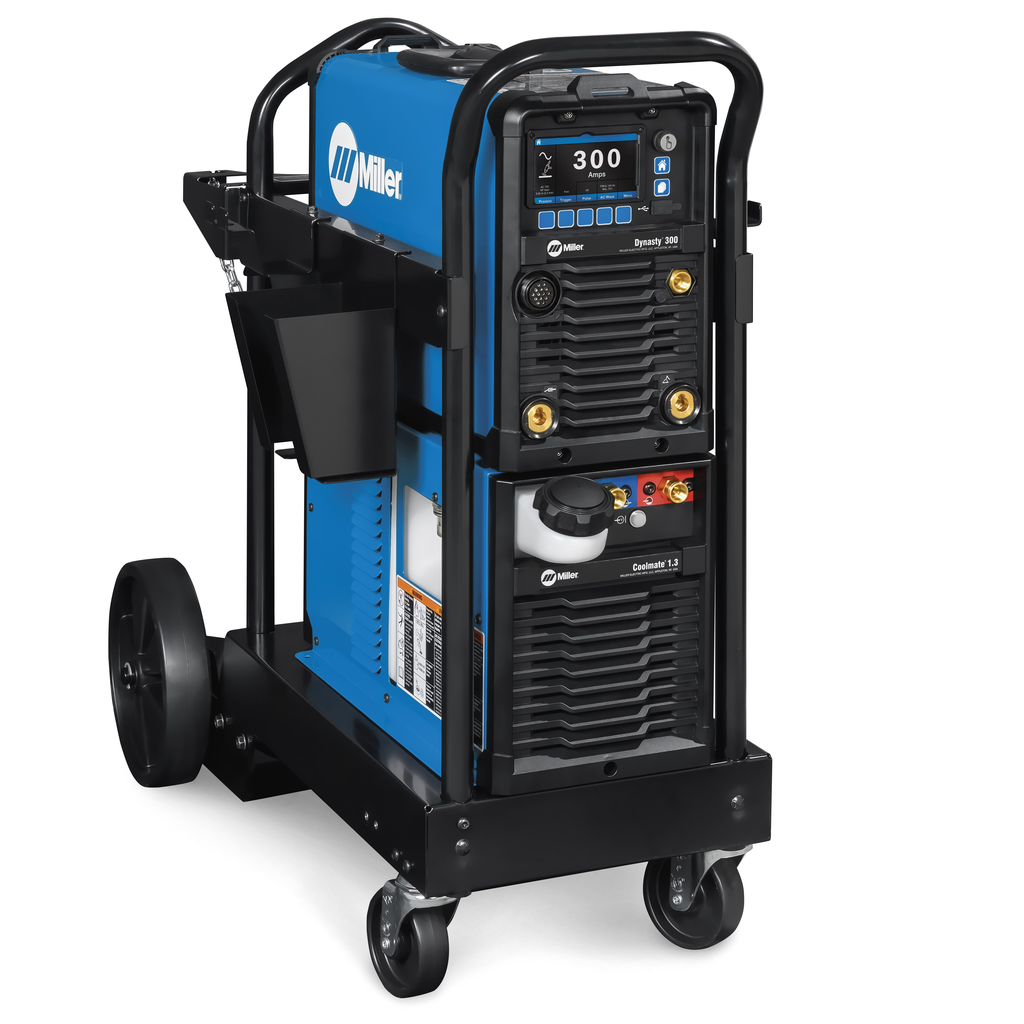

Miller Electric Dynasty 300 208-600 V, TIGRunner - 907818002

The Dynasty 300 Series is a powerful combination of capability and portability. It can weld up to 3/8 in. thick material. The AC/DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.

Features

• AC Frequency Control: Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.

• Amperage Range: 1 A - 300 A
• Input Voltage: 208 V;220/230/240 V;380/400 V;460/480 V;575/600 V
• Input Phase: 1- and 3-Phase
• Max Open Circuit Voltage: 60 VDC
• Weld Output: CC
• Material Thickness Capability: Aluminum 0.012 in. (0.3 mm) - 3/8 in. (9.5 mm); Steel 0.004 in. (0.1 mm) - 3/8 in. (9.5 mm)
• Weldable Metals: Aluminum; Specialty Metals; Stainless Steel; Steel
• Current Type: AC / DC
• Input Hz: 50/60 Hz
• Height: 34.75 in
• Length: 39.5 in
• Width: 8.5 in
• Weight: 147 lb
• Series: Dynasty
• Country of Origin: United States
