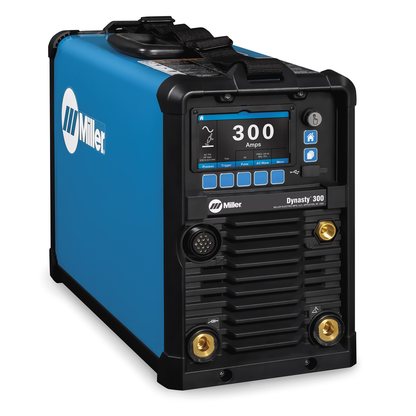

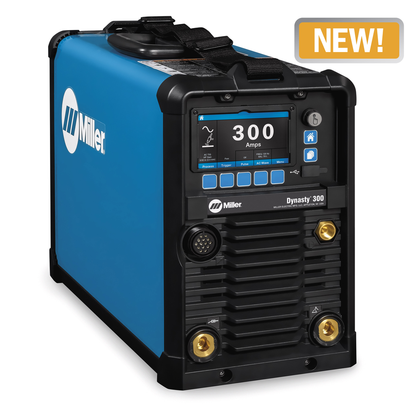

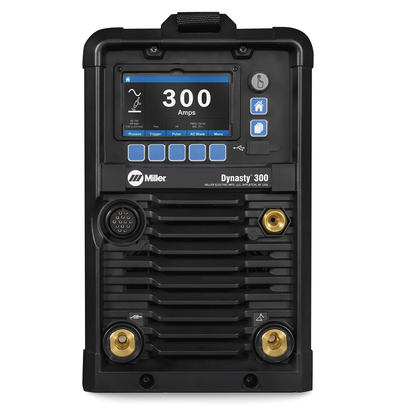

Miller Electric Dynasty 300 208-600 V, CPS - 907818

The Dynasty 300 Series is a powerful combination of capability and portability. Weighing only 55 pounds, it can weld up to 3/8 in. thick material. The AC/DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.

Includes

• Dynasty 300
• (2) 50 mm Dinse style connectors
• 8 ft (2.4 m) primary cord
• Adjustable Shoulder Strap

Features

• Allows easy naming, saving and recalling of favorite weld settings.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).

• Voltage: 208-600 V
• Amperage Range: 1 A - 300 A
• Input Phase: 1- and 3-Phase
• Current Type: AC / DC
• Max Open Circuit Voltage: 60 VDC
• Width: 8.5 in.
• Length: 21.88 in.
• Height: 13.88 in.
• Weight: 55 lb
• Rated Carbon Diameter: 3/16 in. (4.8 mm)
• Maximum Material Thickness: 3/8 in. (9.5 mm)
• Display Min Thickness - Aluminum: 0.012 in. (0.3 mm)
• Display Min Thickness - Steel: 0.004 in. (0.1 mm)
• Weldable Metals: Aluminum, Specialty Metals, Stainless Steel, Steel
• Material: Aluminum, Stainless Steel, Steel
• Weld Output: CC
• Input Voltage: 208 V, 220/230/240 V, 380/400 V, 460/480 V, 575/600 V
• Input Hz: 50/60 Hz
• Country of Origin: United States
• Connector Type: 50 mm Dinse
