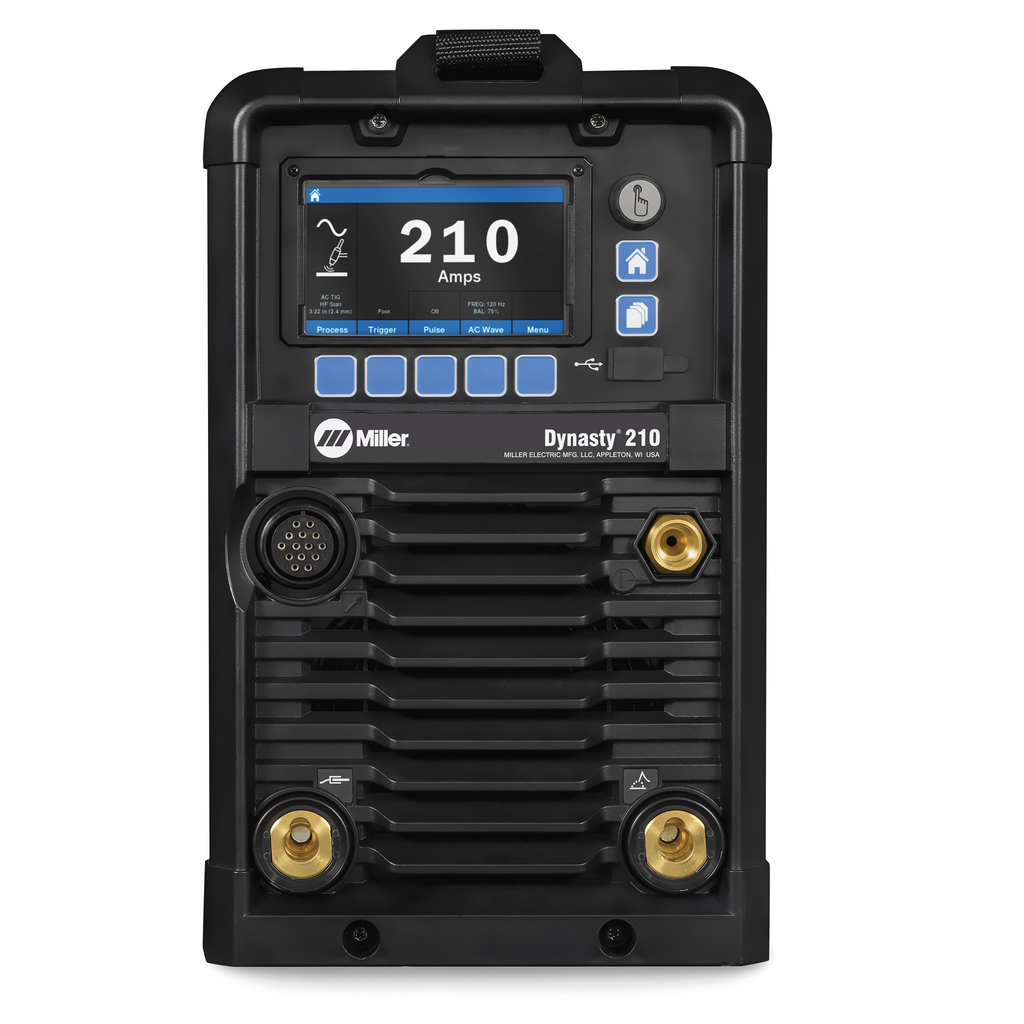

Miller Electric Dynasty 210 120-480 V, TIGRunner - 907816002

The Dynasty 210 Series combines inverter technology and advanced features. It can weld up to 1/4 in. thick material and offers the most flexible AC/DC TIG/Stick power supply in the welding industry.

Features

• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.
• AC Frequency Control: Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.

• Amperage Range: 1 A - 210 A
• Current Type: AC / DC
• Input Voltage: 110-120 V; 208 V; 220-240 V; 380-400 V; 460-480 V
• Input Phase: Single-phase or Three-phase
• Max Open Circuit Voltage: 80 VDC
• Duty Cycle TIG: 210 A at 60%
• Duty Cycle Stick: 160 A at 60%
• AC Frequency: 50/60 Hz
• AC Frequency Control Range: 50-150 Hz
• Rated Output: 210 A at 18.4 V, 60% duty cycle
• Material Thickness Capacity: Aluminum 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm); Steel 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm)
• Stick Electrode Max Diameter: 3/16 in (6010), 5/32 in (7018, 7024)
• Dimensions: 39.5 in L x 19.5 in W x 34.75 in H
• Weight: 142 lb
• Material: Aluminum, Specialty Metals, Stainless Steel, Steel
• Weld Output: CC
• Series: Dynasty
• Country of Origin: United States
• IP Rating: IP23 (outdoor use sheltered)
• Compliance: CSA Certified, CE (select models)
• Operating Temperature Range: 14 to 104 F (-10 to 40 C)
• Storage Temperature Range: -22 to 149 F (-30 to 65 C)
• TIG Pulse Frequency Range: 0.1-500 pulses per second
• AC Waveforms: Advanced Square, Soft Square, Sine, Triangular
• DC Pulse Waveforms: Square, Sine, Triangular
• Program Memory Capacity: Up to 99 custom weld programs
• USB: Front panel port for software updates and program transfer

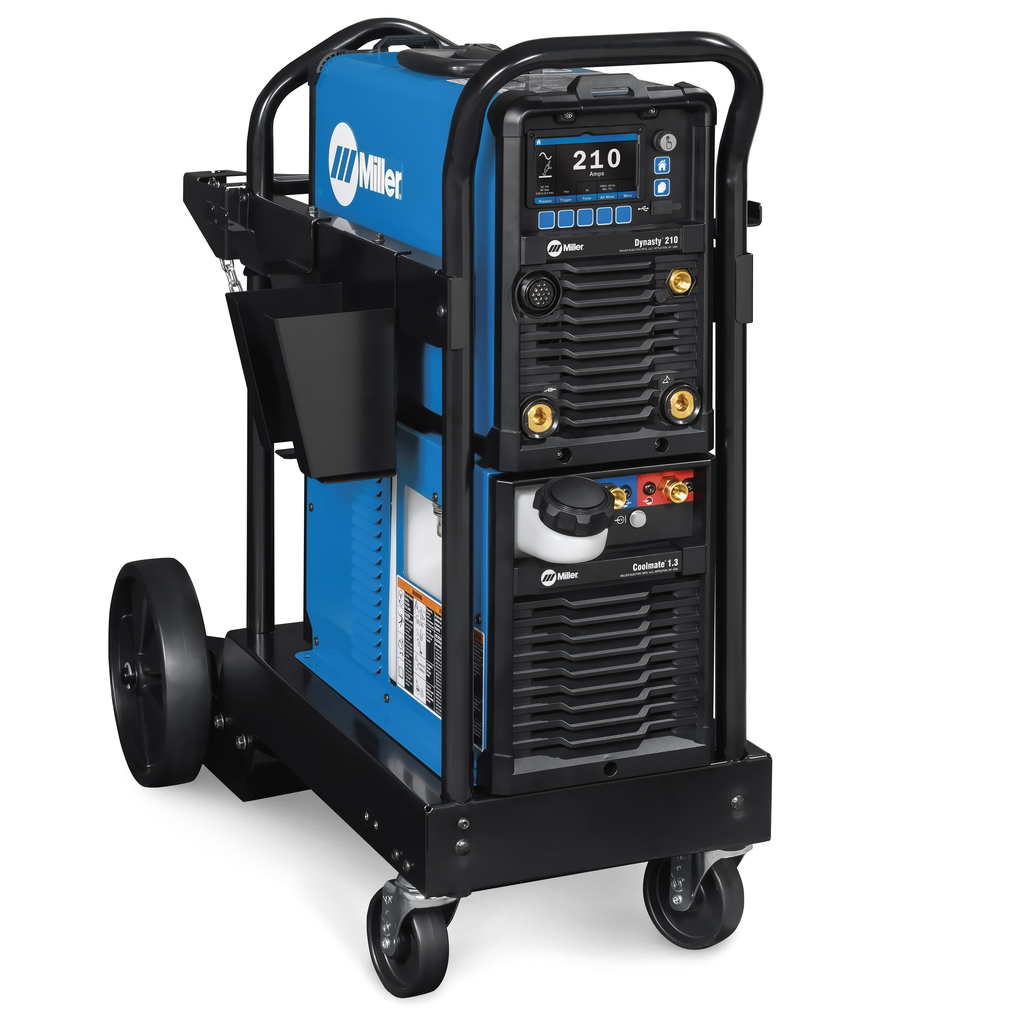

• Cooler Compatibility: CoolmateTM 1.3 (on CPS models)
• Generator Requirement: 9 kW
