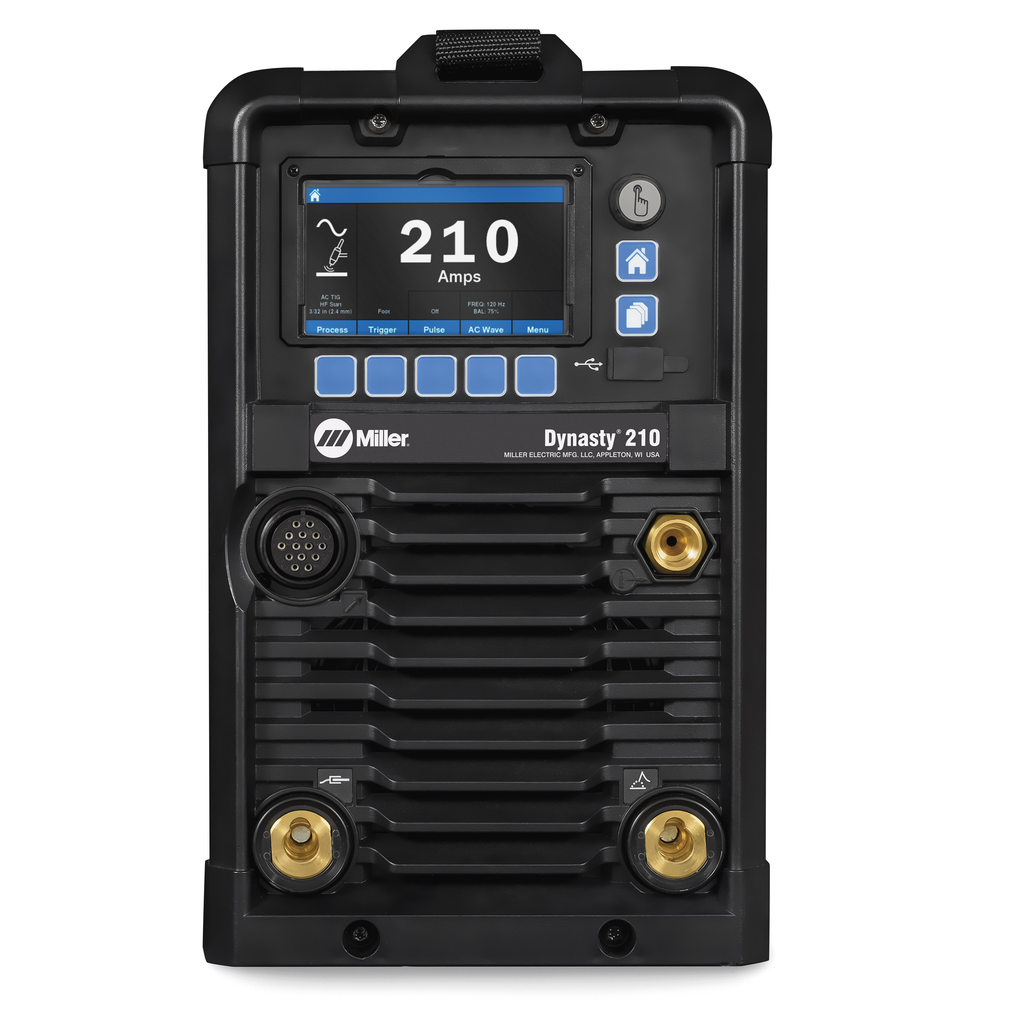

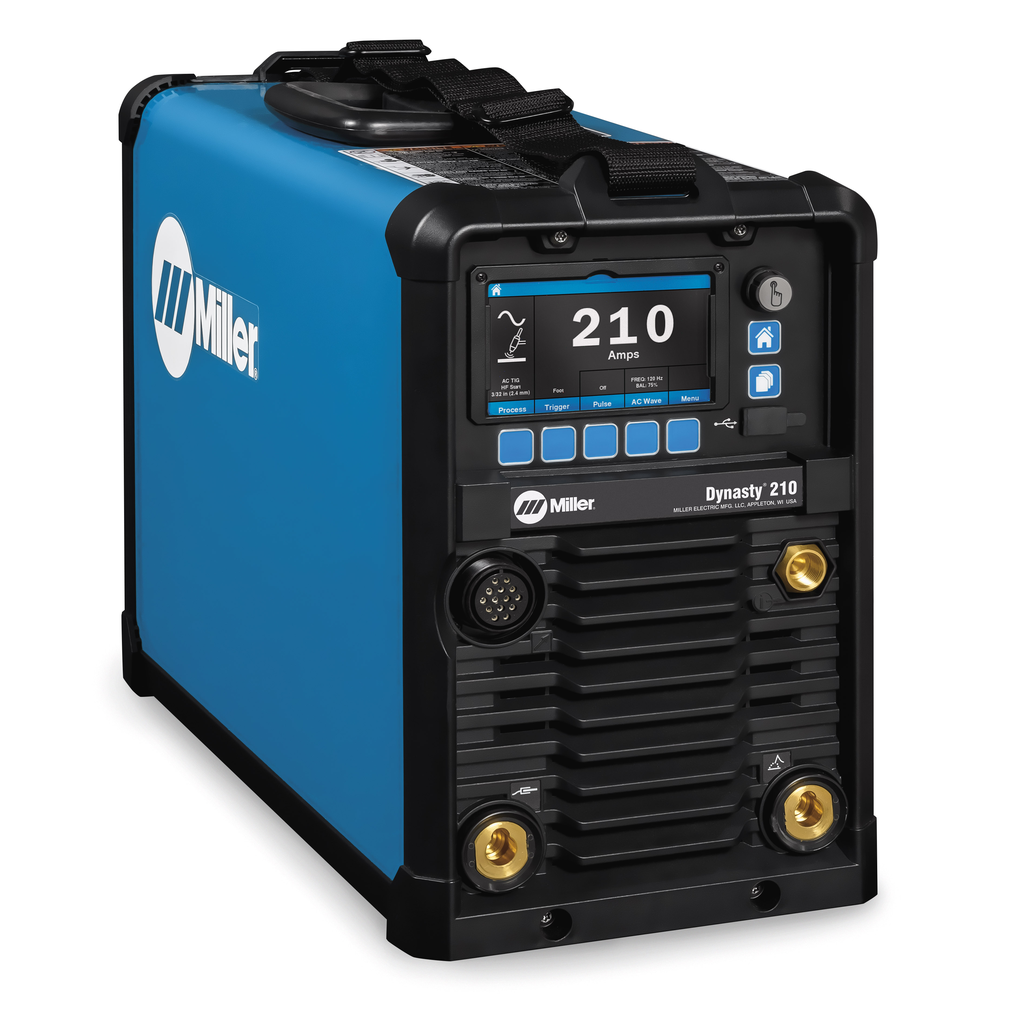

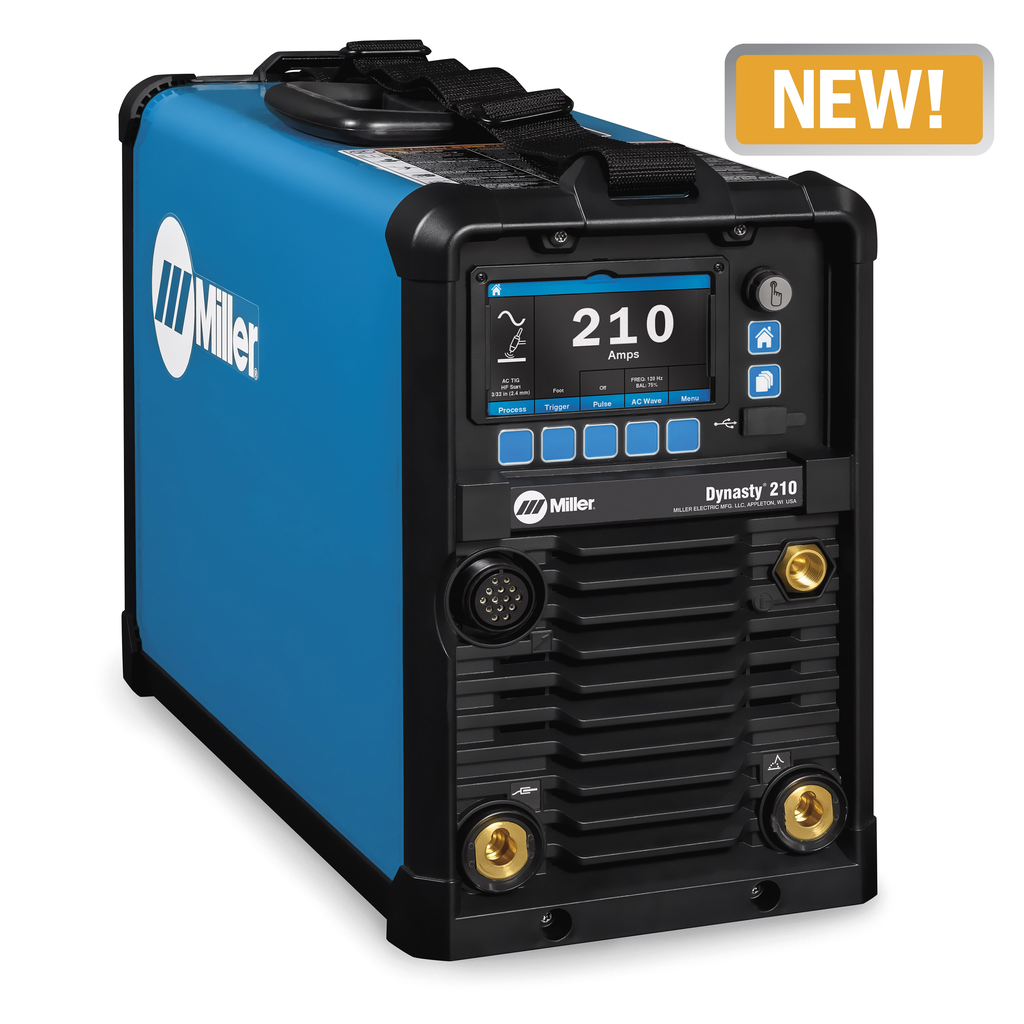

Miller Electric Dynasty 210 120-480 V, CPS - 907816001

The Dynasty 210 Series combines inverter technology and advanced features. Weighing only 50 pounds, it can weld up to 1/4 in. thick material and offers the most flexible AC/DC TIG/Stick power supply in the welding industry.

Features

• Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Allows easy naming, saving and recalling of favorite weld settings.
• Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

Includes

• Dynasty® 210
• 8 ft (2.4 m) primary cord
• Adjustable Shoulder Strap
• (2) 50 mm Dinse style connectors

• Input Voltage: 110/115/120 V, 208 V, 220/230/240 V, 380/400 V, 460/480 V
• Input Phase: 1- and 3-Phase
• Current Type: AC / DC
• Amperage Range: 1 A - 210 A
• Max Open Circuit Voltage: 80 VDC
• Material Thickness Capacity: 0.25 in.
• Display Min Thickness - Steel: 0.002 in. (0.05 mm)
• Display Max Thickness - Steel: 0.25 in. (6.4 mm)
• Display Min Thickness - Aluminum: 0.012 in. (0.3 mm)
• Display Max Thickness - Aluminum: 0.25 in. (6.4 mm)
• Material: Aluminum, Steel, Specialty Metals, Stainless Steel
• Weight: 50 lb
• Length: 21.88 in.
• Width: 8.5 in.
• Height: 13.88 in.
• Connector Type: 50 mm Dinse style
• Country of Origin: United States
