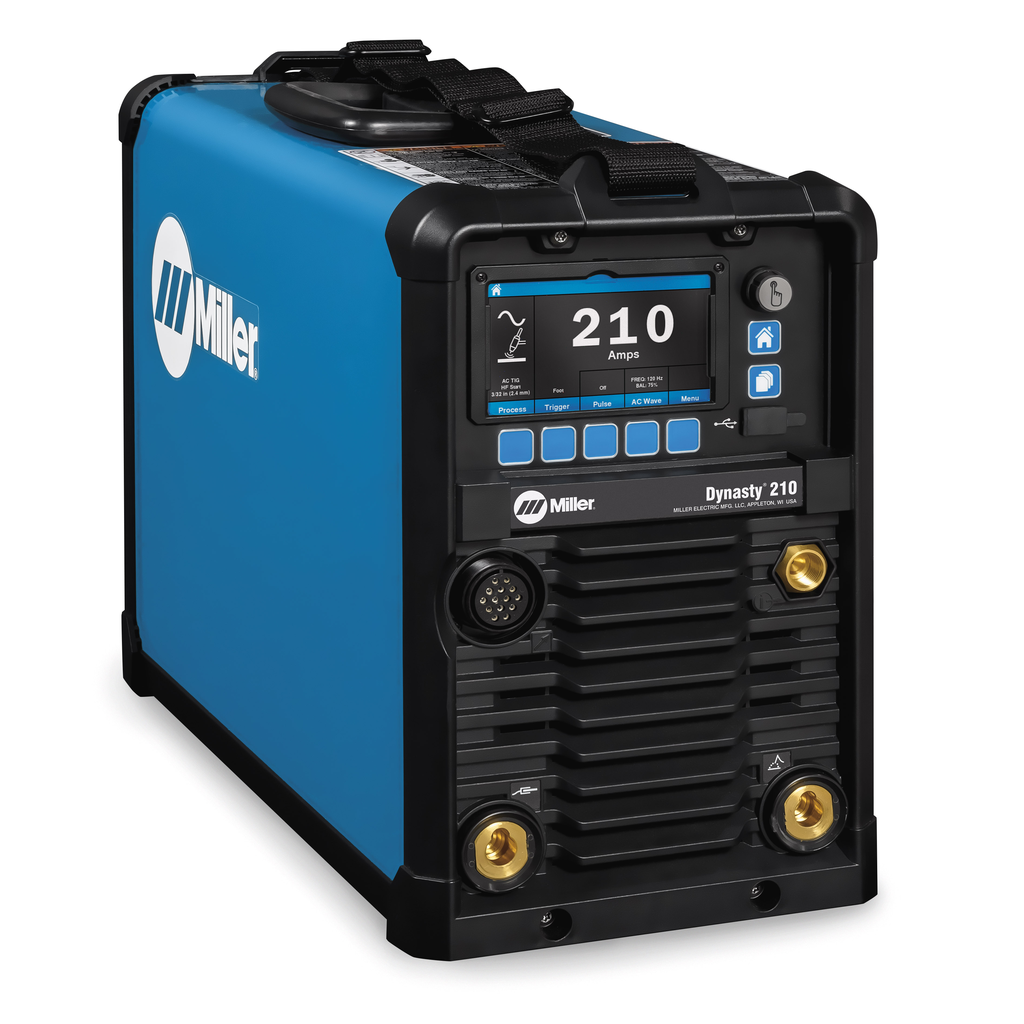

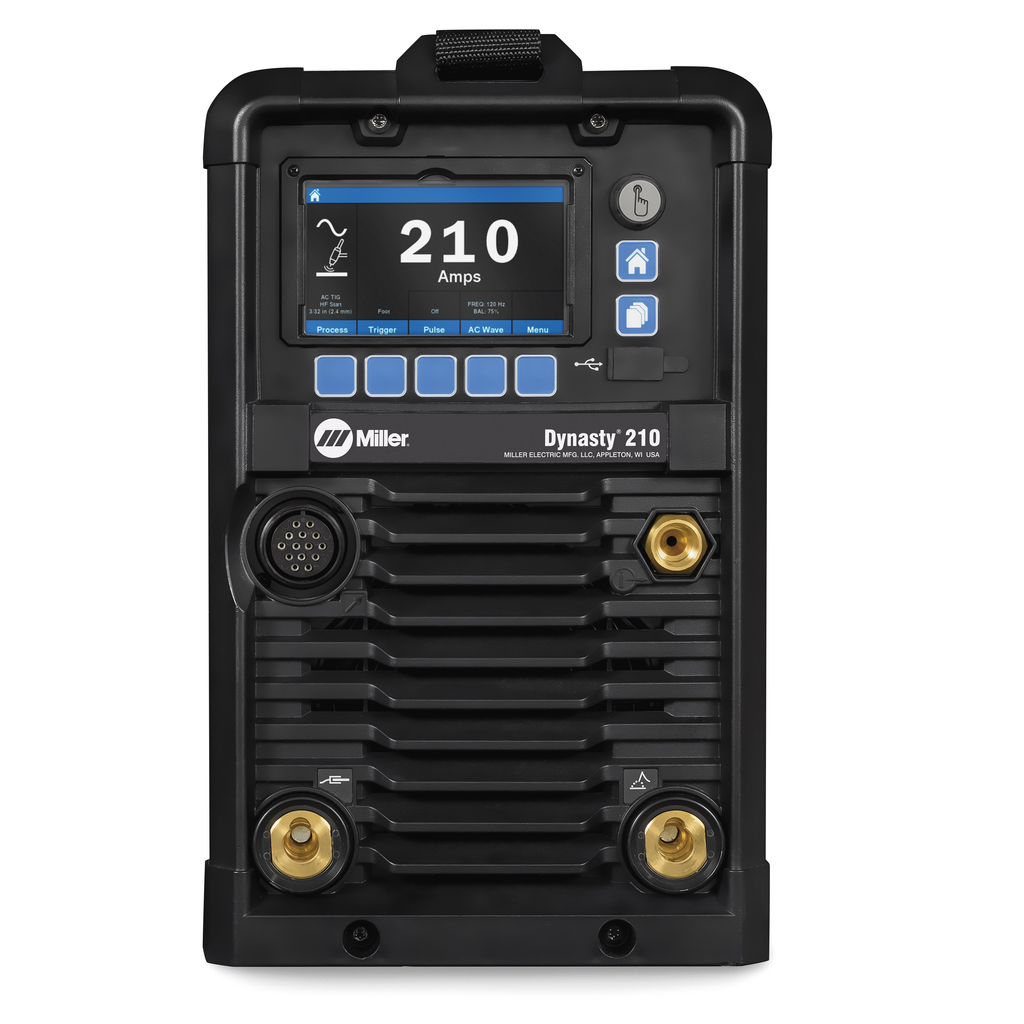

Miller Electric Dynasty 210 120-480 V - 907816

The Dynasty 210 Series combines inverter technology and advanced features. Weighing only 47 pounds, it can weld up to 1/4 in. thick material and offers the most flexible AC/DC TIG/Stick power supply in the welding industry.

Features

• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• AC Frequency Control: Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.

• Input Voltage: 110-480 V, single-phase or three-phase
• Amperage Range: 1-210 A
• Max Material Thickness: 1/4 in. (6.4 mm)
• Current Type: AC / DC
• Input Frequency: 50/60 Hz
• Dimensions (HxWxD): 13.88 in x 8.5 in x 21.88 in (352 mm x 216 mm x 555 mm)
• Weight: 47 lb (21.3 kg)
• Max Open Circuit Voltage: 80 VDC
• Weldable Metals: Aluminum; Specialty Metals; Stainless Steel; Steel
• Material Thickness Display: Aluminum 0.012-0.25 in. (0.3-6.4 mm); Steel 0.02-0.25 in. (0.5-6.4 mm)
• Input Phase: 1- and 3-Phase
• Series: Dynasty
• Country of Origin: United States
