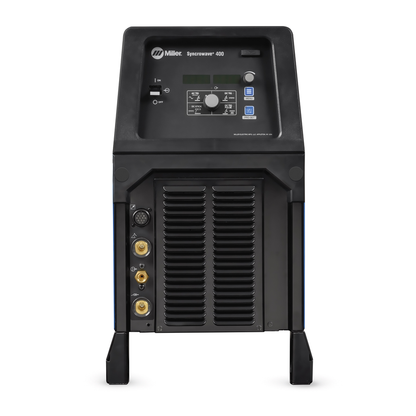

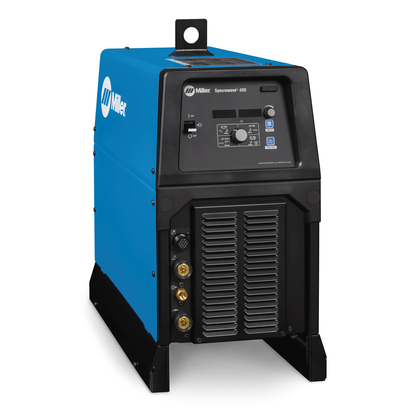

Miller Electric Syncrowave 400 - Machine Only - 907783

For fabricators who need more TIG welding productivity and lower operating costs, new Miller Syncrowave machines are the energy efficient TIG welding power sources that make it easier for any welder to get more work done.

Features

• AC Frequency Control: Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• Better Arc Performance: Deliver more stable arcs and better arc-starting characteristics, making it easy for any welder to get more work done and do better work.
• Smaller Footprint: Smaller, lighter machines are easier to move around and improve workplace conditions.
• Simple to install: Accepts either single- or three-phase input power.
• Easy to use: Intuitive user interface is simple to understand making it easy to adjust parameters. This means less time training new employees so more work gets done.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Energy efficient: Save up to 28 percent on energy costs versus outdated welding equipment.
• Auto-Link: Circuit automatically links the power source to primary voltage being applied (208/240/480 V, single- or three-phase).

• Input Voltage: 208 V, 220/230/240 V, 460/480 V; single- or three-phase
• Amperage Range: 5 A - 400 A
• Rated Output: 400 A at 26 V (30% duty cycle), 300 A at 22 V (60% duty cycle)
• Max Open Circuit Voltage: 70 VDC
• Input Frequency: 50/60 Hz
• Dimensions: 29.375 in H x 15 in W x 24.625 in L
• Weight: 131 lb
• Input Phase: 3-Phase
• Current Type: AC / DC
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Compliance: Certified by Canadian Standards Association (CSA)
• Country of Origin: United States
• Series: Syncrowave
