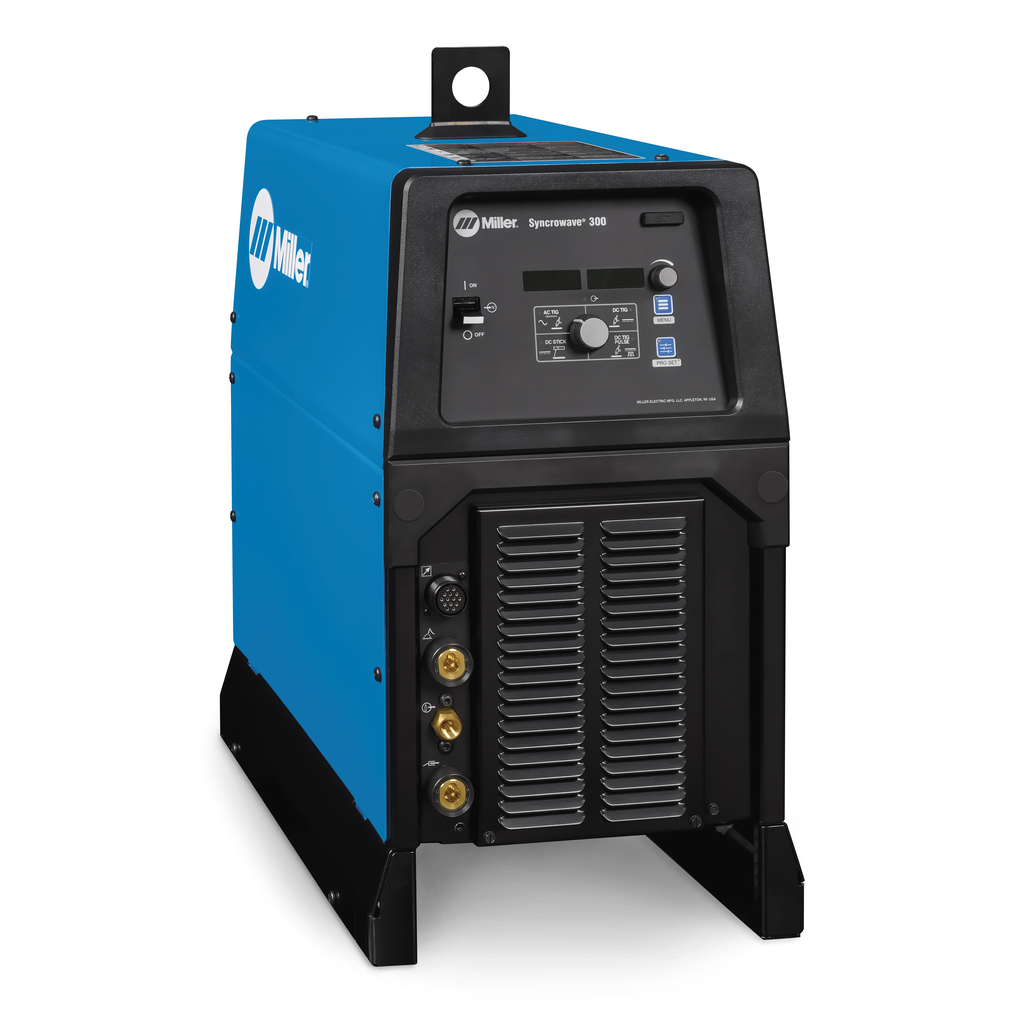

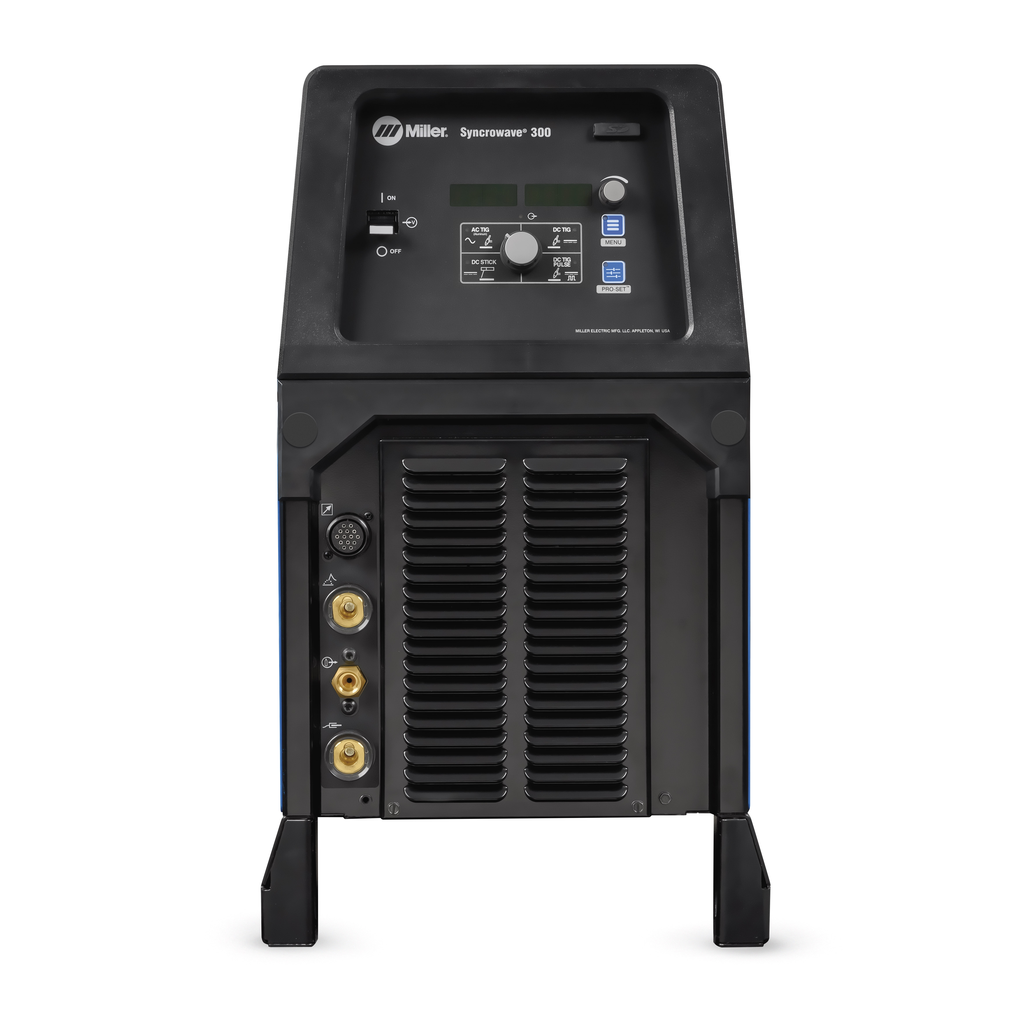

Miller Electric Syncrowave 300, Machine Only - 907782

For fabricators who need more TIG welding productivity and lower operating costs, Miller Syncrowave machines are the energy efficient TIG welding power sources that make it easier for any welder to get more work done.

Features

• Better Arc Performance: Deliver more stable arcs and better arc-starting characteristics, making it easy for any welder to get more work done and do better work.
• Energy efficient: Save up to 33 percent on energy costs versus outdated welding equipment.
• Simple to install: Accepts either single- or three-phase input power.
• Auto-Link: Circuit automatically links the power source to primary voltage being applied (208/240/480 V, single- or three-phase).
• Easy to use: Intuitive user interface is simple to understand making it easy to adjust parameters. This means less time training new employees so more work gets done.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• AC Frequency Control: Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• Smaller Footprint: Smaller, lighter machines are easier to move around and improve workplace conditions.

• Amperage Range: 5 A - 300 A
• Max Open Circuit Voltage: 60 VDC
• Input Voltage: 208 V; 220/230/240 V; 460/480 V
• Input Phase: 1- and 3-Phase
• Input Frequency: 50/60 Hz
• Rated Output: 300 A at 22 V, 30% duty cycle; 210 A at 18 V, 60% duty cycle
• Material Thickness Display: Aluminum 0.015 in. - 3/8 in.; Steel 0.012 in. - 1/2 in.
• CACA Thickness: 3/16 in
• Weld Output: CC
• Weldable Metals: Aluminum; Stainless Steel; Steel
• Metal Type: Steel; Aluminum
• Power Source Dimensions (H x W x D): 29.4 in x 15 in x 24.6 in (746 mm x 381 mm x 625 mm)
• Weight: 101 lb (45.8 kg)
• Current Type: AC / DC
• Series: SyncrowaveAE
• Country of Origin: United States
• Compliance: Certified by Canadian Standards Association to Canadian and U.S. Standards
• AC Frequency Control Range: 50 150 Hz
