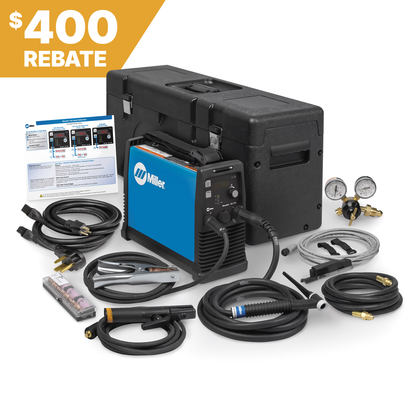

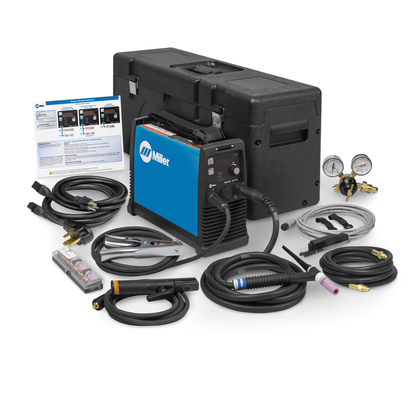

Miller Electric Maxstar 161 STL 120-240 V, X-Case, Fingertip Contractor Package - 907710002

The Maxstar 161 Series provides maximum portability and performance in the most compact Miller TIG/Stick packages. Weighing only 13 pounds, this offers dependability and performance all in one machine.

Features

• Conserve Your Electrodes: With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.
• Low Power Draw: By utilizing an inverter-based power source in the Maxstar® 161, superior arc starts and excellent weld puddle control are provided in both the TIG and Stick settings - all in a small, light-weight package.
• Compact Design Allows for Great Portability: Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based machine can be taken from location to location.
• No Need For A Gas Valve On Your TIG Torch: With a built-in gas solenoid, the Maxstar® 161 eliminates the need for a bulky TIG torch with a gas valve
• No More "Sticky" Electrodes: With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes.
• 5 Amp TIG Capability: Allows users to weld thinner materials than other machines in this category.
• Use on 120 AND 240 Volt Input Power: Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles.
• 6010 Stick Electrode Capability: Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
• Easy-to-Use: 1. Turn power on. 2. Select process: High-Frequency TIG, Lift-Arc™ TIG, Stick, or 6010 Stick. Set amperage. 3. Then weld! It’s as easy as 1, 2, 3.

• Input Voltage: 110/115/120 V; 220/230/240 V
• Amperage Range: 5 A - 160 A
• Max Open Circuit Voltage: 48 VDC
• Current Type: DC
• Input Hz: 50/60 Hz
• Input Phase: 1-Phase
• Weld Output: CC
• Material Thickness Display: Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm)
• Metal Type: Steel
• Weldable Metals: Stainless Steel; Steel

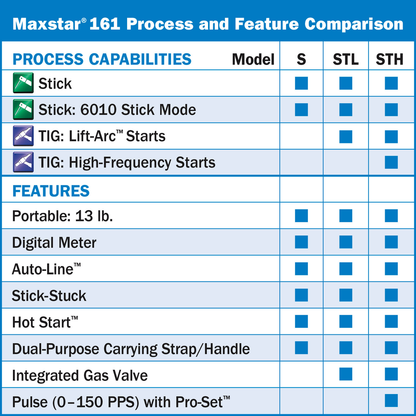

• Process Capability: Stick (SMAW), Lift-Arc TIG, High-frequency TIG, Pulsed TIG (STH model only)
• Duty Cycle: 130 A at 15.2 VDC, 30% (TIG 120 V); 160 A at 16.4 VDC, 20% (TIG 240 V)
• Power Source Type: Inverter-based
• Built-in Gas Solenoid: Yes
• Stick Electrode Capability: 6010 Stick Electrode
• Net Weight: 13 lb (5.9 kg)
• Dimensions: H: 10.3 in (262 mm), W: 5.6 in (142 mm), D: 13.5 in (343 mm)
• Series: Maxstar
• Country of Origin: United States
