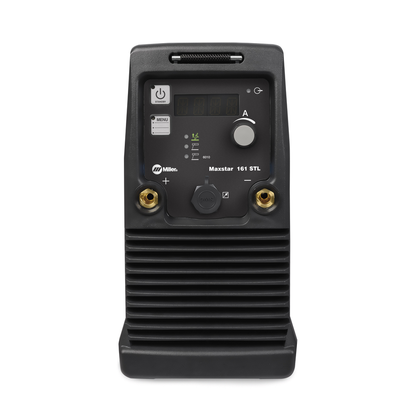

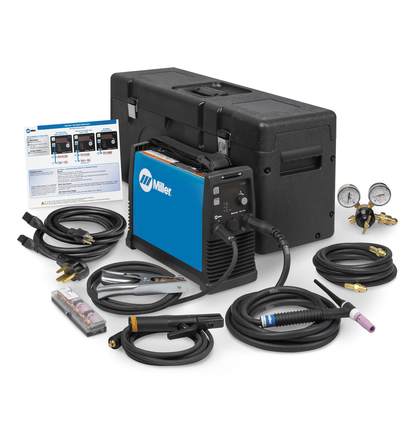

Miller Electric Maxstar 161 STL 120-240 V, X-Case, Contractor Package - 907710001

The Maxstar 161 Series provides maximum portability and performance in the most compact Miller TIG/Stick packages. Weighing only 13 pounds, this offers dependability and performance all in one machine.

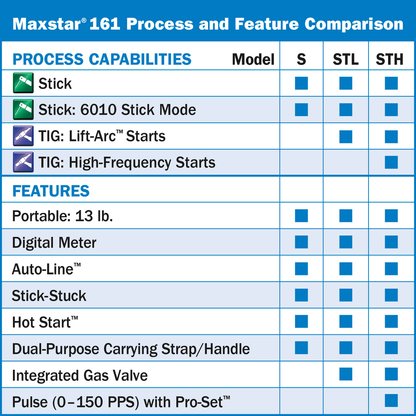

Features

• Conserve Your Electrodes: With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.
• Compact Design Allows for Great Portability: Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based machine can be taken from location to location.
• Use on 120 AND 240 Volt Input Power: Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles.
• Easy-to-Use: 1. Turn power on. 2. Select process: High-Frequency TIG, Lift-Arc™ TIG, Stick, or 6010 Stick. Set amperage. 3. Then weld! It’s as easy as 1, 2, 3.
• No Need For A Gas Valve On Your TIG Torch: With a built-in gas solenoid, the Maxstar® 161 eliminates the need for a bulky TIG torch with a gas valve
• Low Power Draw: By utilizing an inverter-based power source in the Maxstar® 161, superior arc starts and excellent weld puddle control are provided in both the TIG and Stick settings - all in a small, light-weight package.
• No More "Sticky" Electrodes: With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes.
• 6010 Stick Electrode Capability: Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
• 5 Amp TIG Capability: Allows users to weld thinner materials than other machines in this category.

• Input Voltage: 110/115/120 V; 220/230/240 V, 1-Phase, 50/60 Hz
• Amperage Range: 5 A - 160 A (DC TIG and Stick)
• Duty Cycle: 130 A at 15.2 VDC, 30% (TIG 120 V); 160 A at 16.4 VDC, 20% (TIG 240 V); 90 A at 23.6 VDC, 30% (Stick 120 V); 160 A at 26.4 VDC, 20% (Stick 240 V)
• Max Open Circuit Voltage: 48 VDC (12-16 VDC for low OCV stick)
• Weld Output: CC
• Current Type: DC
• Material Thickness Display: Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm)
• Dimensions: H: 10.3 in (262 mm) x W: 5.6 in (142 mm) x D: 13.5 in (343 mm)
• Net Weight: 13 lb (5.9 kg)
• Weldable Metals: Stainless Steel, Steel
• Metal Type: Steel
• Series: Maxstar
• Country of Origin: United States
• Compliance: CSA Certified to Canadian and U.S. standards
