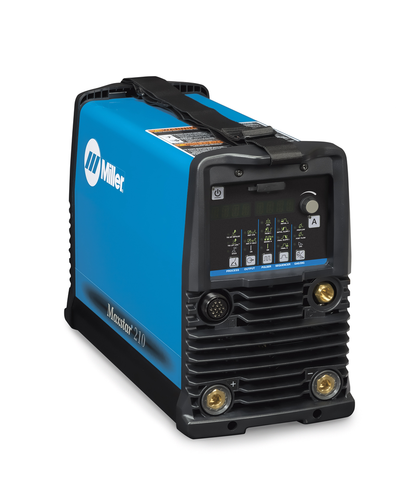

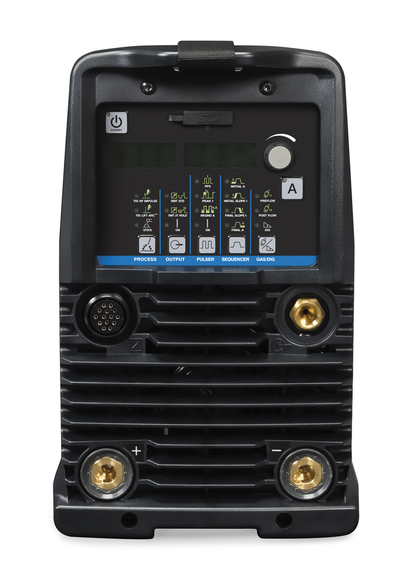

Miller Electric Maxstar 210 DX 120-480 V - 907684

The perfect combination of sophisticated inverter technology and advanced features. Weighing only 38 pounds, the Maxstar 210 is an extremely versatile DC TIG/Stick power supply.

Features

• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Upgradeable and Expandable: Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.
• Hot Start™ Technology: Adaptive control provides positive arc starts without sticking.
• Base and Deluxe Models Available: Base model provides essential TIG and Stick functions and provides operator-friendly, menu-driven features. The DX model adds extended ranges to sequencer and full trigger options, preflow and pulser functions.
• Blue Lightning™: High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.

• Input Voltage: 110/115/120 V; 208 V; 220/230/240 V; 380/400 V; 460/480 V, single- and three-phase
• Input Frequency: 50/60 Hz
• Amperage Range: 1 A - 210 A DC
• Rated Output: 210 A at 18.4 V, 60% duty cycle
• Max Open Circuit Voltage: 80 VDC
• Current Type: DC
• Material Thickness Range: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) Steel
• Dimensions: 13.6 in H 8.6 in W 19.5 in L (346 mm 219 mm 495 mm)
• Weight: 38 lb (17.2 kg)
• Weld Output: Constant Current (CC)
• Weldable Metals: Specialty Metals, Stainless Steel, Steel
• Series: Maxstar
• Country of Origin: United States
• Operating Temperature Range: 14 to 104 F (-10 to 40 C)
• Storage Temperature Range: -22 to 149 F (-30 to 65 C)
• Compliance: CSA Certified; CE models conform to IEC 60974
