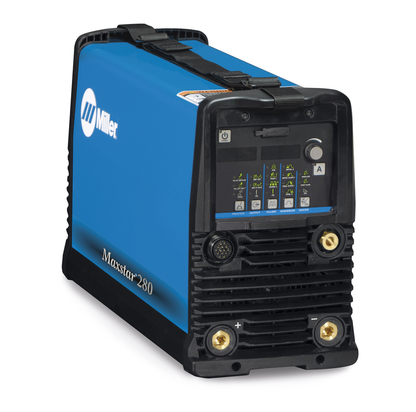

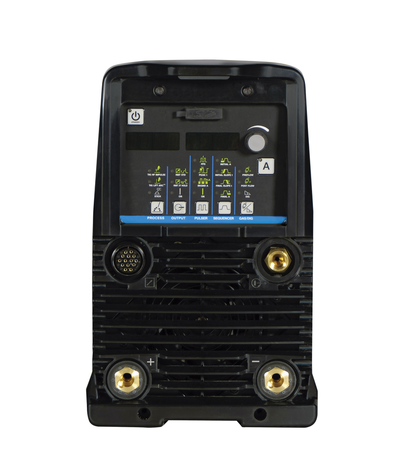

Miller Electric Maxstar 280 DX 208-575 V - 907553

The Maxstar 280 Series is a powerful combination of capability and portability. Weighing only 47 pounds, it can weld up to 3/8 in. thick material. The DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.

Features

• Cooler Power Supply (CPS): An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 1.3. The power switch on the machine activates the receptacle to help prevent torch failure. Available on select models.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Upgradeable and Expandable: Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Portable with adjustable shoulder strap: Weighing in at just 47 pounds, the Maxstar 280 is extremely portable and easy to transport featuring dual carry handles and a carrying strap.
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Weldcraft® W-280 (WP-280) TIG Torch: Two-piece torch head and exclusive Super Cool™ Technology provides additional surface area to increase cooling efficiency and capacity Torch body includes an anti-rotation featureand multi-position locking to prevent handlemovement during welding and improve operator control Mechanical fittings provide a secure gas andwater connection to prevent leakage and alloweasy hose replacement
• Base and Deluxe Models Available: Base model provides essential TIG and Stick functions and provides operator-friendly, menu-driven features. The DX model adds extended ranges to sequencer and full trigger options, preflow and pulser functions.
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

• Input Voltage: 208 V; 220/230/240 V; 380/400 V; 460/480 V; 575 V
• Input Frequency: 50/60 Hz
• Input Phase: Single-phase or three-phase
• Amperage Range: 1 A - 280 A (DC)
• Rated Output: 250 A at 20 V, 60% duty cycle
• Max Open Circuit Voltage: 60 VDC
• Duty Cycle TIG: 280 A at 40%, 250 A at 60%, 200 A at 100%
• Duty Cycle Stick: 280 A at 35%, 250 A at 60%, 200 A at 100%
• Weight: 47 lb (21.3 kg)
• Dimensions (H x W x D): 13.6 in x 8.6 in x 22.5 in (346 mm x 219 mm x 569 mm)
• Material Thickness Capacity: Steel 0.004 in. (0.1 mm) - 3/8 in. (9.5 mm)
• Weldable Metals: Steel; Specialty Metals; Stainless Steel
• Weld Output: CC
• Current Type: DC
• TIG Tungsten Electrode Size: .020 in - 1/8 in (0.5 mm - 3.2 mm)
• Stick Electrode Maximum Diameter: Up to 1/4 in (6.4 mm)
• Pulse Frequency Range: Up to 250 pps
• Cooling System: Fan-On-Demand with optional Cooler Power Supply (CPS) receptacle
• Torch Type: Weldcraft W-280 (WP-280) TIG Torch, two-piece, water-cooled
• Operating Temperature Range: 14 to 104 F (-10 to 40 C)
• Storage Temperature Range: -22 to 149 F (-30 to 65 C)
• IP Rating: IP23
• Compliance: CSA Certified to Canadian and U.S. standards; CE models conform to IEC 60974 series
• Metal Type: Steel
• Country of Origin: United States
• Series: Maxstar
