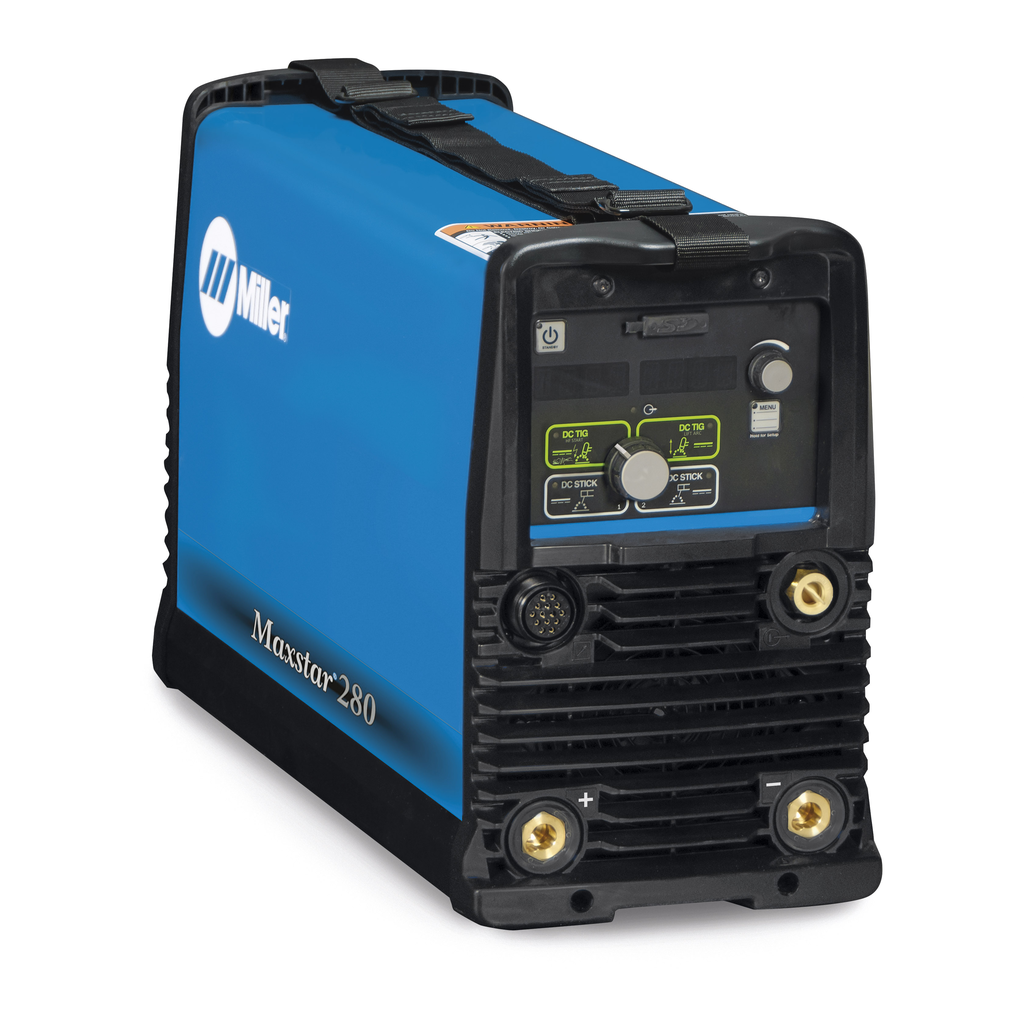

Miller Electric Maxstar 280 208-575 V, CPS - 907538

The Maxstar 280 Series is a powerful combination of capability and portability. Weighing only 50 pounds, it can weld up to 3/8 in. thick material. The DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.

Features

• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 1.3. The power switch on the machine activates the receptacle to help prevent torch failure. Available on select models.
• This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Maxstar 280 - Base model provides essential TIG and Stick functions and provides operator-friendly, menu-driven features. Maxstar 280 DX - The DX model adds extended ranges to sequencer and full trigger options, preflow and pulser functions.
• Two-piece torch head and exclusive Super Cool™ Technology provides additional surface area to increase cooling efficiency and capacity Torch body includes an anti-rotation featureand multi-position locking to prevent handlemovement during welding and improve operator control Mechanical fittings provide a secure gas andwater connection to prevent leakage and alloweasy hose replacement
• Weighing in at just 47 pounds, the Maxstar 280 is extremely portable and easy to transport featuring dual carry handles and a carrying strap.

Does Not Include

• TIG torch adapter

Includes

• 8 ft. (2.4 m) primary cord
• Maxstar® 280
• Adjustable Shoulder Strap
• (2) 50 mm Dinse style connectors

• Input Voltage: 208 V|220/230/240 V|380/400 V|460/480 V|575 V
• Input Phase: 1- and 3-Phase
• Input Hz: 50/60 Hz
• Amperage Range: 1 A - 280 A
• Max Open Circuit Voltage (VDC): 60 VDC
• Amperage Max (A): 280 A
• Amperage Min (A): 1 A
• Weld Output: CC
• Max Thickness - Steel: 3/8 in. (9.5 mm)
• Min Thickness - Steel: 0.004 in. (0.1 mm)
• Weld Thickness Capacity: 3/8 in.
• Cable Length: 8 ft
• Weight: 47 lbs
• Weldable Metals: Specialty Metals, Stainless Steel, Steel
• Metal Type: Steel
• Country of Origin: United States
