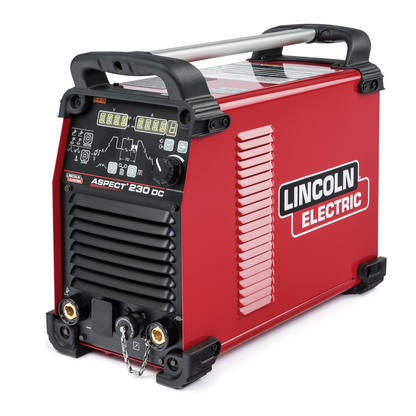

Lincoln Electric, K4346-1, TIG Welder, 120-460V; DC Output; 200-299A; Inverter

The Aspect 230 TIG welder is an inverter based arc welding power source optimized for AC/DC TIG and Stick welding. A true professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc you need. All of the features you want can be easily customized to your application and saved in the available memory settings. TIG weld like a champion with the new Aspect 230 AC/DC machine.

Features

• PowerConnect® Technology - Automatically adjusts to input power from 120-460V, 50 or 60 Hz, single or three phase
• AC Auto Balance® Technology - Automatically provides optimal mix of cleaning and penetration when welding aluminum
• Cooler Power Supply - Built-in Cooler Power Supply comes standard on all models
• Intellistart™ Technology - Automatically provides softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials
• Memory Capability - The memory function allows saving up to 9 specific welding procedures
• Fan-As-Needed - The cooling fan operates only when needed to assure proper cooling of the machine
• Green Mode - Ability to put machine in standby mode after 10 minutes of inactivity to reduce power consumption

What's Included?

• (1) Aspect 230 DC TIG Welder, (1) Input Power Cord 10 ft (3m)

• Input Voltage: 120-460 V, 1/3 Phase, 50/60 Hz
• Input Current: 120 V: 21 A, 208/230/460 V: 11/10/5 A
• Output Range: 2-150 A TIG at 120 V, 2-230 A TIG at 208/230/460 V
• Rated Output: 120 V: 110 A/100%/14.4 V, 125 A/60%/15 V, 150 A/35%/16 V; 208/230/460 V: 160 A/100%/16.4 V, 190 A/60%/17.6 V, 230 A/35%/19.2 V
• Output Polarity: DC
• Duty Cycle: 35% at 230 A
• Product Dimensions (H x W x D): 16.5 x 9.7 x 19.9 in (419 x 246 x 506 mm)
• Weight: 54 lb (24.49 kg)
• Welding Technology: Inverter/Chopper
• Cooling: Air
• Output Mode: CC
• Country of Origin: Poland
