Lincoln Electric, K4342-1, TIG Welder, AC/DC; Water-Cooled; Input Voltage 120-460V; Max Output 200-299A; Input Phase 1/3

The Aspect 230 TIG welder is an inverter based arc welding power source optimized for AC/DC TIG and Stick welding. A true professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc you need. All of the features you want can be easily customized to your application and saved in the available memory settings. TIG weld like a champion with the new Aspect 230 AC/DC machine.

Features

• Intellistart™ Technology - Automatically provides softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials
• Cooler Power Supply - Built-in Cooler Power Supply comes standard on all models
• Fan-As-Needed - The cooling fan operates only when needed to assure proper cooling of the machine
• PowerConnect® Technology - Automatically adjusts to input power from 120-460V, 50 or 60 Hz, single or three phase

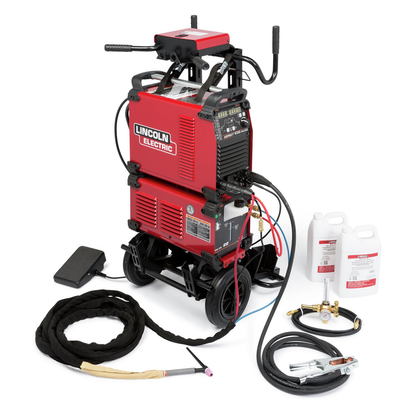

• One-Pak comes with cart, Cool Arc® 22, foot pedal, gas lens kit, water-cooled TIG torch, coolant, cable cover, regulator and hose kit, ground clamp and cable, and Twist Mate™ Connector.
• Memory Capability - The memory function allows saving up to 9 specific welding procedures
• AC Auto Balance® Technology - Automatically provides optimal mix of cleaning and penetration when welding aluminum
• Green Mode - Ability to put machine in standby mode after 10 minutes of inactivity to reduce power consumption

What's Included?

• (1) K4340-1 Aspect 230 AC/DC TIG Welder, (1) Input Power Cord 10 ft (3m), (1) K4441-1 Cart, (1) K3475-1 Cool Arc® 22, (1) K870 Foot Pedal, (1) KP2414-1 Gas Lens Kit for PTW-20, (1) K1784-4 Water Cooled TIG Torch PTW-20 250A (25ft), (2) KP4159-1 Low Conductivity Coolant (1 gal), (1) K918-4 Zippered Cable Cover (25ft), (1) 3100211 Gas Regulator, (1) K1803-3 Ground Clamp with 15 ft Cable, (1) K1622-5 Torch Twist Mate™ Connector

• Output Current: 2-230 A
• Duty Cycle: 35% at 230 A
• Output Voltage: 19.2 V at 35%, 14.4 V at 100% duty cycle (120 A)
• Input Voltage: 120-460 V
• Input Frequency: 50/60 Hz
• Input Phase: Single or three phase
• Input Current: 21/11/10/5 A
• Output Mode: Constant Current (CC)
• Polarity: AC/DC
• Process: AC/DC TIG, Stick Welding
• Welding Thickness Capacity: Up to 1/4 in (6.4 mm)
• Cooling: Water
• Weight: 211.63 lb (95.995 kg)
• Dimensions (HxWxD): 16.5 x 9.7 x 19.9 in (419 x 246 x 506 mm)
• Torch Length: 25 ft
• Memory Capability: Up to 9 welding procedures
• AC Frequency Range: 40-400 Hz
• AC Balance Control Range: 35-99%
• AC Pulse Frequency Range: 0.1-25% of AC output frequency
• DC Pulse Frequency Range: 0.1-2,000 pulses per second
• Cooling Type: Water-Cooled
• Compliance: IP23
• Warranty Length: 3 Years
• Country of Origin: United States
