Lincoln Electric, K4341-1, TIG Welder, 120-460V Input, 2-230A Output, AC/DC, Inverter

The Aspect 230 TIG welder is an inverter based arc welding power source optimized for AC/DC TIG and Stick welding. A true professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc you need. All of the features you want can be easily customized to your application and saved in the available memory settings. TIG weld like a champion with the new Aspect 230 AC/DC machine.

Features

• Intellistart™ Technology - Automatically provides softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials
• Fan-As-Needed - The cooling fan operates only when needed to assure proper cooling of the machine
• PowerConnect® Technology - Automatically adjusts to input power from 120-460V, 50 or 60 Hz, single or three phase
• Green Mode - Ability to put machine in standby mode after 10 minutes of inactivity to reduce power consumption

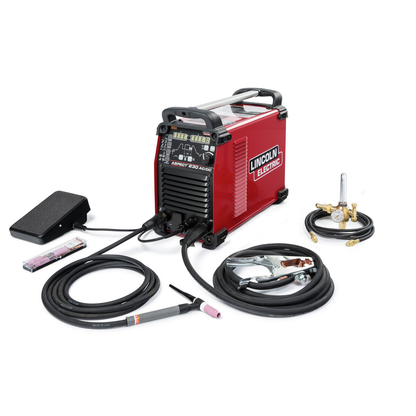

• One-Pak comes with a foot pedal, expendables kit, TIG torch, regulator and hose kit, ground clamp and cable, and Twist Mate™ Connector.
• AC Auto Balance® Technology - Automatically provides optimal mix of cleaning and penetration when welding aluminum
• Cooler Power Supply - Built-in Cooler Power Supply comes standard on all models
• Memory Capability - The memory function allows saving up to 9 specific welding procedures

What's Included?

• (1) K4240-1 Aspect 230 AC/DC TIG Welder, (1) Input Power Cord 10 ft (3m), (1) K870 Foot Pedal, (1) KP509 Expendables Kit for PTW-18 and PTA-26, (1) K1783-10 Air Cooled TIG Torch 200A PTA-26 Flex Head (25ft), (1) 3100211 Gas Regulator, (1) K1803-3 Ground Clamp with 15 ft Cable, (1) K1622-3 Torch Twist Mate Connector ASM

• Output Range: 120V: 2-150A TIG, 208/230/460V: 2-230A TIG
• Max Output: 230A max output
• Duty Cycle: 35% @ 230A
• Input Voltage: 120-460V
• Input Phase: Single or Three Phase
• Input Frequency: 50/60 Hz
• Input Current: 120V: 21A, 208/230/460V: 11A/10A/5A
• Cooling: Air-Cooled
• Dimensions: 16.5 x 9.7 x 19.9 in (419 x 246 x 506 mm)
• Weight: 79 lb (35.8 kg)
• Welding Technology: Inverter/Chopper
• Output Polarity: AC/DC
• Output Mode: CC
• Rated Output: 120V: 110A/100%/14.4V, 125A/60%/15V, 150A/35%/16V; 208/230/460V: 160A/100%/16.4V, 190A/60%/17.6V, 230A/35%/19.2V
• Warranty Length: 3 Years
• Country of Origin: United States
• Compliance: IP23 rated
