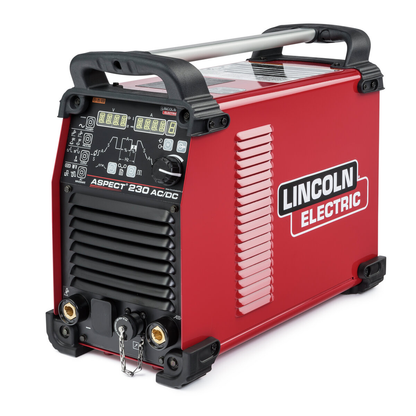

Lincoln Electric, K4340-1, TIG Welder, AC/DC, 120-460V Input, 200-299A Output, Inverter/Chopper

The Aspect 230 TIG welder is an inverter based arc welding power source optimized for AC/DC TIG and Stick welding. A true professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc you need. All of the features you want can be easily customized to your application and saved in the available memory settings. TIG weld like a champion with the new Aspect 230 AC/DC machine.

Features

• Memory Capability - The memory function allows saving up to 9 specific welding procedures
• Cooler Power Supply - Built-in Cooler Power Supply comes standard on all models
• AC Auto Balance® Technology - Automatically provides optimal mix of cleaning and penetration when welding aluminum
• Fan-As-Needed - The cooling fan operates only when needed to assure proper cooling of the machine
• Green Mode - Ability to put machine in standby mode after 10 minutes of inactivity to reduce power consumption
• PowerConnect® Technology - Automatically adjusts to input power from 120-460V, 50 or 60 Hz, single or three phase
• Intellistart™ Technology - Automatically provides softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials

What's Included?

• (1) Aspect 230 AC/DC TIG Welder, (1) Input Power Cord 10 ft (3m)

• Input Voltage: 120-460V, Single or Three Phase, 50/60 Hz
• Input Current: 120V: 21A, 208V: 11A, 230V: 10A, 460V: 5A
• Rated Output: 120V: 110A/100%/14.4V, 125A/60%/15V, 150A/35%/16V; 208/230/460V: 160A/100%/16.4V, 190A/60%/17.6V, 230A/35%/19.2V
• Output Range: 120V: 2-150A TIG, 208/230/460V: 2-230A
• Output Voltage: 19.2V max
• Polarity: AC/DC
• Input Phase: 1/3 Ph
• Input Hertz: 50/60 Hz
• Duty Cycle: 35% at 230A
• Waveforms: AC Auto Balance Tech, pulse, freq, square, sine, triangular, soft square
• AC Frequency Range: 40-400 Hz
• AC Balance Control Range: 35-99% EN%
• Pulse Frequency AC: 0.1-25% of AC output frequency
• Pulse Frequency DC: 0.1-2,000 pulses per second
• Dimensions: 16.5 x 9.7 x 19.9 in (419 x 246 x 506 mm)
• Weight: 50.5 lb (22.9 kg)
• Cooling: Fan-as-needed, built-in cooler power supply
• Welding Technology: Inverter/Chopper
• Country of Origin: Poland
• Warranty Length: 3 Years
