Lincoln Electric, K2619-2, TIG Welder, 275A; 2-340A Output Range; AC/DC; Micro-Start II Technology

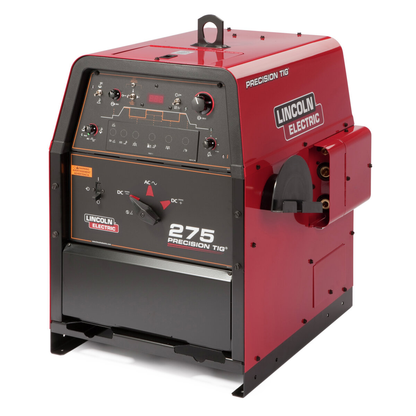

The Precision TIG® 275 is a versatile shop machine ideal for any type of TIG or Stick welding maintenance application, including the use of 5/32-in. (4.0 mm) stick electrode. The Precision TIG 275 features the patented Micro-Start™ II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills.

Features

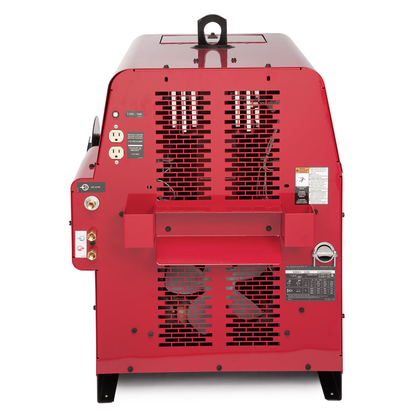

• 115 Volt Auxiliary Power Receptacles - Great for powering an optional water cooler or power tools.
• Upgrade with the optional Advanced Pulse Control panel to enable better control over heat input, resulting in less warping and distortion on thin metals
• Patented Micro-Start II Technology - Delivers extremely stable low amperage starting, welding and cratering for both AC and DC welding.

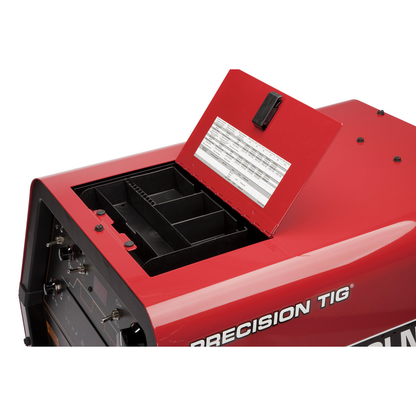

• Built-in Storage Compartment - With removeable tray for torch consumables.
• High Duty Cycles - 275 amps at 40% duty cycle.
• AC Auto-Balance® - Automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum. Or, take full control - adjust the AC Balance® to increase or decrease cleaning action or penetration on aluminum.
• Excellent Stick Welder - Even with Fleetweld® 5P (E6010) with new Automatic Hot Start™ and Auto Adaptive Arc Force™ controls.
• Widest Output Range in its Class - 2-340 amps for both AC and DC

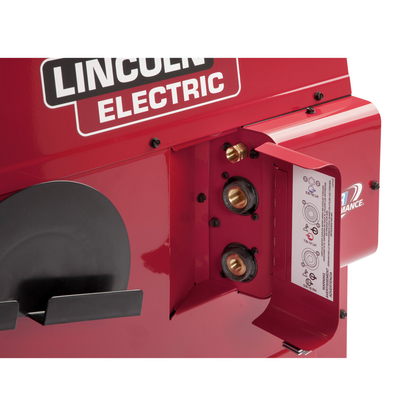

• Water-Cooled Torch Connections with No Adapters Required - Side mounted, out of the way, and well protected.

What's Included?

• (1) Precision TIG 275 Welder

• Input Voltage: 460/575V
• Input Phase: Single-phase
• Frequency: 60 Hz
• Rated Output: 275A/40%, 225A/60%
• Output Range: 2-340A
• Maximum Open Circuit Voltage: 75V
• Weight: 397 lb (180 kg)
• Dimensions: 31 x 22 x 26 in (787 x 559 x 660 mm)
• Cooling: Air
• Polarity: AC/DC
• Material: Water-cooled torch connections
• Compliance: CSA Certified
• Country of Origin: United States
