Lincoln Electric, K1845-1, TIG Welder, 5-160 A; 115/230 V; Inverter/Chopper; DC

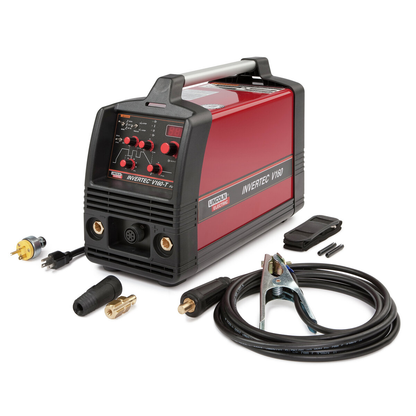

The Invertec V160-T is a small but rugged, high-performance DC TIG and Stick welder designed for alloy fabrication, process piping, or critical maintenance work. Weighing in at a portable 24 pounds, the machine automatically connects to 120V or 230V service and features simple torch connections that provide for quick changeover from TIG to Stick welding.

What's Included?

• (1) Invertec V160-T TIG Welder, (1) 115V Input Cord (10 ft) and Plug (NEMA 5-15P), (1) 20 Amp Plug (NEMA 5-20P), (1) Twist-Mate™ Torch Adapter for PTA-9 & -17 Torches, (1) Fully Adjustable Shoulder Strap, (1) Work Clamp and Cable

Features

• High-Frequency TIG Starting - Makes it easy to establish an arc under a variety of conditions. Enhances quality by minimizing the potential for weld contamination created by tungsten inclusions in the weld.
• Pulse Control - Built in pulsing functions help minimize heat input on thin materials, and provide for a faster freezing weld puddle for uphill welding on curved surfaces such as process piping. The TIG pulser also helps moderate filler metal deposition for consistent bead appearance.
• Ideally Suited for External Operations - The Invertec V160-T’s light-weight and adjustable shoulder strap enable welding in the field.

• Output Range: 5-160 A
• Rated Output: TIG: 90A/14.6V/100%, 110A/14.4V/100%, 130A/15.2V/100%; Stick: 60A/22.4V/100%, 80A/23.2V/100%, 130A/22.2V/100%
• Input Voltage: 115/230 V
• Input Phase: 1 Phase
• Input Frequency: 50/60 Hz
• Polarity: DC
• Welding Type: DC TIG, Stick
• Cooling: Air
• Length: 17 in / 432 mm
• Width: 8 in / 203 mm
• Height: 13 in / 330 mm
• Weight: 33 lb / 14.969 kg
• Welding Technology: Inverter/Chopper
• Country of Origin: Poland
