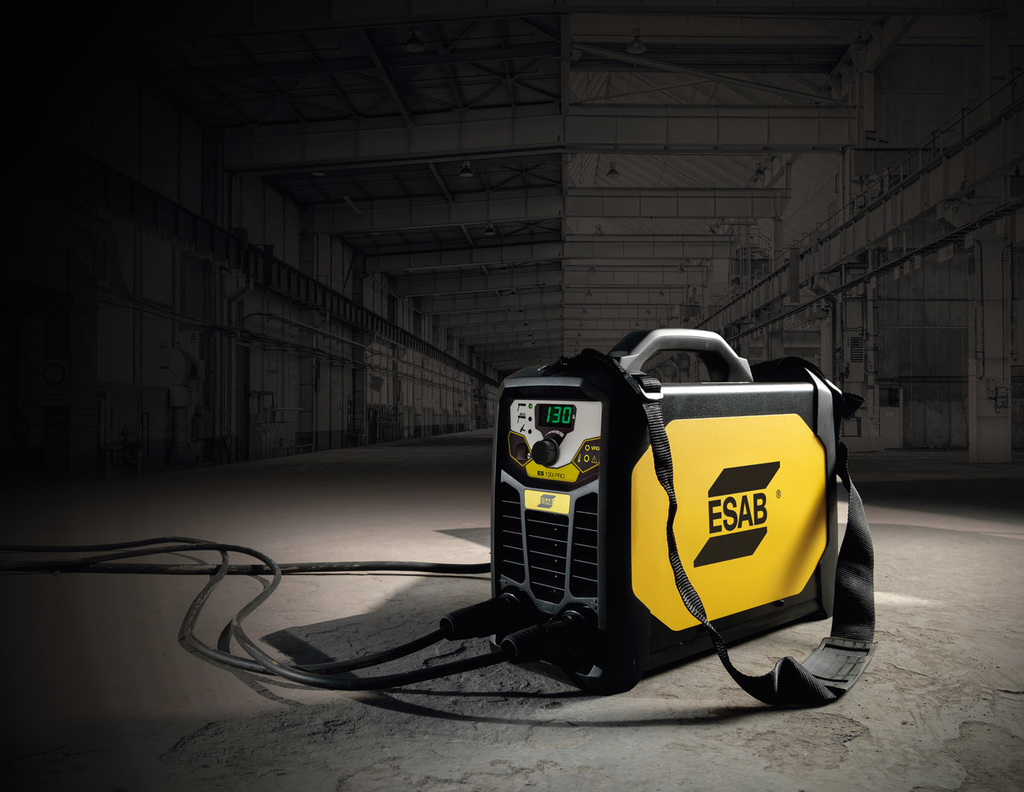

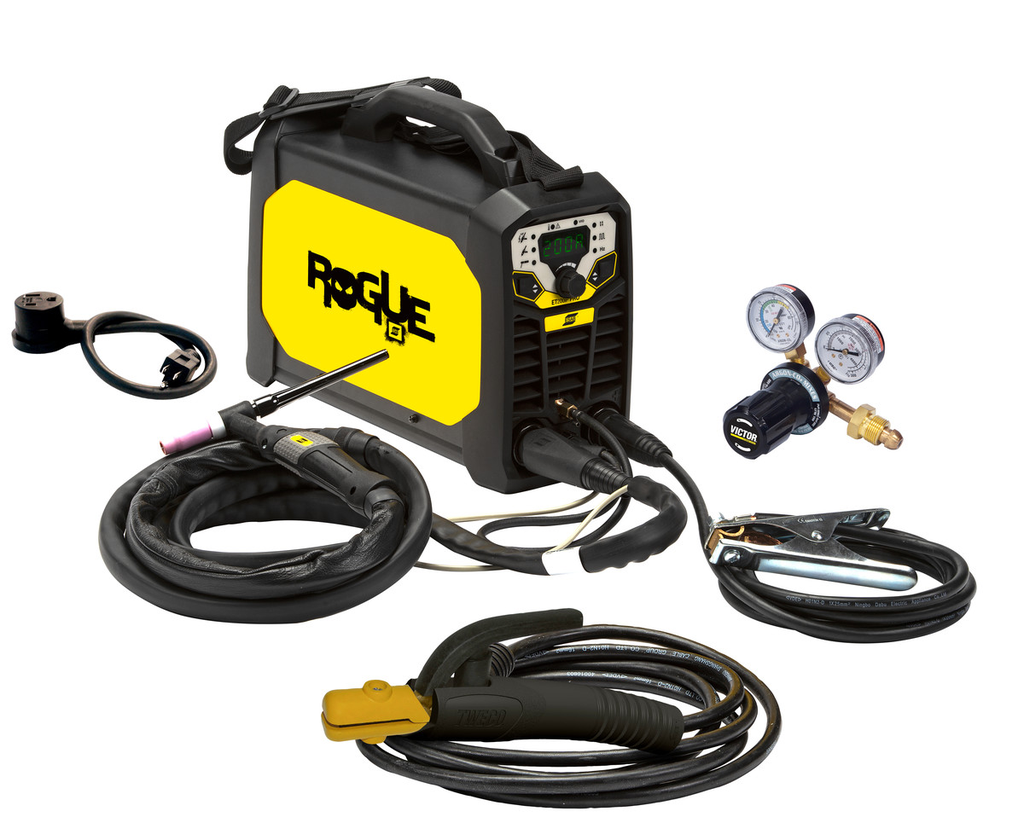

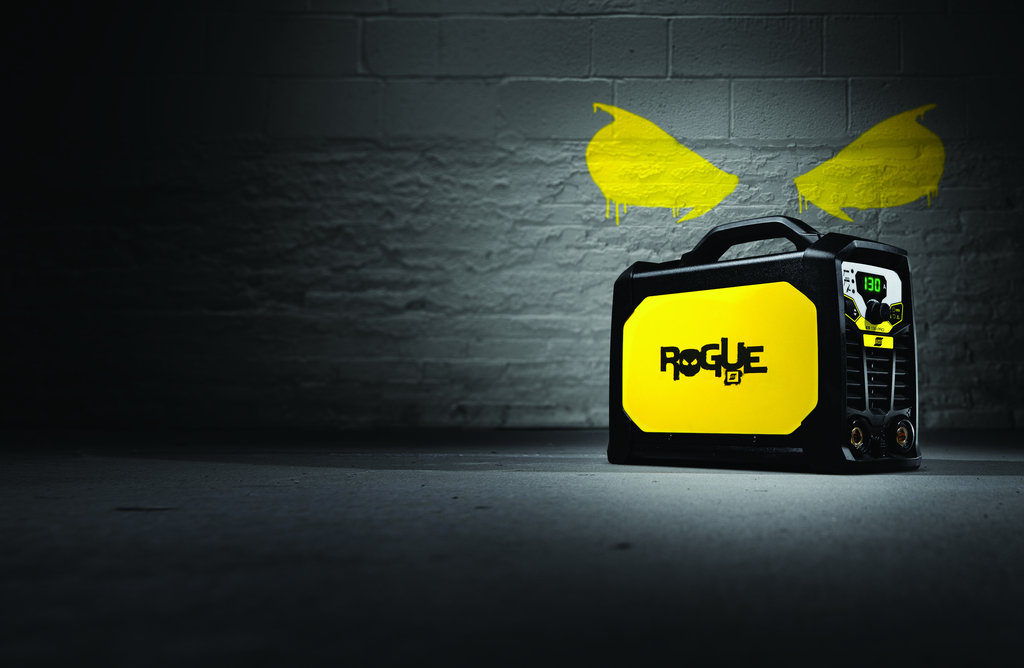

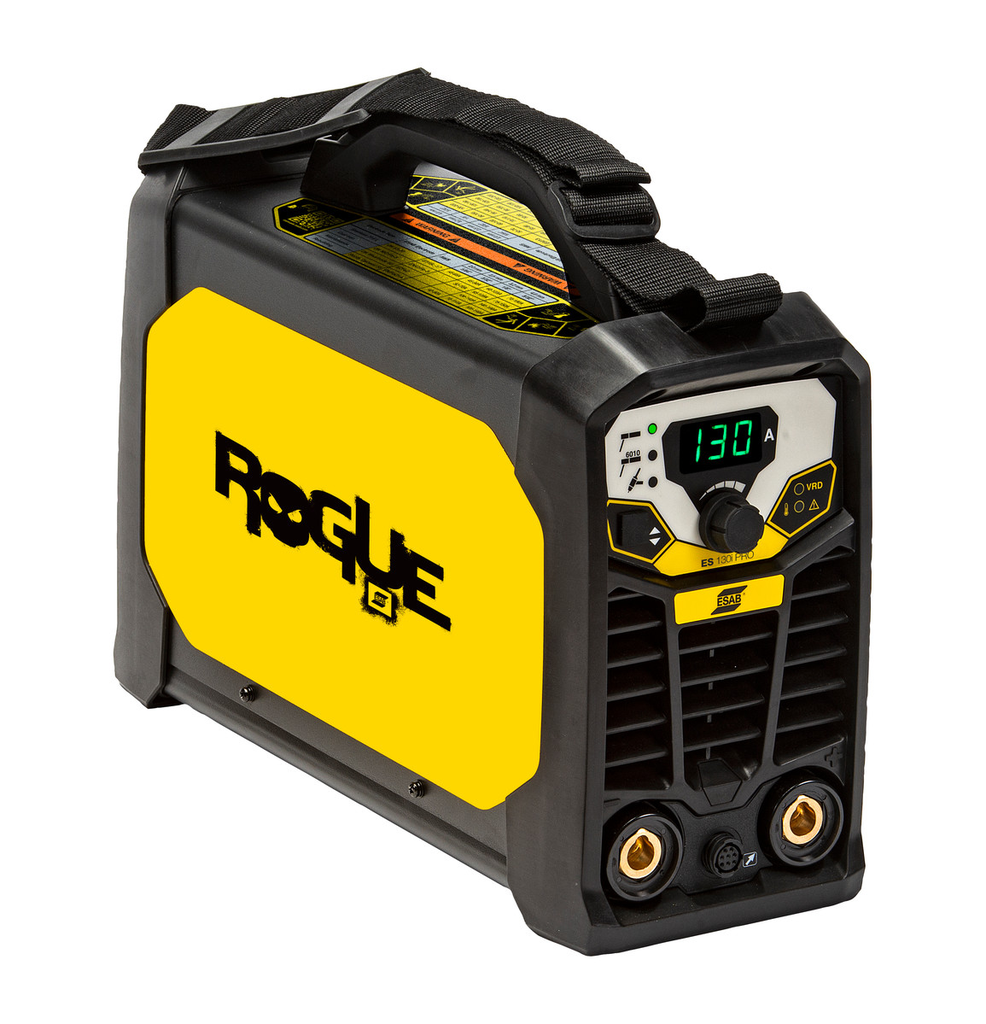

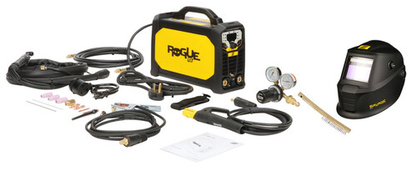

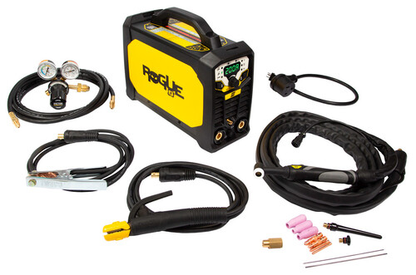

Rogue ET is powerful and easy to handle entry level high frequency start TIG machine. It has been designed with ESAB DNA code which give them great robustness locked in very compact housing. Lightweight, ergonomic handle, carry strap and long extension cables make Rogue ET the ideal solution for field applications. Rogue ET performs with exceptional arc characteristics, both in TIG and Stick mode. There is a broad number of advanced parameters that can be adjusted in TIG: gas pre flow, start current, ramp up time, ramp down time, finish current and post flow. All of these can be worked with 2 or 4 stroke mode. Additionally this version has a pulsing feature with frequency up to 500 Hz for better heat input control. In Stick the user can adjust Hot Start or Arc Force, to match his best welding preferences or application. All of this can be quickly adjusted by simple and intuitive user interface.
Features
- Advanced TIG controls for full cycle control to match every application you need, and pulse feature up to 500 Hz for perfect control of heat input
- Optional remote current adjustment from: TIG torch, foot pedal, hand remote control
- Easy to Use –set the welding current and weld with excellent result also compliant for suitable use with generators
- PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft.)
- Excellent high frequency TIG start ensures no failures on ignition with superior arc characteristics for smooth and stable performance
- Robust Design –IP23S designed for both fabrication floor or site applications

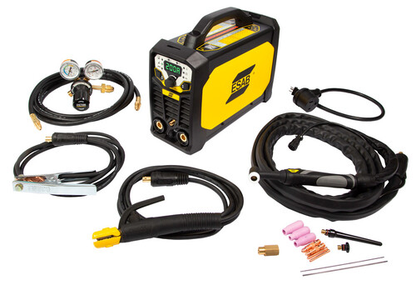

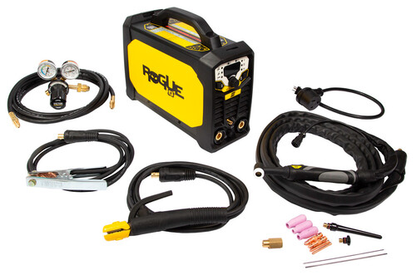

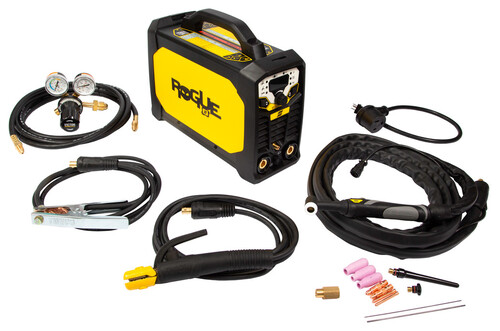

Accessories
- MMA 4 Analogue Remote Control incl. 10M (32 ft.) cable and 8-pin connector
- SR-B 26FX-R TIG Torch, Air, 3550, remote, 4 m (13 ft.) 0700025557
- SR-B 26FX-R TIG Torch, Air, 3550, remote 8 m (26 ft.) 0700025591
- Victor Argon Flow Gauge Regulator GF-250-50-580 0781-9411
- Ground Clamp 200 A and Lead Assembly, 10 ft. (3 m), 50 mm WS200G10
- Electrode Holder 200A and Lead Assembly, 13 ft. (4 m), 50 mm WS200E13
- HW-17, Hard Body, 60°Head, 12 1/2 ft., 1 pc. cable/hose assembly 16X48
- Shoulder strap 0700500086
- TIG Foot Control, 15 ft. (4.5m) cable and 8-pin connector W4014450
Applications
- Food & beverage
- Industrial and General Fabrication
- Civil Construction
- Agricultural Equipment
- Repair and Maintenance
-
Process: SMAW, GTAW (Stick, TIG)
-
Output Amps (Max): 200 A
-
Amp Range: 10 - 200 A
-
Duty Cycle: SMAW: 200 A @ 25%, 129 A @ 60%, 100 A @ 100%; GTAW: 200 A @ 25%, 129 A @ 60%, 100 A @ 100%
-
Input Voltage: 115 V, 230 V
-
Phase: Single
-
Frequency: 50/60 Hz
-
High Frequency Start: Yes
-
Pulse Frequency: Up to 500 Hz
-
Physical Size: 15.7 x 6 x 10.4 in.
-
Lead Cord Length: 10 ft.
-
Cable Length: 13 ft.
-
TIG Torch Lengths: 4 m, 8 m
-
TIG Foot Control Cable Length: 15 ft.
-
Remote Control Cable Length: 32 ft.
-
Ground Clamp Amperage: 200 A
-
Ground Clamp Lead Length: 10 ft.
-
Electrode Holder Amperage: 200 A
-
Electrode Holder Lead Length: 13 ft.
-
Ingress Protection Rating: IP23S
-
Material: Contact Tips
-
Trade Name: ROGUE
-
Country of Origin: China
-
Series: ROGUE
