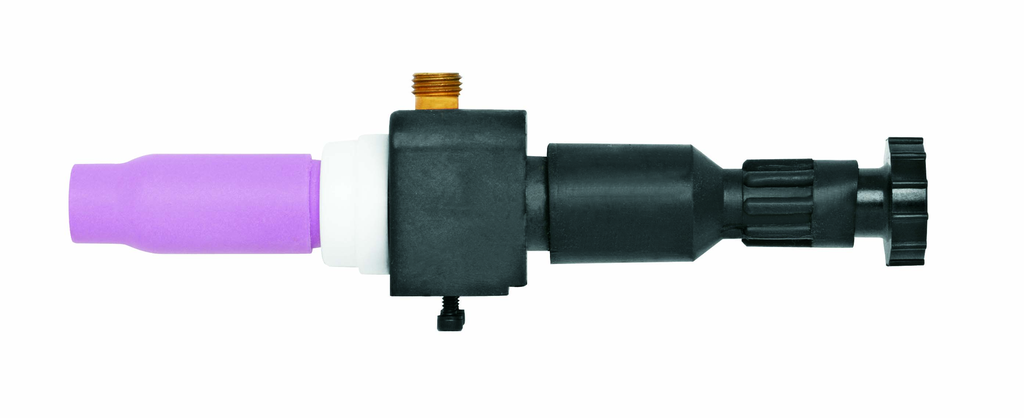

The MT100, 100 amp, gas cooled machine torch is a back-loaded design that allows for the tungsten to be adjusted without having to remove the cup or tungsten from the torch. 100 amps ACHF or DCSP @100

Features

  • All torches are back-loaded, no need to remove cup to make adjustments
  • High temperature phenolic resin insulation
  • Adjust tungsten up to 3/4" (19mm) without removing tungsten from torch (MT100, MT400)
  • Uses standard 10N Series cup and collet body, 10N “stubby” collet
  • Amperage: 100A
  • Cooling Type: Gas Cooled
  • Material: Phenolic Resin
  • Compatibility: 10N Series Cup and Collet Body
