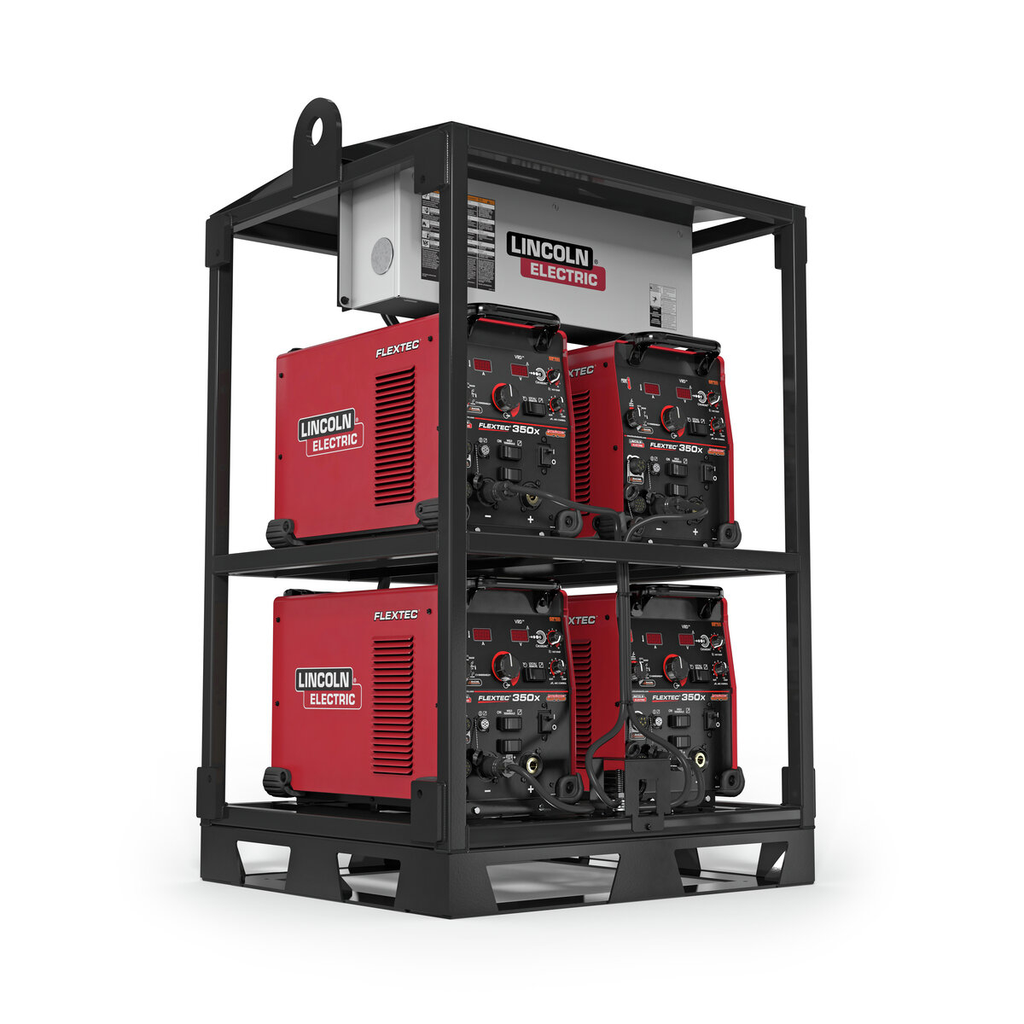

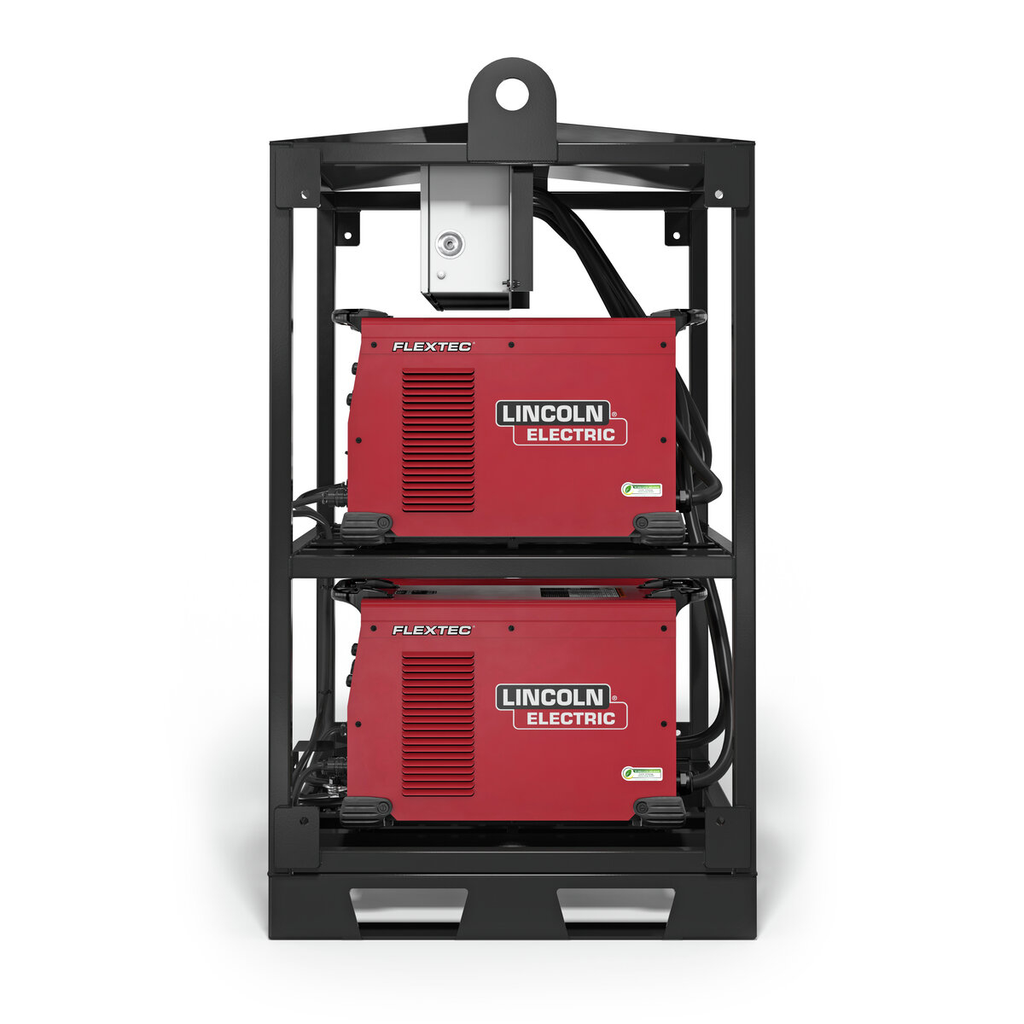

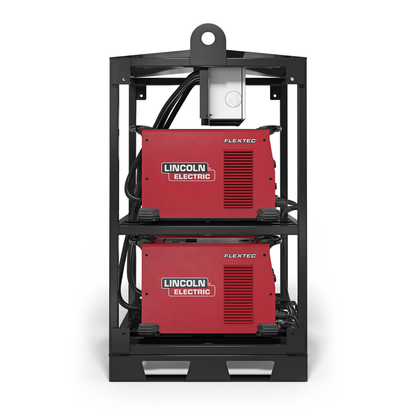

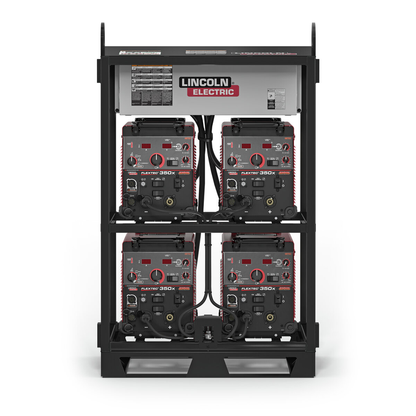

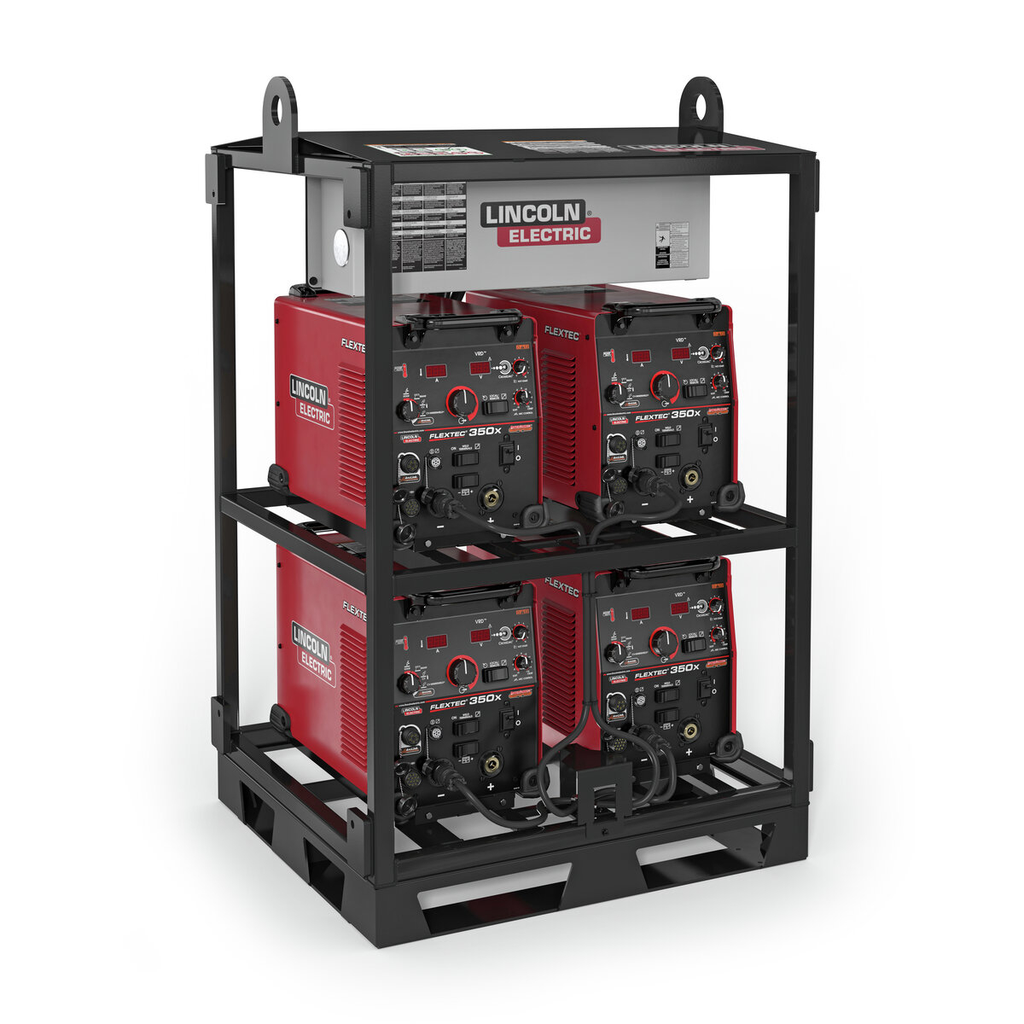

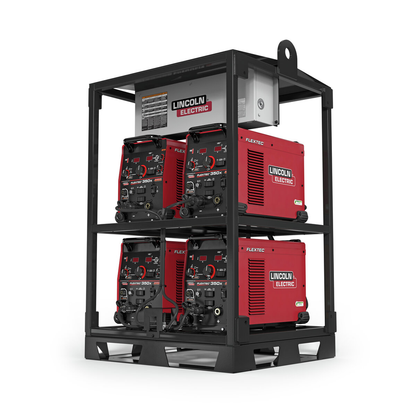

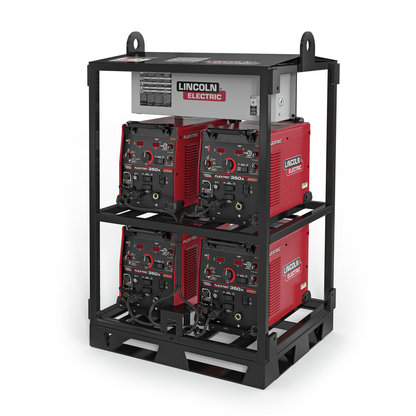

Lincoln Electric, K4726-1, Welding Rack, PowerConnect 4-Pack, IP23 Rated, Multi-Operator, CrossLinc Technology

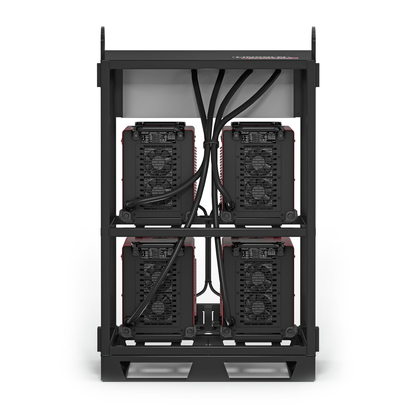

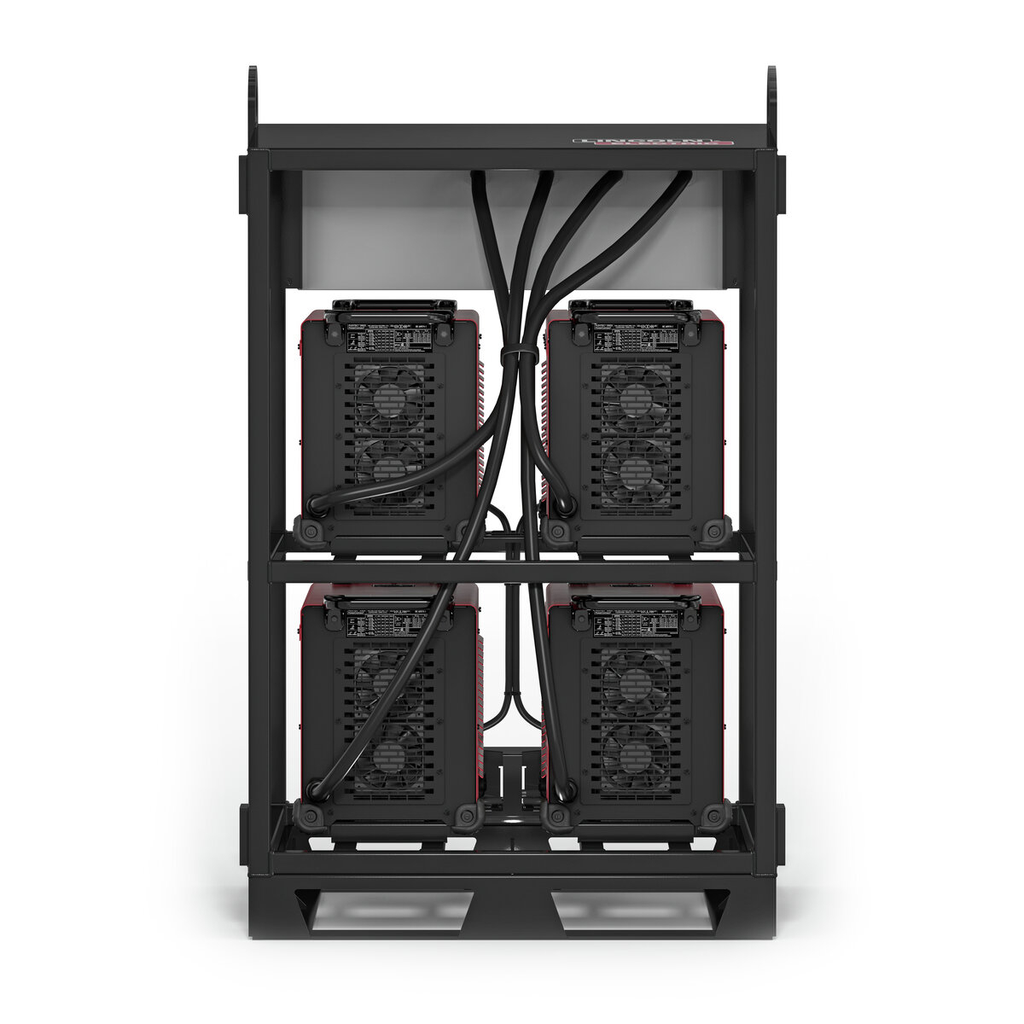

HEAVY DUTY, COMPACT, EXPANDABLEBuy a 4-Pack and Expand to an 8-Pack Anytime!Competitive Advantages Bolt two 4-pack racks together to form an 8-pack that can be moved or lifted together as a unit. Uses commonly available low cost fuses to reduce ongoing operations costs Forklift slots on ALL Sides of the rack - width AND depth Heavy Duty Casters stand up to rough use (optional) Heavy square tubing used throughout construction, even for roof supports, to resist bending and twisting during lifts. Heavy duty rack base supports product and rack structural members and resists abuse Welder Mounting Plate makes mounting or removing each welder a quick and easy process Junction Box Door is designed to open DOWN, leaving a convenient place to set tools while setting up the rack. Neat Input Cable Routing keeps all rack cabling inside the rack to avoid pinching or cutting during operation Rack design easily accommodates strain relief on the welding cables Meets National Electrical Code (NEC) when properly installed Power all welders with one primary power drop Purchase a complete system with factory-installed welders pre-wired to the main power distribution panel.Why Use Racks? Greater Job Site Safety Fewer High Voltage Cables Faster Set Up Time More Protection for Equipment

Features

• Flextec 350X PowerConnect machines use industry segment Tweco style connections.
• CrossLinc technology Enabled
• Runs on any input voltage 200-600VAC
• Forklift holes and lifting eyes to move easily around the jobsite
• Work leads from each individual power source to the inverter rack common ground stud included.
• IP23 rated for outdoor use
• One Input drop for 4 power sources

• Rated Output Current: 350A/34V/60%, 300A/32V/100% duty cycle
• Output Range: 5-425A
• Input Voltage: 200-600V AC
• Rack Input Power: 380/460/575 V, 3-phase, 50/60 Hz
• Rack Input Current @ Rated Output: 64/60/60A (4-Pack)
• Height: 59.72 in
• Width: 37.5 in
• Length: 32.88 in
• Weight: 644 lbs
• Material: Heavy square tubing steel
• Input Connection Type: Tweco style
• Rating: IP23
• Compliance: National Electrical Code (NEC)
• Country of Origin: United States
