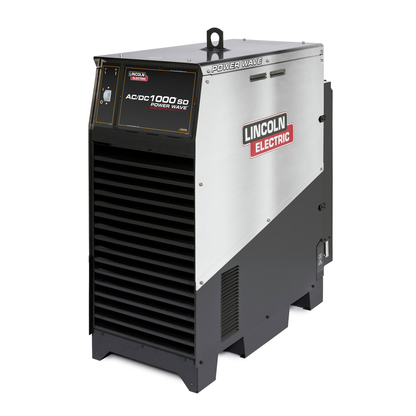

Lincoln Electric, K2803-1, Submerged Arc Welder, 1000A; AC/DC; IP23; Inverter/Chopper

Increase Productivity, Quality and FlexibilityThe Power Wave® AC/DC 1000® SD delivers Waveform Control Technology® to submerged arc welding. Choose constant current or constant voltage operation and set variable frequency and amplitude. Software-driven AC, DC positive or DC negative output allows for advanced control over deposition rate and penetration leading to increased weld speeds, consistently higher quality welds and improved efficiency in both single or multi-arc configurations.

Features

• For a full list of available welding processes and waveforms as well as software update details for Power Wave®advanced process welding systems, please visit: www.PowerWaveSoftware.com
• Proven Severe Duty Reliability - IP23 rated to withstand harsh environments.

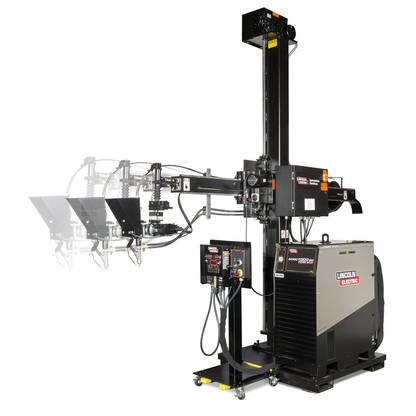

• Simple Multi-Arc Configuration - Synchronize multiple arcs or parralel machines for maximum productivity
• Factory Burn-In Tested - At maximum output for 2 hours to ensure quality and reliability.
• 380 - 575 VAC, 50/60Hz Voltage Input - Offers glabal compatibility.Input Voltage Compensation- Provides reliable and consistent operation over ± 10% input voltage variation.95% Power Factor Correction - Energy efficient design results in substantial energy cost savings compared to traditional transformer based equipment.True Energy™ - Measures, calculates and displays instantaneous energy in the weld for critical heat input calculations.115V (10A) AC Duplex Auxiliary Power Receptacle - Features Surge Blocker™ Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
• Industry Leading 5 Year Warranty
• Automatic Polarity Switching - No hardware reconfiguration required.
• Advanced Connectivity - All Power Wave®systems come standard with access to Lincoln Electric Power Wave®Manager and Lincoln Electric Checkpoint®Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.

• Output Range: 100-1000A
• Max Output: 600+
• Rated Output: 1000A/44V/100%
• Input Voltage: 380 - 575 VAC, 50/60 Hz
• Input Phase: 3Ph
• Input Frequency: 50/60 Hz
• Output Polarity: AC; DC; AC/DC
• Polarity: AC/DC
• Power Factor Correction: 95%
• Auxiliary Power: 115V, 10A AC
• Length: 46.2 in (1174 mm)
• Height: 49.2 in (1250 mm)
• Width: 19.2 in (488 mm)
• Weight: 810 lb (367.4 kg)
• Welding Technology: Inverter/Chopper
• Machines Processes: Submerged Arc (SAW)
• Data Technologies: Ethernet
• Machines Communication Technology: ArcLink
• Equipment Technologies: Arclink; Data Export Capable
• IP Rating: IP23
• Country of Origin: United States
• Warranty: 5 Years
