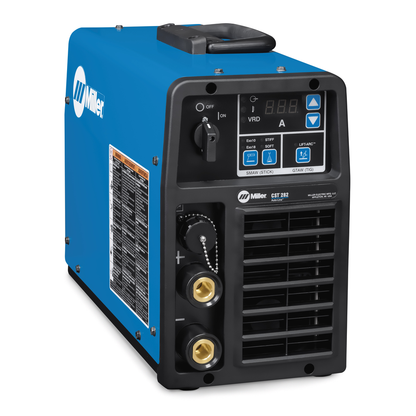

Miller Electric CSTTM 282, 208-575V, Tweco - 907770

Designed for welding pipe and plate in the construction industry -- this compact, 35 pound, goes-anywhere welder delivers 280 amps of superior Stick and TIG performance with Auto-Line™ Technology to utilize nearly any source of primary power on the jobsite.

Features

• Automatically makes starting stick electrodes easy without creating an inclusion.

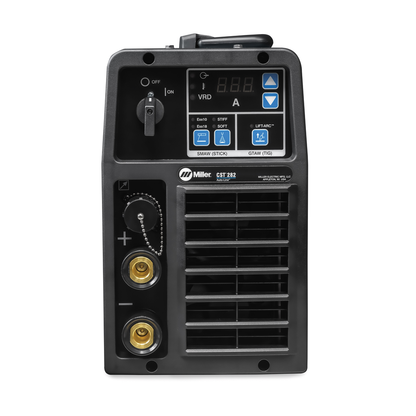

• New Miller-exclusive universal output connector system can be used with either Tweco- or Dinse-style connectors. Welders can convert the machine from one connector style to another — without having to take the machine apart or deal with adapters.
• VRD technology reduces output voltage when the operator isn’t welding, lowering the potential hazard from inadvertent contact with the electrode during non-welding pauses.

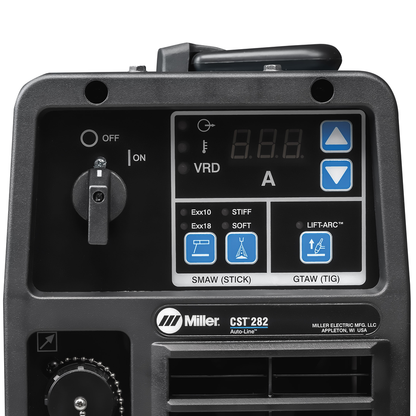

• Digital meter and push-button controls for more precise setting when presetting or monitoring welding amperage.
• Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high-frequency.
• Superior stick arc performance with settings specifically designed for XX10 and XX18 electrodes and a stiff and soft setting for each. Whether welding pipe or in the flat there is a setting for each application.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Weighing only 34.6 pounds, the CST 282 is easily moved around a jobsite for increased operator comfort and safety. It is 7 pounds (20%) lighter than the previous CST model.
• Rack mountable for protection, storage, and transportation of multiple power sources while using a single primary power cable.

• Welding Amperage Range: [[0d14be951c79]] - [[177eb8abd10a]]
• Input Voltage: 208 V, 220/230/240 V, 380/400/440 V, 460/480 V, 575 V
• Input Frequency: 50/60 Hz
• Current Type: DC
• Phase: 1- and 3-Phase
• Max Open Circuit Voltage: 103 VDC
• Length: 18.5 in.
• Height: 13.5 in.
• Width: 8 in.
• Weight: 34.6 lb
• Weldable Metals: Specialty Metals, Stainless Steel, Steel
• Country of Origin: United States
