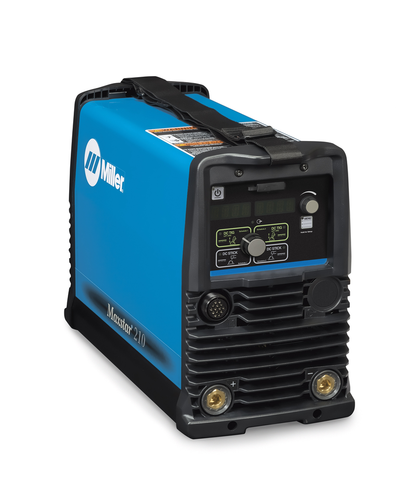

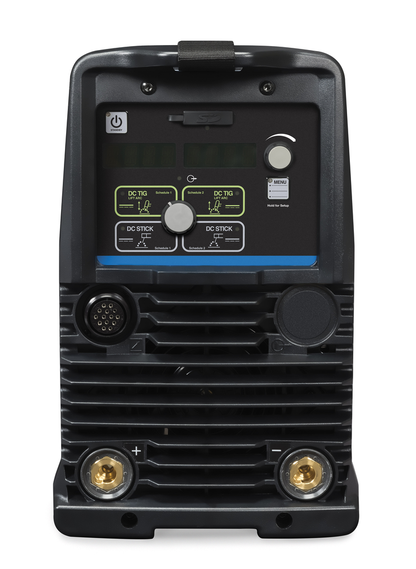

Miller Electric Maxstar 210 STR 120-480 V - 907682

This unit provides maximum flexibility by automatically connecting to any input power. Weighing only 36 pounds, this machine maintains the best DC Stick welding performance in its product class.

Includes

• Maxstar® 210 STR
• 8 ft. (2.4 m) primary cord
• Adjustable Shoulder Strap
• (2) 50 mm Dinse style connectors

Does Not Include

• TIG torch adapter

Features

• This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Hot Start™ technology provides easy, quick and reliable arc starts.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.

• Input Voltage: 110 to 480 V
• Max Open Circuit Voltage: 80 VDC
• Welding Amperage Range: [[0d14be951c79]] - [[177eb8abd10a]]
• Weld Output: CC
• Current Type: DC
• Input Hz: 50/60 Hz
• Length: 19.5 in.
• Width: 8.6 in.
• Height: 13.6 in.
• Weight: 38 lb
• Connector Size: 50 mm Dinse
• Weldable Metals: Stainless Steel, Steel
• Country of Origin: United States
