Hobart Welding Products, 500585, Stick Welder, 10-160 A, 120/240 V MVP, 6.3 in Width, 12.6 in Length

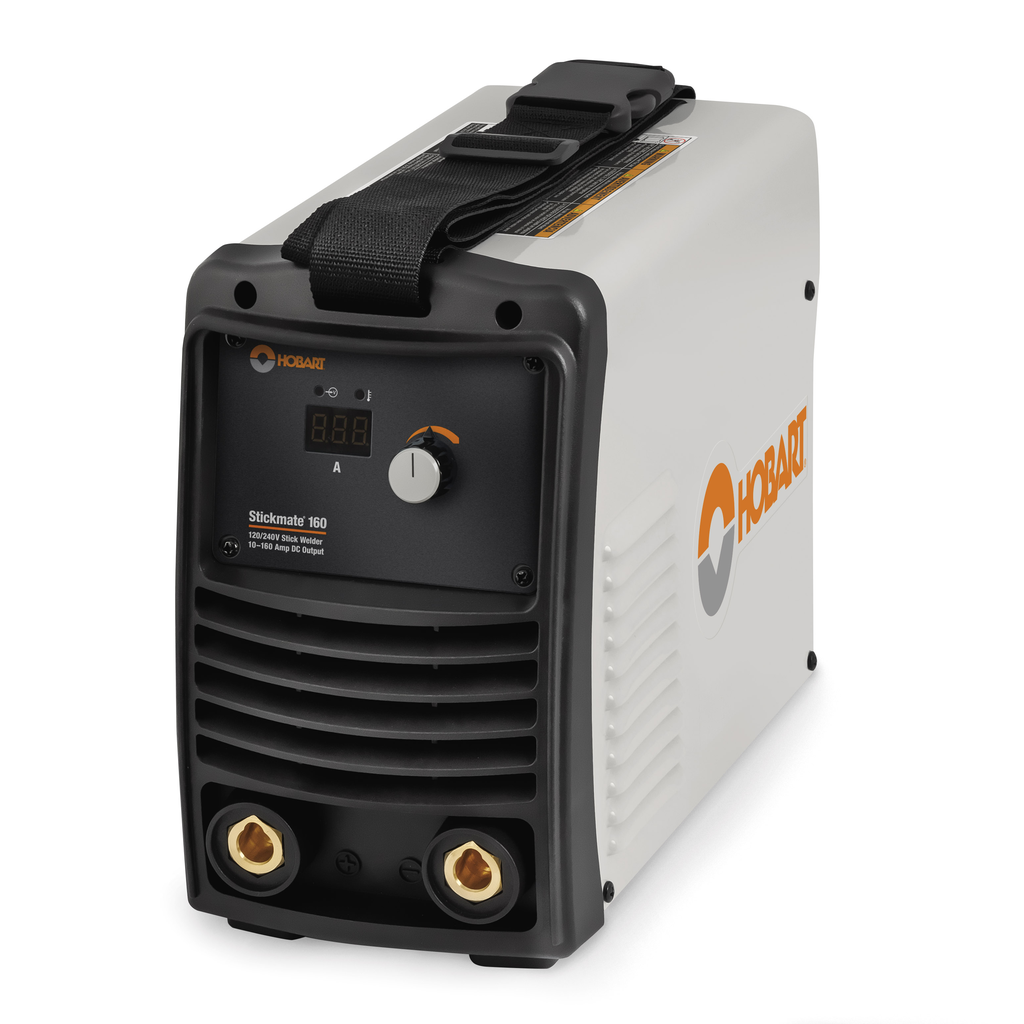

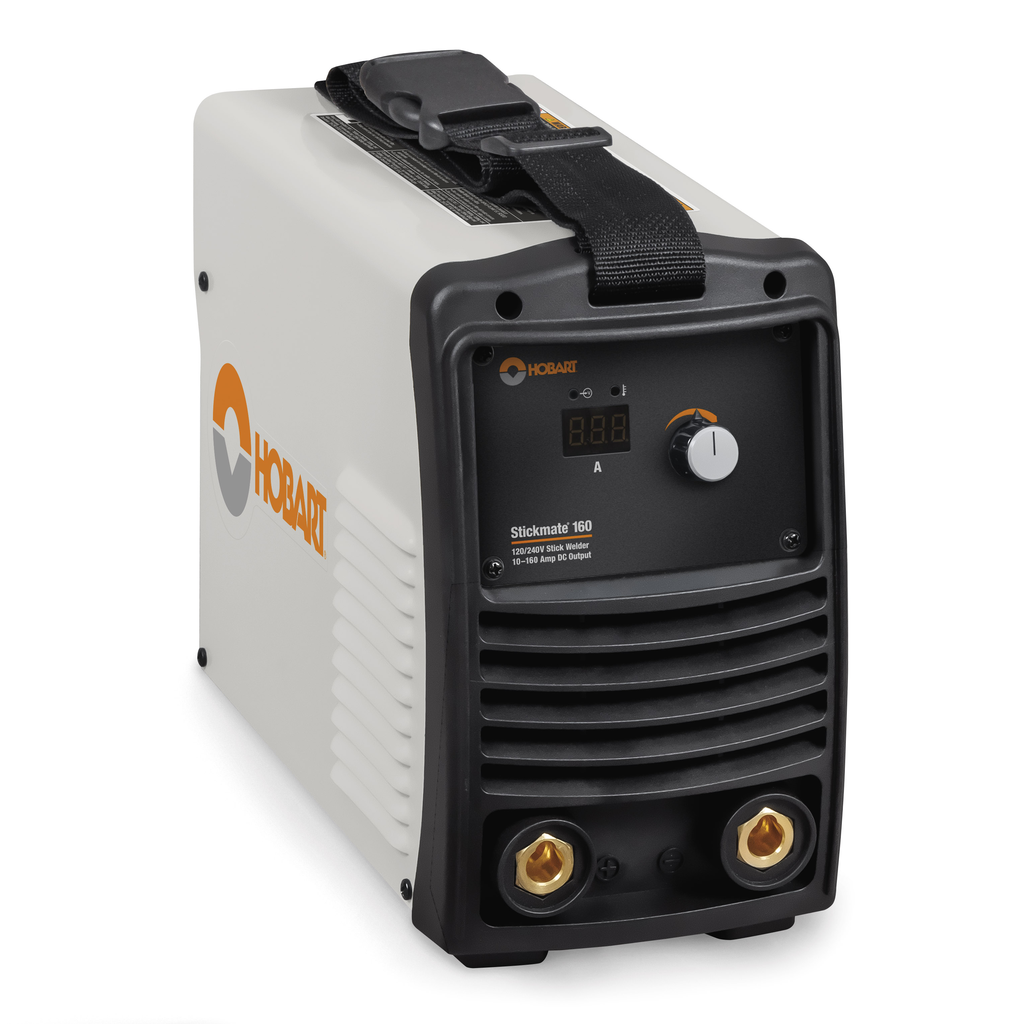

Stickmate 160 is a dependable, portable, powerful, DC stick welder. Welds up to 3/8", offers dual-input voltage Multi-Voltage Plug (MVP) operating on 120V or 240V input power and up to 160 amps output power. Learn More.

Features

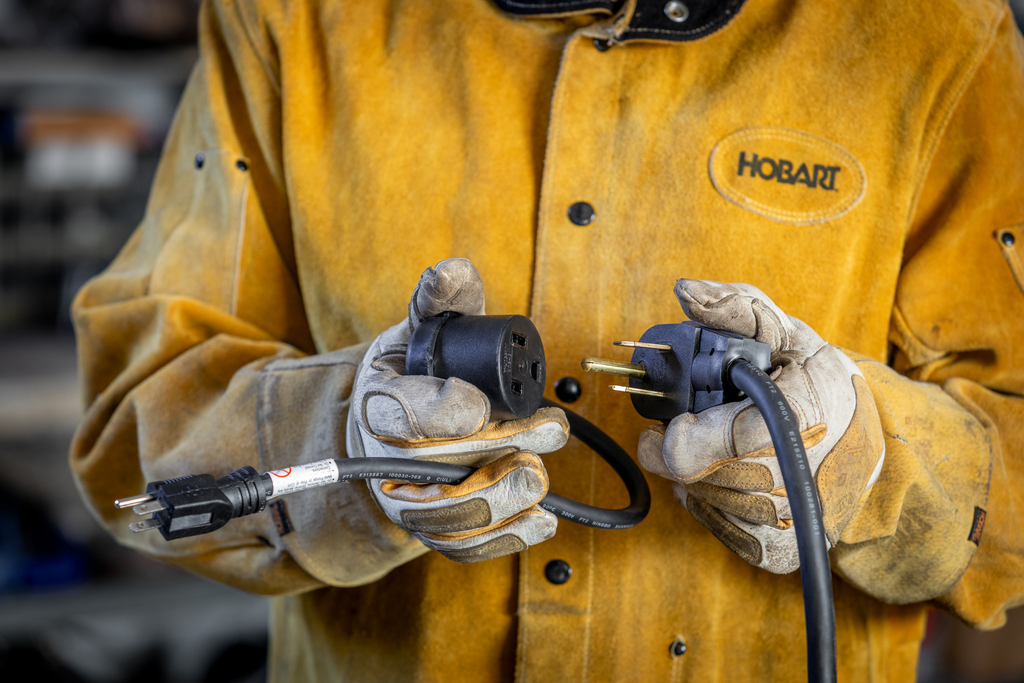

• Allows you to connect to 120 or 240V receptacles without tools.
• Precise and accurate amperage control that adjusts output by one-amp increments.

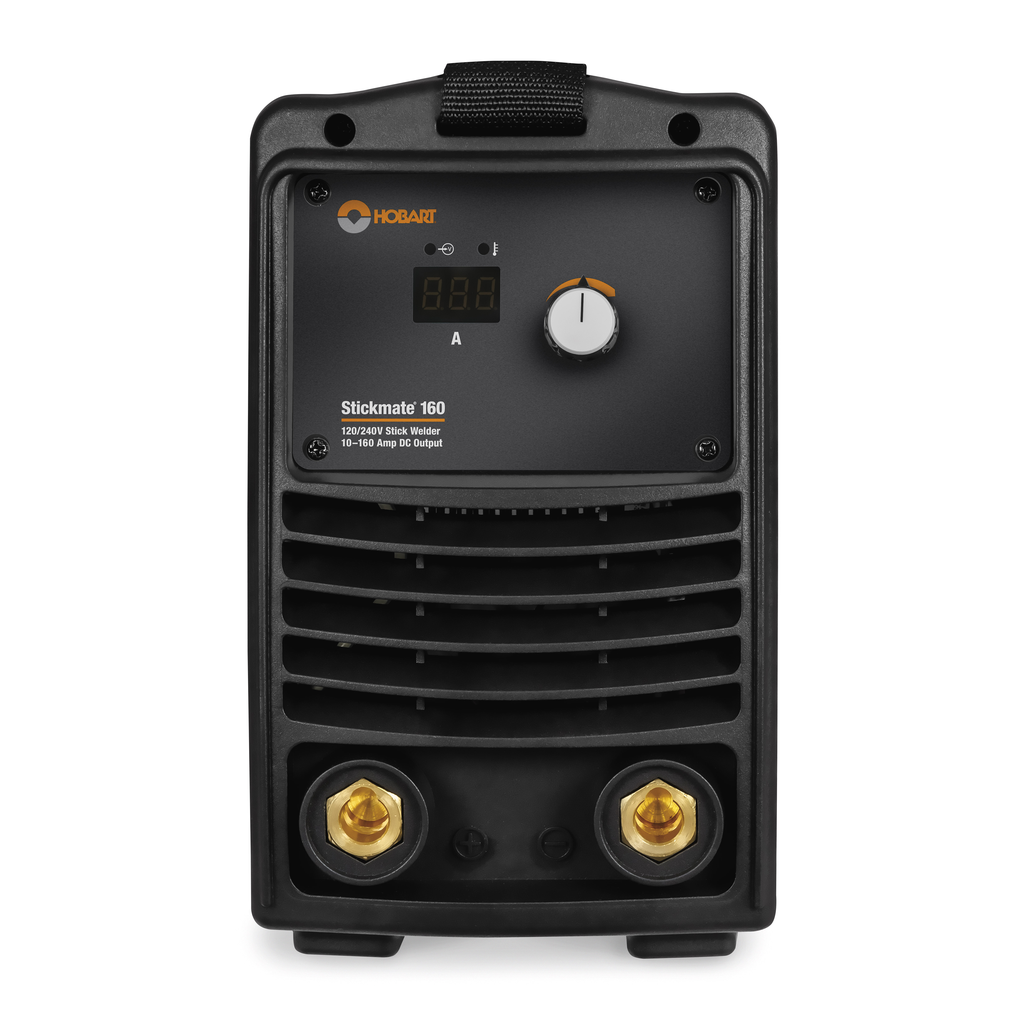

• Digital segmented display and single knob increase fine tuning and reduce complexity when setting weld parameters.
• Easy for you to carry and move.

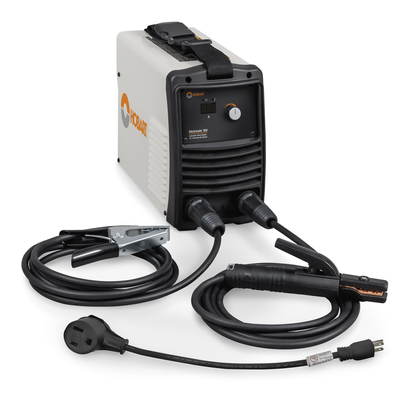

Includes

• 6.5 ft. (2 m) power cord with MVP plugs for 120V and 240V
• 10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
• 10 ft. (3 m) electrode cable with heavy-duty holder

• Amperage: 10-160 A
• Voltage: 110/115/120 V, 220/230/240 V
• Welding Amperage Range: 10-160 A
• Rated Output: 120 V: 80 A @ 15% duty cycle, 240 V: 160 A @ 15% duty cycle
• Max Open Circuit Voltage: 95 VDC
• Input Frequency: 50/60 Hz
• Input Phase: 1-Phase
• Current Type: DC
• Weld Output: 10-160 A
• Weld Capacity: 3/8 in
• Width: 6.3 in
• Length: 12.6 in
• Height: 10.24 in
• Weight: 10.6 lb
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Country of Origin: China
