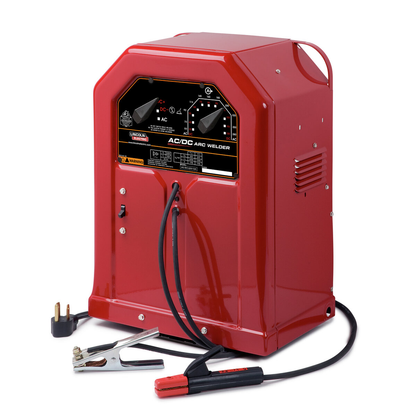

Lincoln Electric, K1297, Stick Welder, 225A AC; 125A DC; 230V, 1-Phase, AC/DC Polarity

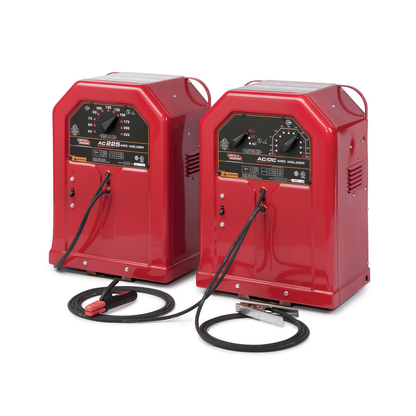

Tackle More Tasks with AC/DC - The AC/DC 225/125 is the same proven design as the renowned AC-225 arc welder, but adds the smoother, more stable DC welding arc. This machine is ideal for farm, shop, and home use where improved arc welding performance is desired.

What's Included?

• (1) AC/DC 225/125 Stick Welder, (1) Insulated Electrode Holder and Cable, (1) Heavy Duty Work Clamp and Cable, (1) Input Cable with Attached Plug

Features

• Easy to Operate - Front mounted AC/DC polarity switch and full range amperage selector switch for accurate and dependable procedure setting.
• 225 Amp AC Output - Capable of welding 3/16 in (4.8 mm) diameter general purpose mild steel electrodes and 5/32 in (4.0 mm) sizes of other electrodes.
• 125 Amp DC Output - Capable of welding most 1/8 in (3.2 mm) electrodes.
• NEMA rated, UL listed and CSA approved.
• Smooth Arc - Easily weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes.

• Amperage AC: 225A
• Amperage DC: 125A
• Output Range: 30-125A DC, 40-225A AC
• Input Voltage: 230V
• Input Current: AC: 50A, DC: 36A
• Input Frequency: 60 Hz
• Input Phase: Single Phase
• Output Mode: Constant Current (CC)
• Max Rating: 225
• Welding Technology: Conventional
• Output Polarity: AC/DC
• Electrode Diameter AC: 3/16 in (4.8 mm)
• Electrode Diameter DC: 1/8 in (3.2 mm)
• Weight: 51.7 kg (114 lb)
• Length: 12 in (305 mm)
• Width: 17.25 in (438 mm)
• Height: 24 in (610 mm)
• Cooling: Air
• Compliance: NEMA, UL Listed, CSA Approved
• Country of Origin: United States
