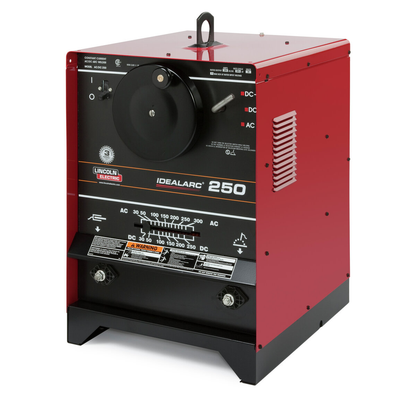

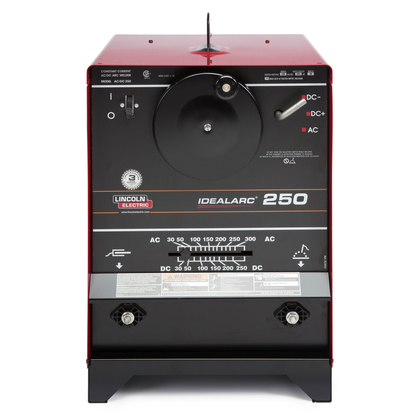

Lincoln Electric, K1053-9, Stick Welder, 250A DC, 300A AC, 1 Phase, Fan-Cooled

The Idealarc 250 is the classic workhorse of the Lincoln Electric stick welding power source line. It produces up to 300 amps of brute AC welding strength and 250 amps of smooth DC welding performance. This welder is ideal for stick, gouging, and TIG welding and can be used with slow hydrogen, stainless steel, hardfacing, aluminum and bronze filler metals. The Idealarc 250 is ideal for industrial production, maintenance and repair, shop and farm applications.

Features

• Outstanding arc stability and built-in stabilizer that provides popout-resistant welding with all AC electrodes.
• Welder is fan-cooled for extra thermal protection.
• Stackable case design allows machines to be stacked 3 high to save valuable floor space.
• Versatile welding range with up to 300 amps AC and 250 amps DC.
• Full range continuous current control dial with current indicator for exact heat required allowing for easy set-up and operation.
• Change polarity with a twist of the wrist: AC, DC+ or DC-.
• Suitable for use with every type of electrode including low hydrogen, stainless steel, hardfacing, aluminum and bronze.

What's Included?

• (1) Idealarc 250 Stick Welder with Power Factor Capacitors

• Max Output Amperage: 300A
• Rated Output: 250A/30V/30%
• Output Range: 35-300A AC, 40-250A DC
• Polarity: AC, DC+, DC-
• Input Voltage: 208/230/460V, 1 Phase, 60 Hz
• Input Current: 75/68/34A, 95/86/43A
• Output Mode: CC
• Welding Technology: Conventional
• Welding Types: Stick, Gouging, TIG
• Cooling: Fan-cooled Air
• Current Control: Continuous dial with indicator
• Product Dimensions: 27 in H x 19 in W x 21.5 in L (686 mm H x 483 mm W x 546 mm L)
• Product Weight: 350 lb (158.76 kg)
• Material Compatibility: Low hydrogen, Stainless steel, Hardfacing, Aluminum, Bronze
• Country of Origin: United States
• Warranty Length: 3 Years
