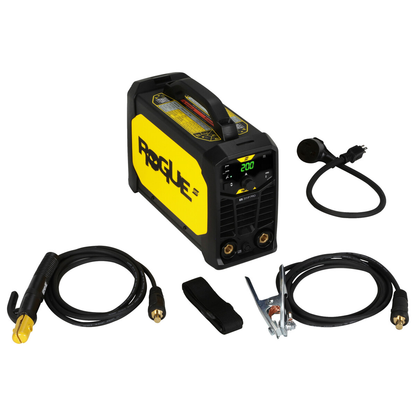

ESAB, 0705002022, Stick Welder, 200 A Max, 10 ft Lead Cable, Dual Voltage 120-230 VAC, Air-Cooled, TIG/SMAW Process

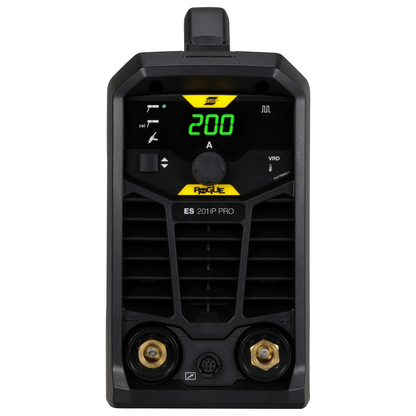

The Rogue ES is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high performance power electronics and digital control; ensuring a precise consistent arc. The Rogue ES provides smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and non alloyed steel, stainless steel, and cast iron. Featuring Arc Force and Hot Start settings for more control over your arc. Digital microprocessor offers more control over all arc parameters and provides best-in-class welding performance. The Rogue ES 201iP PRO weld electrodes up to 4.0 mm (5/32 in.) and Rogue ES 151iP PRO weld 3.2 mm (1/8 in.) electrodes. New Pulse SMAW functionality enhances Rogue's performance and improves the heat input control, to minimize thin gauge materials distortion , facilitate out-of-position welding with no undercuts and reducing spatter, thus helping to effectively avoid a number of welding defects. Rogue ES can TIG weld mild-steel or stainless steel via "LIVE TIG" functionality (TIG torch sold separately) for even more versatility.

Features

• Dual voltage input power – flexibility to use on either 120V or 230V outlets
• Superior Arc characteristics – smooth and stable performance (including special mode for stick 6010)
• PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 300 feet (12 AWG size)
• Generator Compliant – suitable for use with generators. (7kW recommended)
• Optional analogue remote control (Remote sold separately MMA 4)
• Easy to Use – and adjust a wide range of arc parameters for more control over your weld
• Pulse SMAW functionality - improves heat input control, minimizes distortion of thin materials and helps reduce spatter for higher quality welds
• Superior Portability - lightweight welder with carrying handle for easier transport on the jobsite, garage or in the shop.
• Robust Design – IP23S designed for fabrication shop or site application

Applications

• Repair and Maintenance
• Agricultural Equipment
• Civil Construction
• Industrial and General Fabrication

Accessories

• TIG Foot Control, 4.5 m (15 ft) cable and 8-pin connector W4014450
• Heliarc SR-17V TIG Torch, Air-cooled with Gas-valve, 2.4 mm (3/32 in.), 7.6 m (25 ft) 0700026615
• Rogue Plastic Case 0700500085
• Electrode Holder 200 A and Lead Assembly, 4 m (13 ft), 50 mm WS200E13
• GRF400-580 Flowmeter Regulator 0781-2701
• Power Adapter,230 V to 120 V, 15 A (2 ft, N6-50R to N5-15P W4014000
• Ground Clamp 200 A and Lead Assembly, 3 m (10 ft), 50 mm WS200G10
• Heliarc SR-17V TIG torch, Air-cooled with Gas-valve, 2.4 mm (3/32 in.), 3.8 m (12.5 ft) 0700026614

• Input Voltage: 120-230 VAC
• Amperage: 10 - 200 A
• Duty Cycle: STICK 120V: 70 A @ 60%, 230V: 129 A @ 60%; TIG 120V: 90 A @ 60%, 230V: 129 A @ 60%
• Process: STICK (SMAW), TIG (GTAW)
• Phase: Single
• Frequency: 50/60 Hz
• Cooling Method: Air-Cooled
• Electrode Size: up to 4.0 mm (5/32 in)
• Torch Size: 2.4 mm (3/32 in)
• Cable Length: 3 m (10 ft)
• Physical Size: 15.8 x 6 x 10.4 in.
• Country of Origin: China
