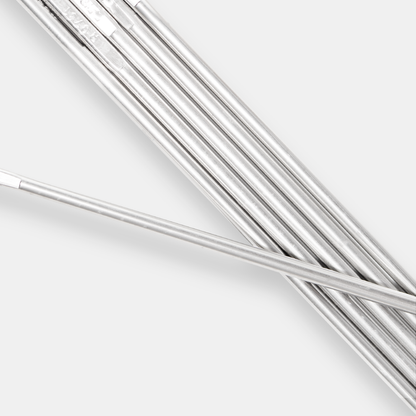

Washington Alloy, TT 316/316L 06, Welding Electrode, ER316/316L, 1/8 in, 36 in, 70,000 psi min, Intergranular corrosion resistant

ER316L is similar to ER316 but contains an average .02% carbon producing a weld deposit with excellent resistance against intergranular corrosion caused by carbide precipitation. ER316L is used for welding AISI types 316L and 318 that may be exposed to organic and inorganic acids.

• Type: ER316/316L
• Diameter: 1/8 in.
• Length: 36 in
• Tensile Strength: 70,000 psi min
• Elongation: 30% min
• Material Composition: Carbon 0.03% max, Manganese 1.0-2.5%, Silicon 0.30-0.65%, Molybdenum 2.0-3.0%, Nickel 11.0-14.0%, Chromium 18.0-20.0%, Phosphorus 0.03% max, Sulfur 0.03% max, Copper 0.75% max
• Carbon Content: 0.02%
• Application: Welding AISI types 316L, 318
• Corrosion Resistance: Intergranular corrosion resistant
• Compliance: ANSI/AWS A5.9, ASME SFA 5.9
