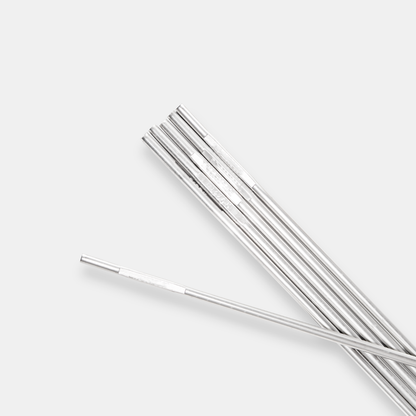

Washington Alloy, TT 2209 04, Welding Wire, 1/16 in; 36 in, Stainless Steel Duplex, ER2209

ER2209 is a stainless steel alloy wire designed for welding AISI316 stabilized and 316Ti or 318 austenitic stainless steels. ER2209 produces duplex stainless steel weld deposits with a nearly balanced austenite-ferrite microstructure. ER2209 weld deposits exhibit high tensile strength, improved resistance to stress corrosion cracking and greater resistance to pitting than conventional austenitic grades of stainless steel. ER2209 is designed for welding 22% chromium duplex stainless steels such as ASMEASTM A-182, A-276, A-479, A-789, A- 790, and A-890. 3RE60®, 44LN® and Ferralium 255® are proprietary duplex stainless steel base metals in the 22% Cr category available commercially that can be joined successfully with ER2209. Non-proprietary grades 2205 and 2304 duplex stainless steels are also readily available, and can be joined successfully with ER2209.

• Tensile Strength: 100,000 psi min
• Elongation: 20% min
• Wire Diameter: 1/16 in.
• Length: 36 in
• Size: 1/16 in.
• Weight: 10 lb
• Material: Stainless Steel, Duplex
• Chromium Content: 22%
• Carbon Content: 0.03% max
• Manganese Content: 0.50-2.00%
• Silicon Content: 0.90% max
• Molybdenum Content: 2.5-3.5%
• Nickel Content: 7.5-9.5%
• Phosphorus Content: 0.03% max
• Sulfur Content: 0.03% max
• Copper Content: 0.75% max
• Nitrogen Content: 0.08-0.20%
• Pitting Resistance Equivalent Number (PREN): >35
• Alloy / Product Title: ER2209
• AWS A5.9 Class: ER2209
• Compliance: ANSI/AWS A5.9, ASME SFA 5.9, ISO 14343A, ISO 14343B
