Harris Products Group, 317LT30, TIG Welding Alloy, Stainless Steel 317L, 0.03% C max, 87,000 psi tensile, High Molybdenum

317L stainless steel TIG (GTAW) welding alloy content is somewhat higher than ER316, particularly in molybdenum. The 0.03% maximum carbon content increases resistance to intergranular corrosion due to carbide precipitation. 317L provides severe corrosion resistance to sulfuric and sulfurous acids and their salts. This alloy is often used in the chemical and paper industries. Conforms to AWS A5.9 ER 317L.

Features

• 47% elongation (as welded)
• 55,000 psi yield strength (as welded)
• 160 HB Brinell hardness (as welded)
• 70% reduction of area (as welded)
• Lower carbon content (0.03% maximum) resists carbide precipitation that can cause weld corrosion
• 87,000 psi tensile strength (as welded)
• 105 ft./lb. @ room temperature Charpy V (as welded)
• Conforms to ANSI/AWS A5.9 & ASME SFA 5.9 ER 317L
• 85 HRB Rockwell B hardness (as welded)

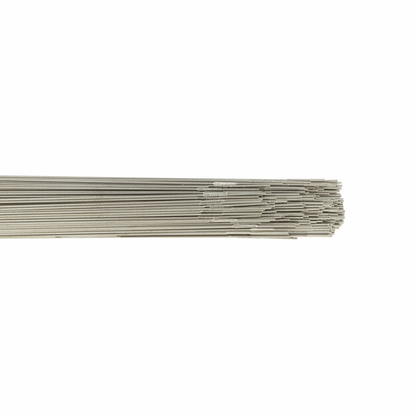

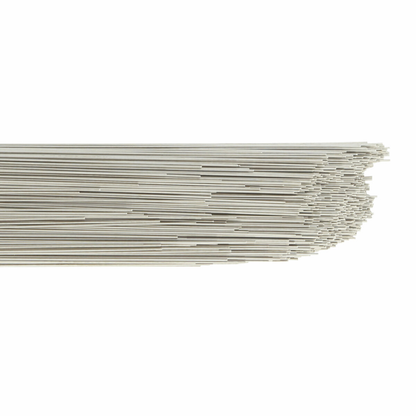

• Stainless steel 317L TIG welding rod welds high alloyed molybdenum-bearing stainless steel containing 0.03% maximum carbon content

• Yield Strength: 55,000 psi
• Tensile Strength: 87,000 psi
• Elongation: 47%
• Reduction of Area: 70%
• Charpy V Impact: 105 ft-lb @ room temp.
• Brinell Hardness: 160 HB
• Rockwell Hardness: 85 HRB
• Weight: 1.02 lbs
• Material: Stainless Steel 317L
• Carbon Content: 0.03% max
• Chromium: 18.5-20.5%
• Nickel: 13.0-15.0%
• Manganese: 1.0-2.5%
• Copper: 0.75% max
• Silicon: 0.30-0.65%
• Phosphorus: 0.03% max
• Sulfur: 0.03% max
• Molybdenum: 3.0-4.0%
• Iron: Balance
• Normal Ferrite Range: 5-12
• Compliance: ANSI/AWS A5.9, ASME SFA 5.9 ER 317L
