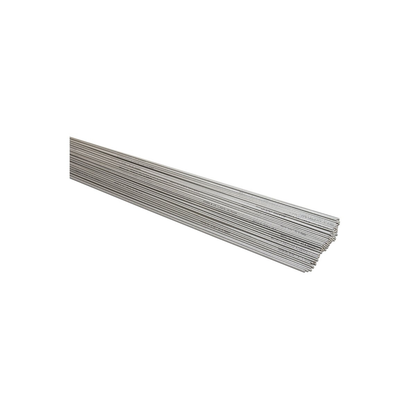

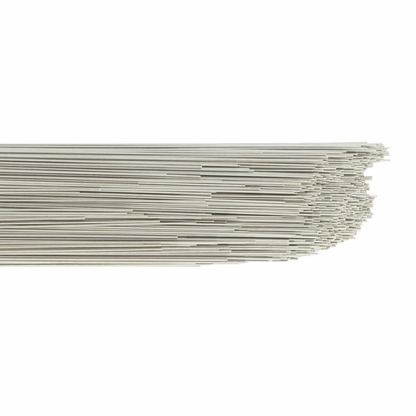

Harris Products Group, 316ST5011POP, TIG Welding Rod, Stainless Steel 316LSi, 0.65-1.00% Silicon, 58,000 psi Yield Strength

316LSi stainless steel TIG (GTAW) welding alloy has similar usage as TIG 316L, but the 0.65-1.00% silicon content improves wash and wetting behavior in the gas shielded welding processes. Conforms to AWS A5.9.

Features

• 58,000 psi yield strength (as welded)
• Stainless steel 316LSi TIG welding rod welds low carbon molybdenum-bearing austenitic alloys
• 95 ft./lb. @ room temperature Charpy V (as welded)
• Lower carbon content (0.03% maximum) resists carbide precipitation that can cause weld corrosion
• Higher 0.65-1.00% silicon content improves the wetting and washing behavior of the weld metal, yielding a smoother bead in the gas-shielded welding process
• 160 HB Brinell hardness (as welded)
• Conforms to ANSI/AWS A5.9 & ASME SFA 5.9 ER 316LSi
• 88,000 psi tensile strength (as welded)
• 37% elongation (as welded);68% reduction of area (as welded)
• 85 HRB Rockwell B hardness (as welded)

• Weight: 1.1 lbs
• Yield Strength: 58,000 psi
• Tensile Strength: 88,000 psi
• Elongation: 37%
• Reduction of Area: 68%
• Charpy V Impact: 95 ft-lb @ room temp.
• Brinell Hardness: 160 HB
• Rockwell Hardness: 85 HRB
• Carbon Content: 0.03% max.
• Chromium Content: 18.0-20.0%
• Nickel Content: 11.0-14.0%
• Manganese Content: 1.0-2.5%
• Copper Content: 0.75% max.
• Silicon Content: 0.65-1.00%
• Phosphorus Content: 0.03% max.
• Sulfur Content: 0.03% max.
• Molybdenum Content: 2.0-3.0%
• Iron Content: Balance
• Normal Ferrite Range: 5-12
• Compliance: ANSI/AWS A5.9, ASME SFA 5.9 ER 316LSi
