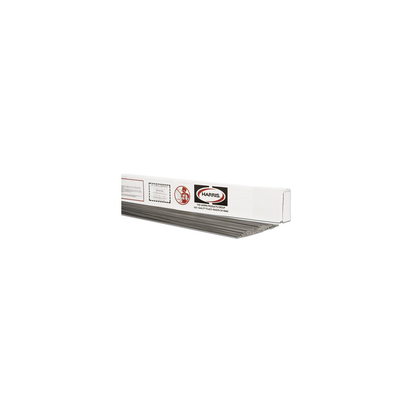

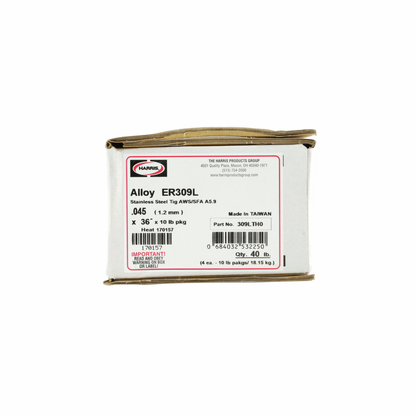

Harris Products Group, 309LTF0, TIG Welding Alloy, 309L, Stainless Steel, 58,000 psi Yield Strength, 87,000 psi Tensile Strength, 0.03% Carbon Content

309L stainless steel TIG (GTAW) welding alloy has similar usage as 309, but the 0.03% maximum carbon content, reduces the possibility of carbide precipitation that can cause weld corrosion, to increase resistance to intergranular corrosion. Used for welding similar alloys in wrought or cast form. Occasionally used for welding 18-8 base metals when severe corrosion conditions exist, and, at times, welding dissimilar steels. Conforms to AWS A5.9. Packaged for portable welding machines.

Features

• Conforms to ANSI/AWS A5.9 & ASME SFA 5.9 ER 309L
• Stainless steel 309L TIG welding rod welds type 304 and similar base metals in wrought or cast form where severe conditions may exist
• 58,000 psi yield strength (as welded)
• 40% elongation (as welded);60% reduction of area (as welded)
• 85 HRB Rockwell B hardness (as welded)
• 160 HB Brinell hardness (as welded)
• Lower carbon content (0.03% maximum) resists carbide precipitation that can cause weld corrosion
• 105 ft./lb. @ room temperature Charpy V (as welded)
• Sometimes welds dissimilar steels
• 87,000 psi tensile strength (as welded)

• Weight: 1.02 lbs
• Yield Strength: 58,000 psi
• Tensile Strength: 87,000 psi
• Elongation: 40%
• Reduction of Area: 60%
• Charpy Impact: 105 ft-lb @ room temp.
• Brinell Hardness: 160 HB
• Rockwell Hardness: 85 HRB
• Material: Stainless Steel 309L
• Carbon Content: 0.03% max
• Chromium: 23.0-25.0%
• Nickel: 12.0-14.0%
• Manganese: 1.0-2.5%
• Copper: 0.75% max
• Silicon: 0.30-0.65% max
• Phosphorus: 0.03% max
• Sulfur: 0.03% max
• Molybdenum: 0.75% max
• Iron: Balance
• Normal Ferrite Range: 5-12
• Compliance: ANSI/AWS A5.9, ASME SFA 5.9 ER 309L
