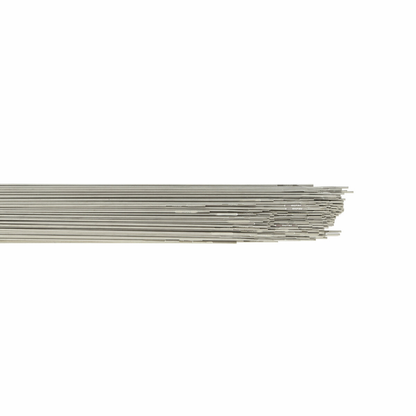

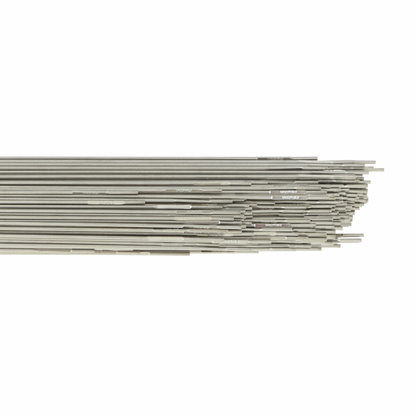

Harris Products Group, 174PH50, TIG Welding Rod, ER630 (17-4PH), 160,000 psi Tensile Strength, Martensitic Alloy, Corrosion Resistant

ER630 (17-4 PH) stainless steel TIG (GTAW) welding alloy is a martensitic precipitation-hardening alloy that provides an outstanding combination of high strength, good corrosion resistance, good mechanical properties at temperatures up to 600°F (316°C), good strength in both base metal and welds, and short-time, low-temperature heat treatments that minimize warpage and scaling. ER630 (17-4PH) is an outstanding choice for applications requiring high strength and hardness, as well as corrosion resistance. It is more cost effective than many high nickel, non-ferrous alloys. ER630 (17-4PH) plate under 4 in. can be welded without pre-heating, but interpass up to 300°F (149°C) are commonly used. Conforms to ANSI/AWS A5.9.

Features

• Conforms to ANSI/AWS A5.9 & ASME SFA 5.9 ER 630
• High strength, good corrosion resistance and good mechanical properties
• 327 HB Brinell hardness (as welded)
• 108 HRB Rockwell B hardness (as welded)
• Martensitic precipitation-hardening alloy that can also be used on stainless steel
• 160,000 psi tensile strength (as welded)
• 145,000 psi yield strength (as welded)
• 5.0% elongation (as welded)
• Stainless steel ER630 (17-4PH) TIG welding rod welds ASTM A-564 Type 630 alloys

• Weight: 1.02 lbs
• Material: Martensitic precipitation-hardening stainless steel
• Brinell Hardness: 327 HB (as welded)
• Rockwell Hardness: 108 HRB (as welded)
• Tensile Strength: 160,000 psi (as welded)
• Yield Strength: 145,000 psi (as welded)
• Elongation: 5.0% (as welded)
• Operating Temperature: up to 600 F (316 C)
• Preheat Temperature: up to 300 F (149 C) interpass for plates under 4 in
• Compliance: ANSI/AWS A5.9, ASME SFA 5.9 ER 630
