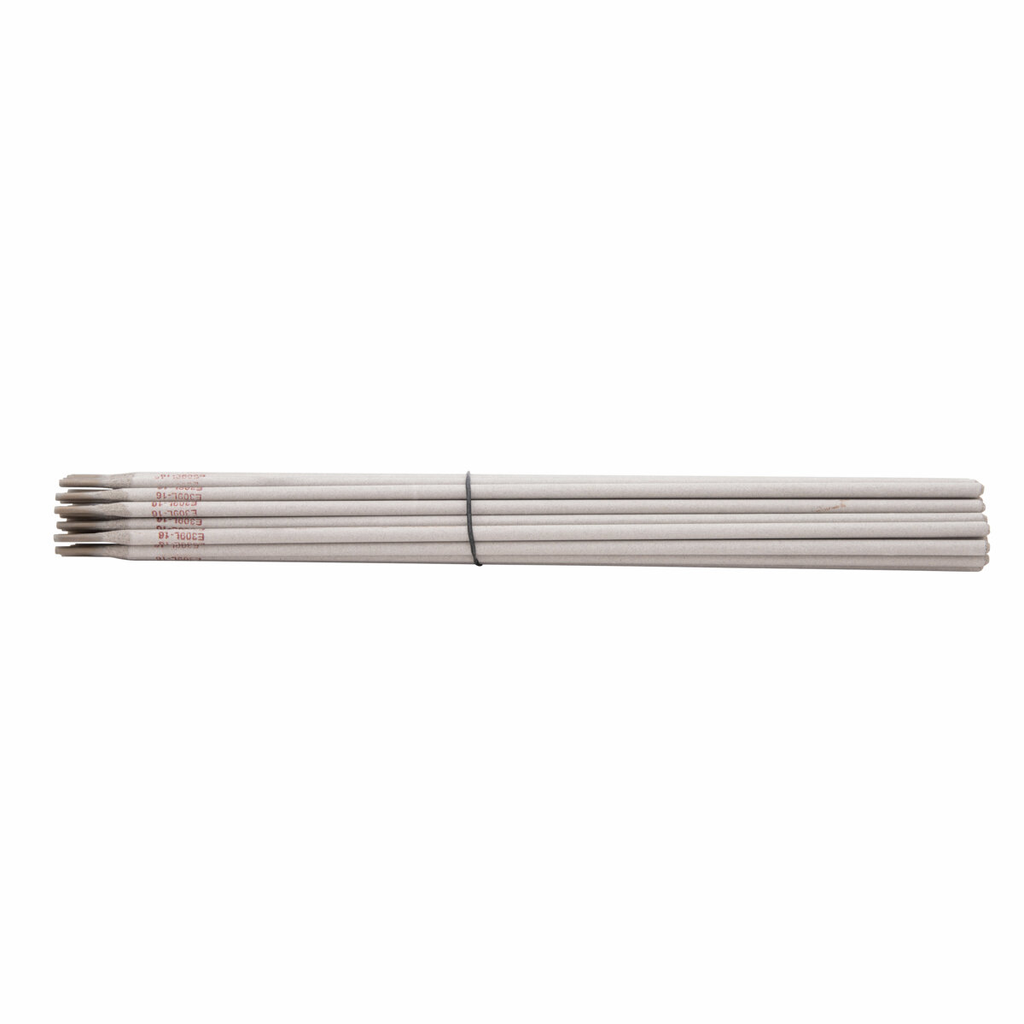

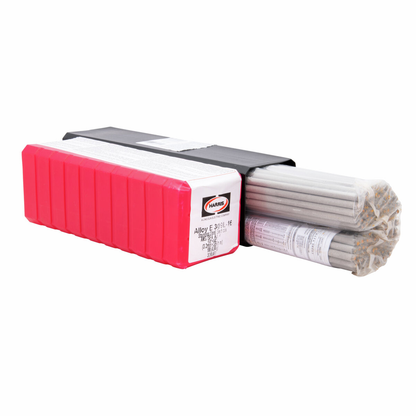

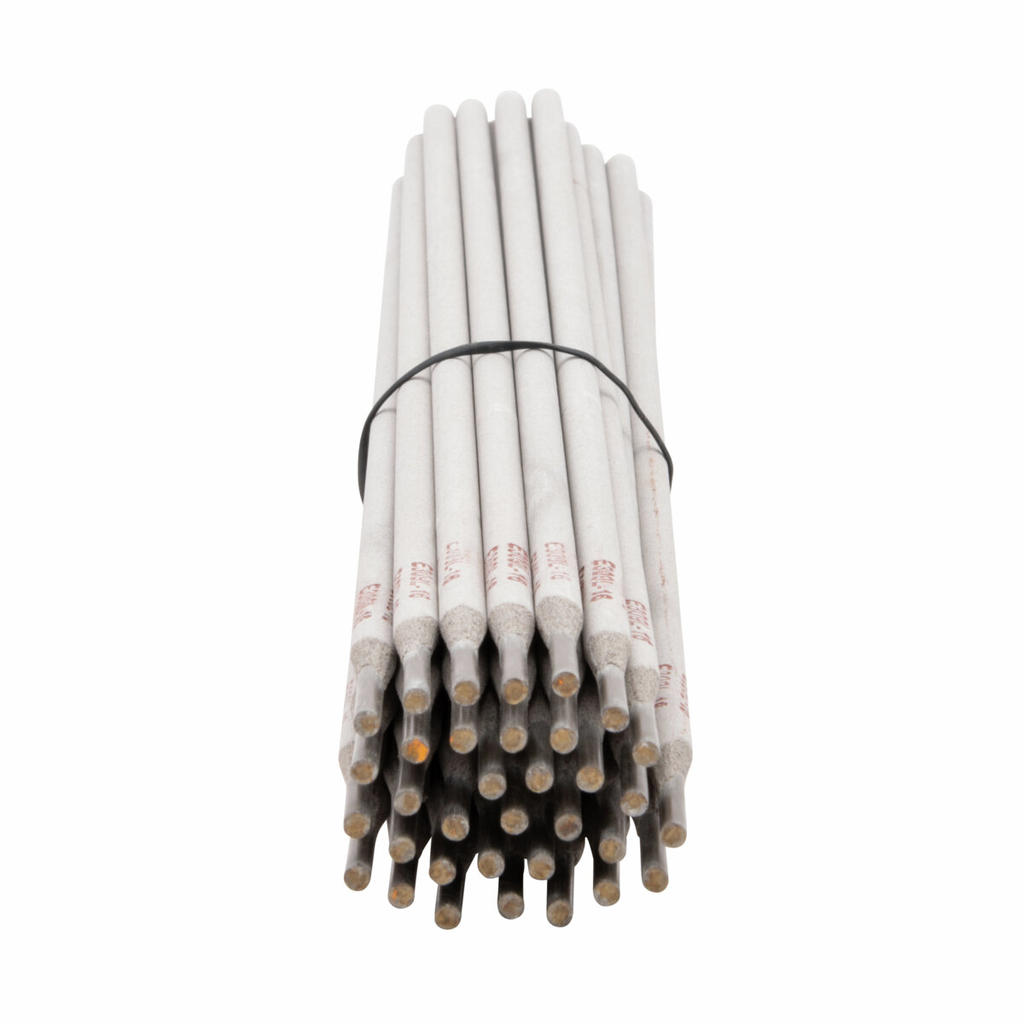

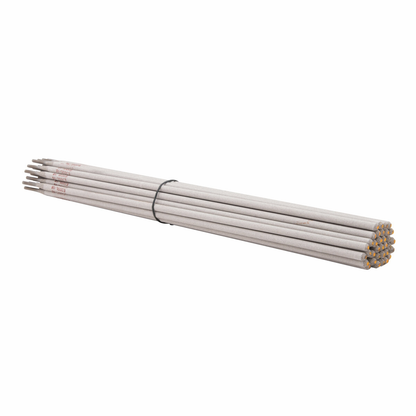

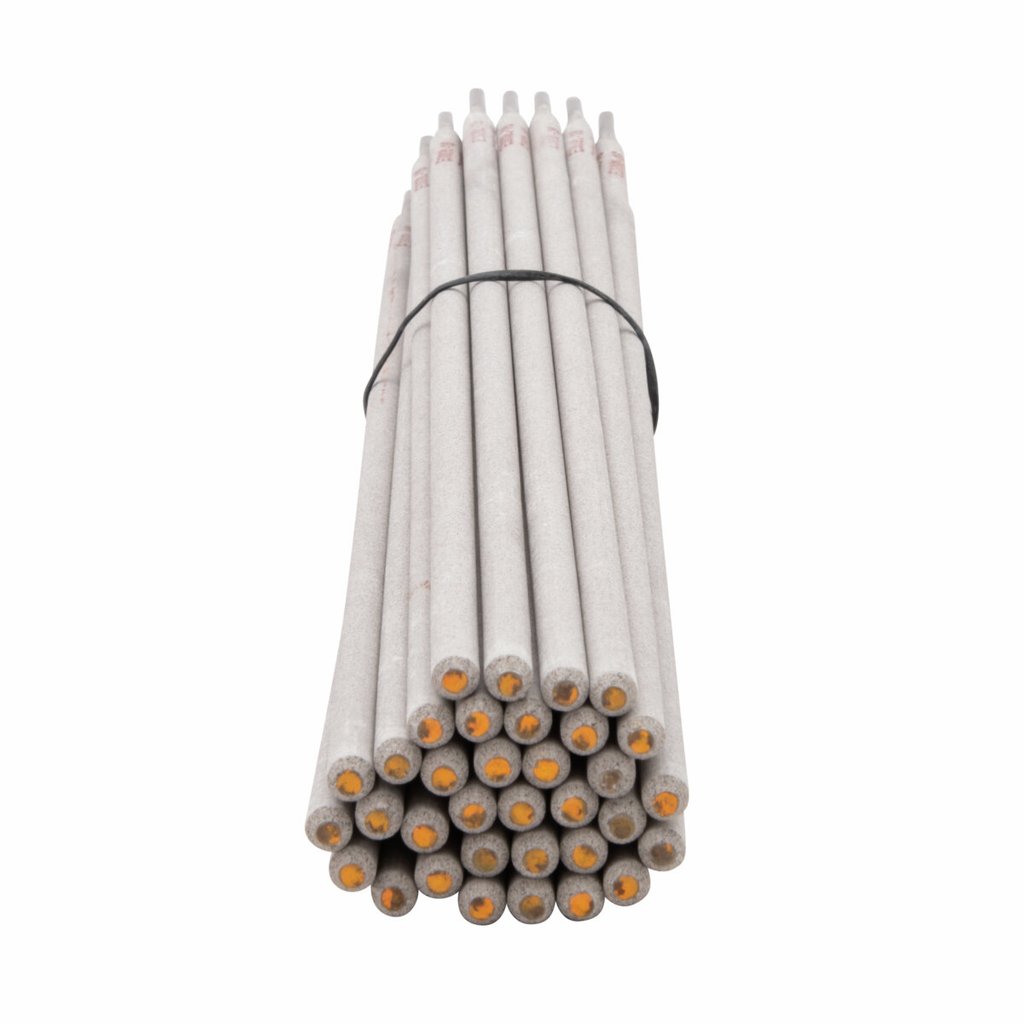

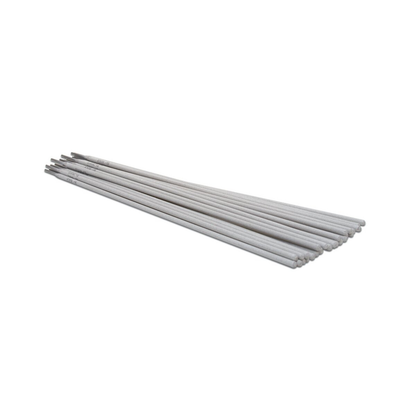

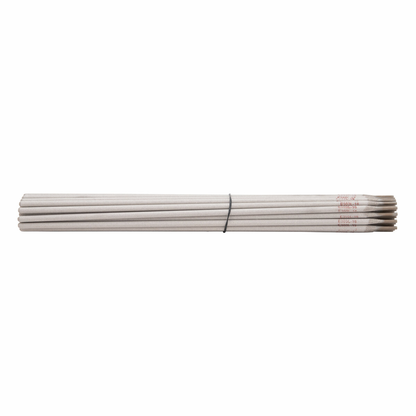

Harris Products Group, 309L670, Stick Electrode, 309L-16; 0.04% C max, 65,000 psi yield, 88,000 psi tensile

309L-16 stainless steel stick (SMAW) electrode has similar usage as 309, but the 0.04% maximum carbon content increases resistance to intergranular corrosion. Conforms to AWS A5.4.

Features

• Titania-type coating for either alternating current (AC) or direct current (DC) reverse polarity
• 37% elongation (as welded)
• 65,000 psi yield strength (as welded)
• The carbon content (0.04% maximum) increases resistance to intergranular corrosion by reducing carbide precipitation
• Conforms to ANSI/AWS A5.4 & ASME SFA 5.4 E 309L-16
• 88,000 psi tensile strength (as welded)
• Stainless steel 309L-16 electrode welds base metals of similar composition in wrought or cast form
• Can sometimes weld dissimilar steels
• Often used to weld type 304 and similar base metals (and L series) where corrosive conditions exist

• Weight: 1.02 lbs
• Material: Stainless Steel 309L
• Coating: Titania
• Welding Process: SMAW (Stick)
• Polarity: AC or DC reverse polarity
• Yield Strength: 65,000 psi
• Tensile Strength: 88,000 psi
• Elongation: 37%
• Maximum Carbon Content: 0.04%
• Compliance: ANSI/AWS A5.4, ASME SFA 5.4 E 309L-16
