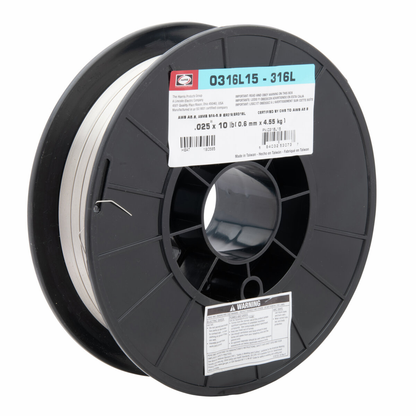

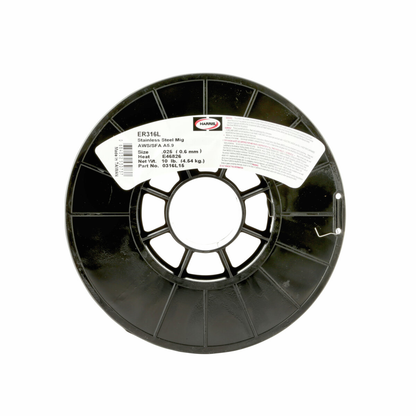

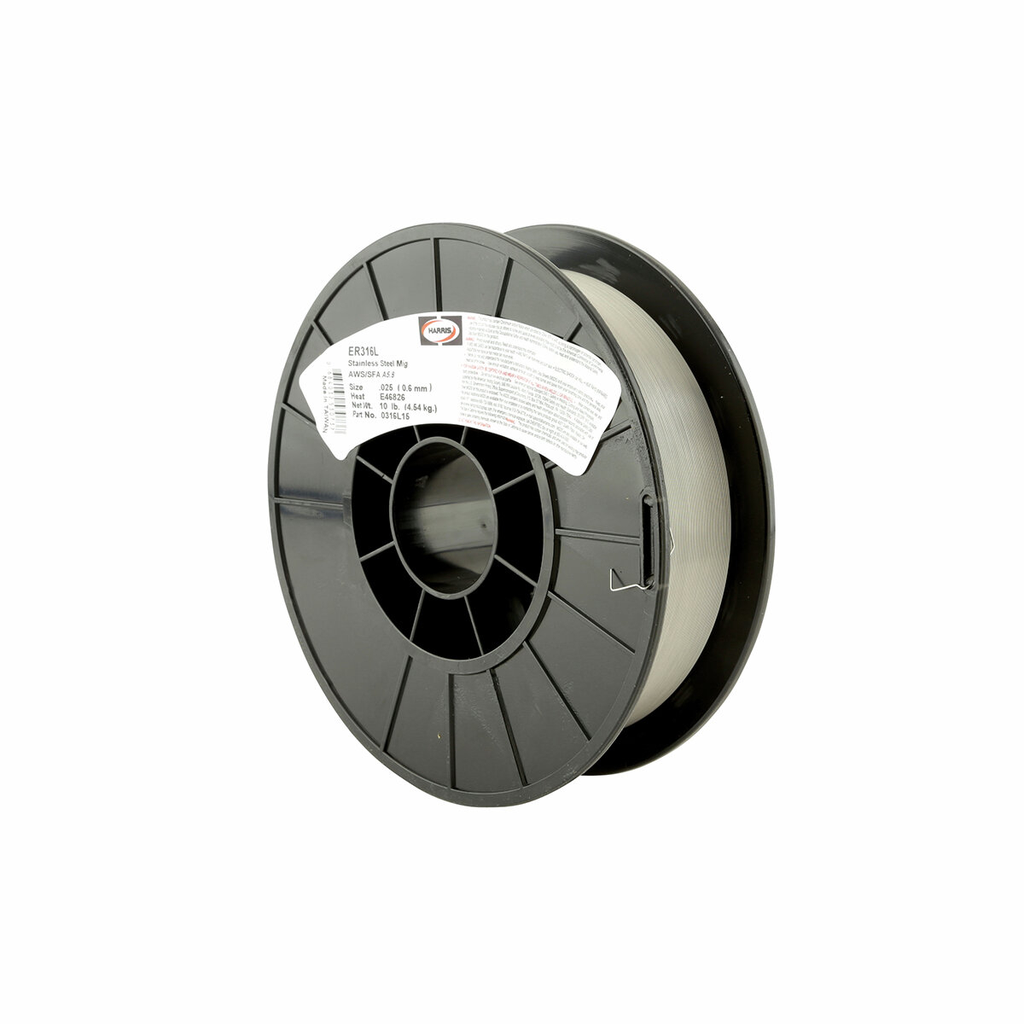

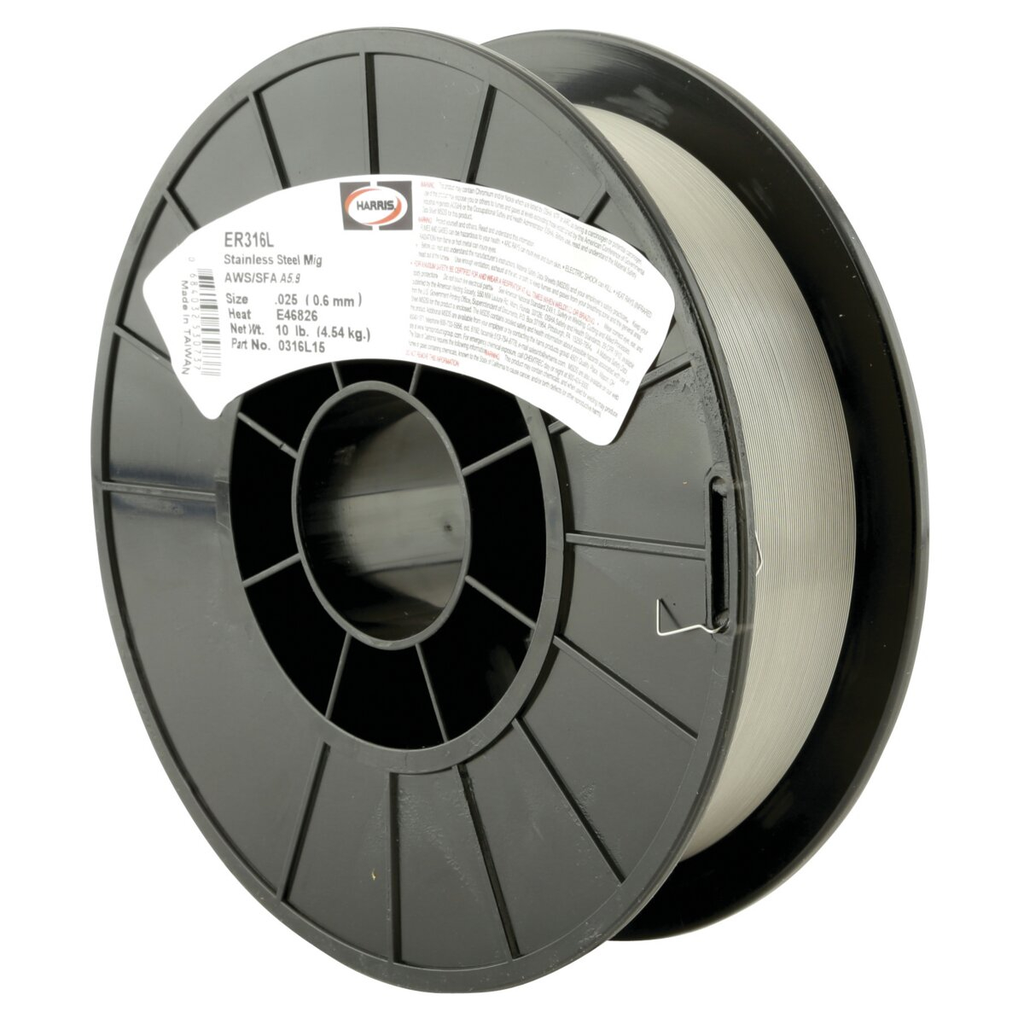

Harris Products Group, 0316L15, MIG Welding Wire, Stainless Steel 316L; 0.03% C max, 88,000 psi TS, 35% elongation

316L stainless steel MIG (GMAW) welding wire has similar usage as MIG 316, but the 0.03% maximum carbon content increases resistance to intergranular corrosion. Used for welding steels alloyed with molybdenum. Conforms to AWS A5.9. Packaged for use in portable welding machines.

Features

• 59,000 psi yield strength (as welded)
• Welds similar alloys containing (0.03% maximum) carbon content
• 35% elongation (as welded);40% reduction of area (as welded)
• Stainless steel 316L MIG welding wire welds molybdenum-bearing alloys
• 80 ft./lb. @ room temperature Charpy V (as welded)
• 160 HB Brinell hardness (as welded)
• 85 HRB Rockwell B hardness (as welded)
• Lower carbon content resists intergranular corrosion
• 88,000 psi tensile strength (as welded)
• Conforms to ANSI/AWS A5.9 & ASME SFA 5.9 ER 316L

• Weight: 1.12 lbs
• Material: 316L Stainless Steel
• Yield Strength: 59,000 psi
• Tensile Strength: 88,000 psi
• Elongation: 35%
• Reduction of Area: 40%
• Charpy V Impact: 80 ft/lb at room temp.
• Brinell Hardness: 160 HB
• Rockwell Hardness: 85 HRB
• Carbon Content: 0.03% max.
• Chromium Content: 18.0-20.0%
• Nickel Content: 11.0-14.0%
• Manganese Content: 1.0-2.5%
• Copper Content: 0.75% max.
• Silicon Content: 0.30-0.65%
• Phosphorus Content: 0.03% max.
• Sulfur Content: 0.03% max.
• Molybdenum Content: 2.0-3.0%
• Ferrite Range: 5-12
• Compliance: ANSI/AWS A5.9, ASME SFA 5.9 ER 316L
