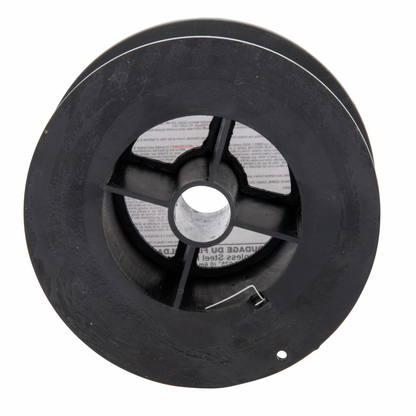

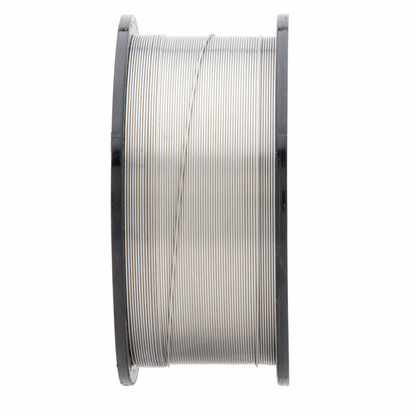

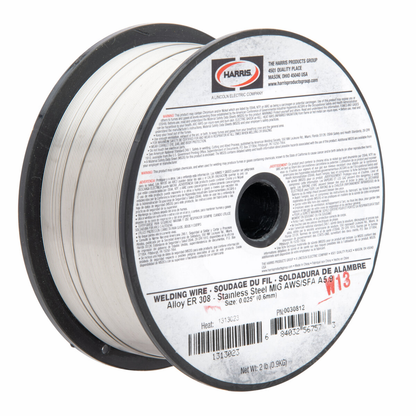

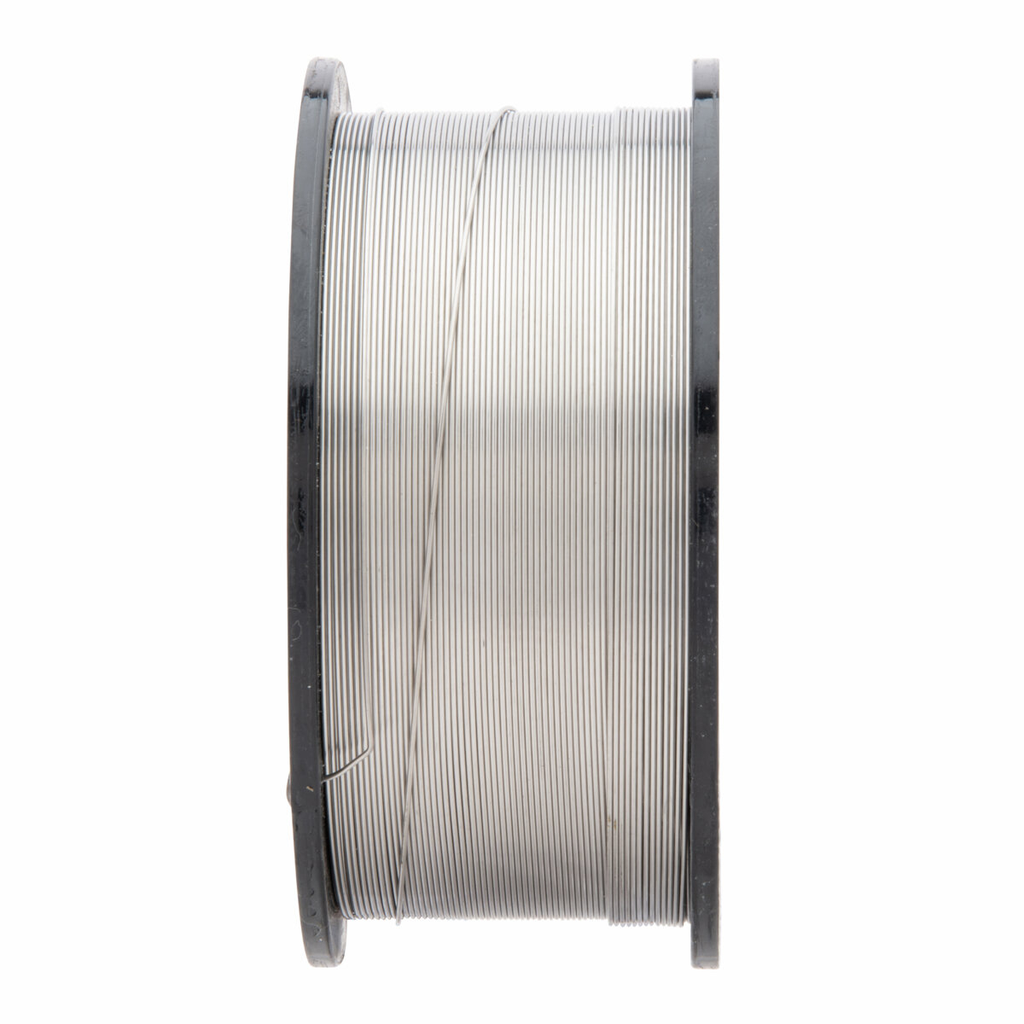

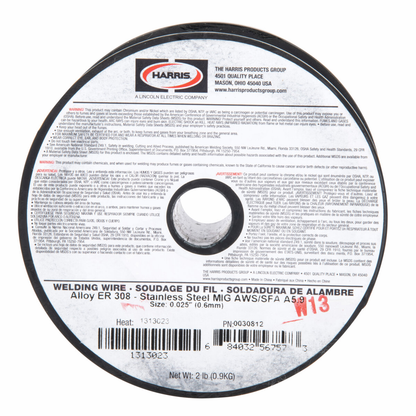

Harris Products Group, 0030812, MIG Welding Alloy, 308 Stainless Steel, 90,000 psi Tensile Strength, Conforms to AWS A5.9

308 stainless steel MIG (GMAW) welding wire is most frequently used for base metals of similar composition. Used for welding metals of similar composition, especially 304. Conforms to AWS A5.9.

Features

• 90,000 psi tensile strength (as welded)
• Conforms to ANSI/AWS A5.9/A5.9M:2017 & ASME SFA 5.9 ER 308
• 180 HB Brinell hardness (as welded)
• 41% elongation (as welded)
• 60% reduction of area (as welded)
• 89 HRB Rockwell B hardness (as welded)
• 61,000 psi yield strength (as welded)
• Stainless steel 308 MIG welding wire welds base metals of similar composition
• 90 ft./lb. @ room temperature Charpy V (as welded)
• Restricted carbon content (0.08%) improves mechanical properties

• Weight: 1.1 lbs
• Tensile Strength: 90,000 psi
• Yield Strength: 61,000 psi
• Elongation: 41%
• Reduction of Area: 60%
• Brinell Hardness: 180 HB
• Rockwell B Hardness: 89 HRB
• Charpy V Impact: 90 ft-lb @ room temperature
• Carbon Content: 0.08% max
• Chromium Content: 19.5-22.0%
• Nickel Content: 9.0-11.0%
• Manganese Content: 1.0-2.5%
• Copper Content: 0.75% max
• Silicon Content: 0.30-0.65% max
• Phosphorus Content: 0.03% max
• Sulfur Content: 0.03% max
• Molybdenum Content: 0.75% max
• Iron Content: Balance
• Normal Ferrite Range: 5-12
• Compliance: ANSI/AWS A5.9/A5.9M:2017, ASME SFA 5.9 ER 308
