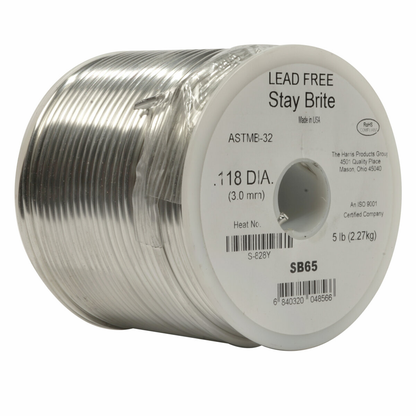

Harris Products Group, SB65, Lead-Free Solder, Eutectic, Low-Temperature, NSF/ANSI 51; 61; 372

Stay-Brite® lead-free solid wire solder is engineered to provide a strong, ductile connections on copper, brass, steel and stainless steel. The silver color is also a good color match to stainless steel. It is a eutectic filler metal with a single melting temperature. This low temperature, rapid melting characteristic promotes capillary flow and less base metal distortion and oxidation. It conforms to NSF/ANI Standard 51 for food service equipment, NSF/ANSI Standard 61 for Drinking Water System Components - health effects and NSF/ANSI 372 for Drinking Water System Components – Lead Content & the US Safe Drinking Water Act amendments. Complies with the EU RoHS directive.

Features

• Complies with the EU Reach & RoHS directive
• The low temperature/rapid melting characteristic promotes capillary flow and less base metal distortion and oxidation
• Industry standard solder for HVAC connections
• Engineered to provide strong, ductile connections on copper, brass, steel and stainless steel
• Ideal for very tight connections
• Silver color is a good color match to stainless steel
• Meets NSF/ANSI Standard 51 for food equipment materials
• Meets NSF/ANSI Standard 61 for drinking water system components - health effects
• Meets NSF/ANSI Standard 372 for drinking water system components - lead content & US Safe Drinking Water Act amendments

• Weight: 1.08 lbs
• Melting Point: 430 F (221 C)
• Shear Strength: 10,600 PSI
• Electrical Conductivity: 16.4 %IACS
• Density: 0.271 lbs/cu.in.
• Material: Lead-Free Alloy (Tin, Silver)
• Silver Content: 3.4-3.8%
• Tin Content: Remainder
• Deposit Color: Silver
• Compliance: NSF/ANSI 51, 61, 372; US Safe Drinking Water Act Amendments; EU RoHS
• Application: Copper, brass, steel, stainless steel
