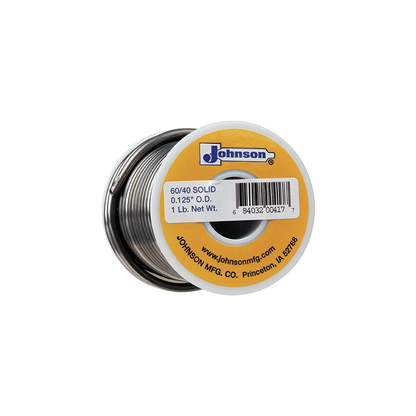

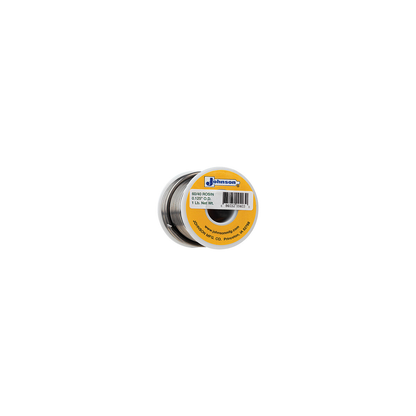

Harris Products Group, 604061, Solder Wire, Sn 60; Pb 40; Alloy Grade, 1-1/2 in

60/40 tin-lead solid wire solder, with some exceptions, can be used to join copper and most copper alloys, lead, nickel alloys and steel. Tin-lead solders are not recommended for joints subject to high stress or vibration in the cooling industry due to lack of sufficient elongation properties. Similar to 50/50 but flows faster due to its narrow melting range. Lead bearing solders are not to be used in potable water system applications.

Features

• Meets ASTM B-32 specifications;Alloy Grade Sn 60;J-STD-006 Sn60Pb40Sb0.4
• Not recommended for joints subject to high stress or vibration in the cooling industry due to lack of sufficient elongation properties
• Popular choice for soldering electronic or electrical connections
• Not for use with plumbing and potable water system applications
• Heat sources include soldering guns, irons and air-fuel torches
• Recommend using Stay-Clean® soldering flux, except on electrical or electronic applications
• Its narrow melting range makes it suitable for dip soldering baths
• Can be used to solder copper and most copper alloys, lead, nickel alloys, and steel with some exceptions

• Weight: 1.05 lbs
• Alloy Grade: Sn 60
• Chemical Composition: Tin 59.5-61.5%, Lead remainder, Antimony 0.20-0.50%
• Solidus Temperature: 361 F (183 C)
• Liquidus Temperature: 374 F (190 C)
• Specification Compliance: ASTM B32, J-STD-006 Sn60Pb40Sb0.4
• Material: Tin, Lead, Antimony
