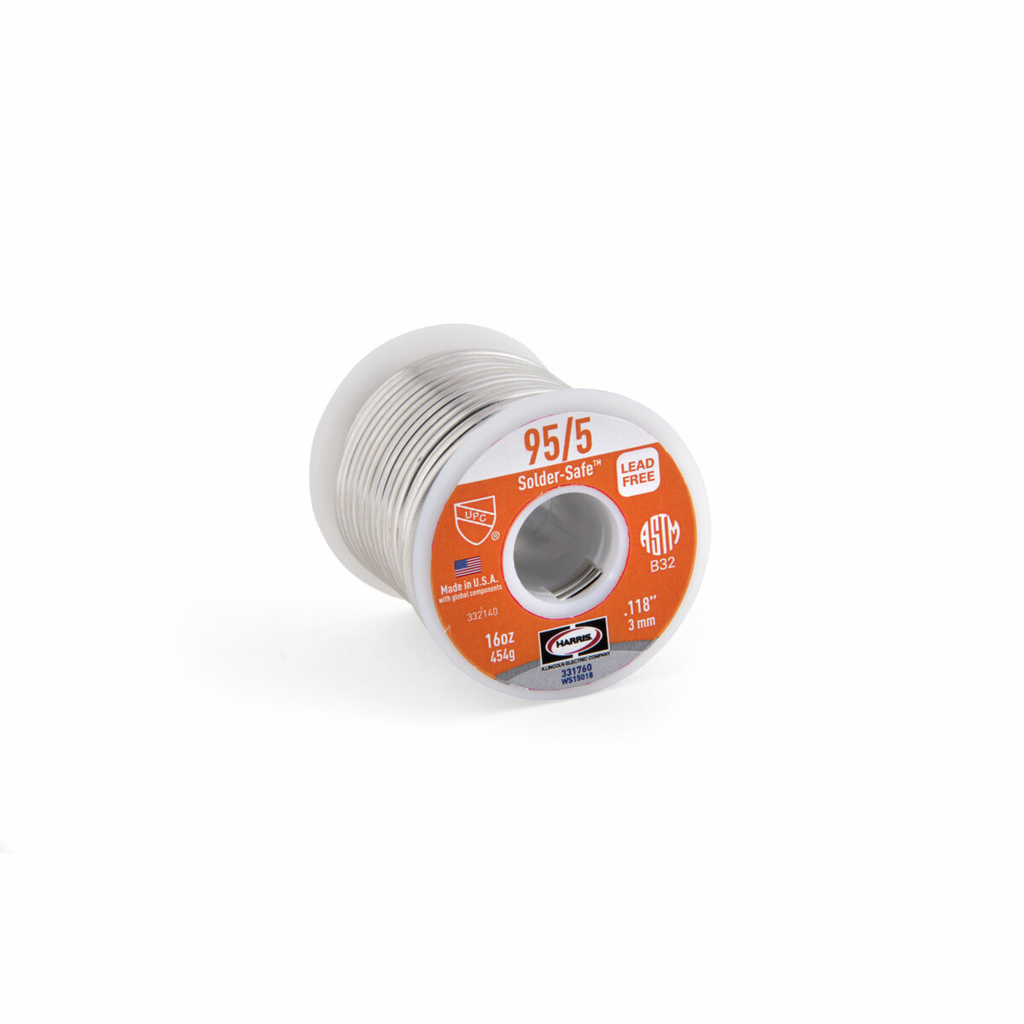

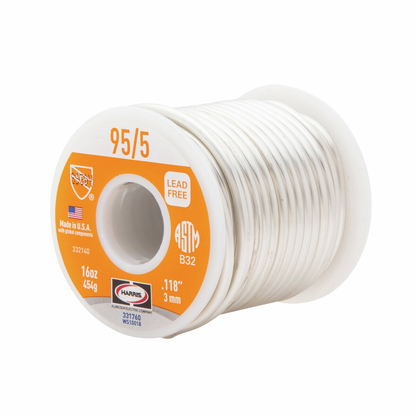

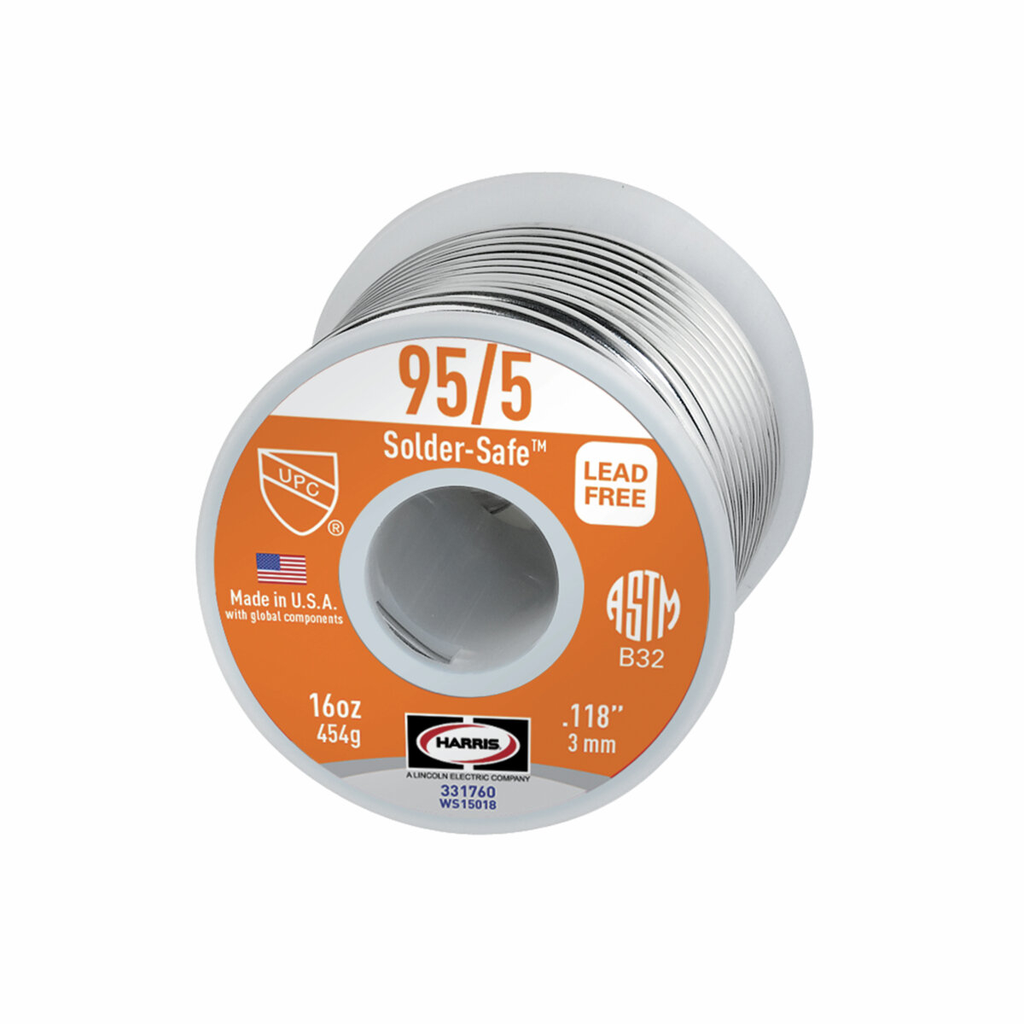

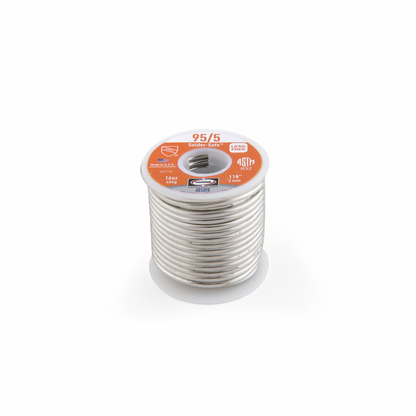

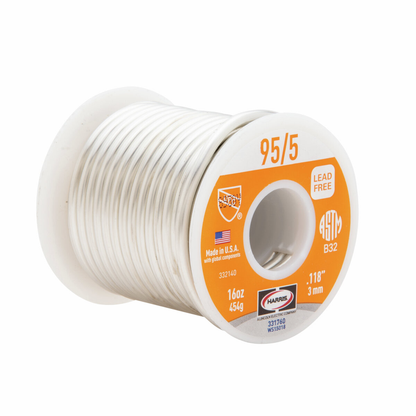

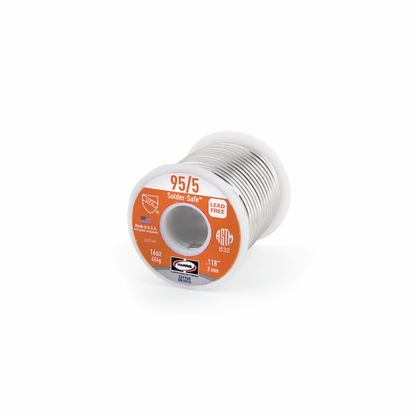

Harris Products Group, 331861, Lead-Free Solder, 95/5, Tin-Antimony, NSF 372 Certified, Low Temperature

95/5 lead-free solid wire tin-antimony solder solder has a low temperature with a narrow melting range. It is primarily used for copper plumbing tube but can be used for other general soldering applications. The rapid melting characteristics require close fitting connections as it is difficult to "bridge" or fill wide clearances. Manufactured per composition ASTM B32 Alloy Sb-5. This solder is NSF 372 certified and meets the requirements of the US Safe Drinking Water Act. Complies with the EU Reach & RoHS directive.

Features

• Silver/gray color as deposited
• Recommend Harris® water-soluble plumbing flux (ASTM B813) for copper and brass plumbing applications and Harris® Stay Clean® liquid soldering flux for steel or other ferrous metals.
• Complies with the EU Reach & RoHS directive
• Requires close fitting connections
• Used to solder copper plumbing and for general soldering applications
• Narrow melting range
• Meets NSF/ANSI/CAN 372 for drinking water system components - lead content & US Safe Drinking Water Act amendments
• Lead-free, low temperature solder
• Solid wire tin-antimony solder
• Meets ASTM B32 Alloy Grade Sb5

• Weight: 1.05 lbs
• Material: Tin, Antimony
• Antimony Content: 4.5-5.5%
• Melting Temperature Solidus: 452 F (233 C)
• Melting Temperature Liquidus: 464 F (240 C)
• Electrical Conductivity: 11.9% IACS
• Type: Lead-free, low temperature, solid wire
• Connection Requirement: Close fitting connections
• Color: Silver/gray
• Compliance: ASTM B32 Alloy Sb-5, NSF/ANSI 61 Annex G, NSF/ANSI 372, US Safe Drinking Water Act, EU Reach & RoHS
