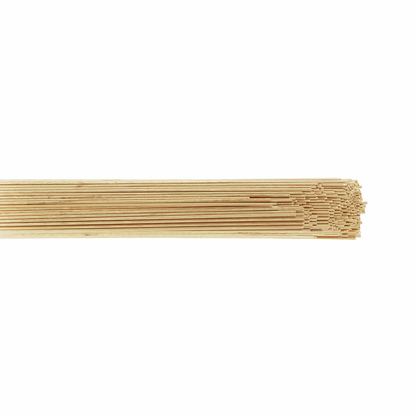

Harris Products Group, 03PHB50, Phos Bronze C TIG Welding Alloy, 7%-9% Tin, ANSI/AWS A5.7, 66,000 psi Tensile

Phos Bronze C TIG (GTAW) copper-tin welding alloy is used to weld copper-tin composition base metals. Also used to weld copper alloys, including brass-to-steel. Conforms to ANSI/AWS A5.7 & AMSE SFA A5.7 ERCuSn-C CDA 521.

Features

• Use with 100% argon or 25%/75% argon/helium shielding gas mixture
• Typical applications include maintenance, repair and fabrication of bearings, bushings, couplings, gears, housings, propellers, pumps, shafts and valve bodies and seats
• Designed for welding base metals of steel, cast iron, copper, brass and bronze
• Conforms to ANSI/AWS A5.7 & AMSE SFA A5.7 ERCuSn-C CDA 521
• The 7%-9% tin content creates greater hardness
• Pre-heat is generally not required unless welding high copper content base metals
• Yields high strength (66,000 psi tensile and 35,000 psi yield) deposits on phos-bronze materials
• Often used on overlays on cast iron or steel or to join dissimilar metals

• Weight: 1.02 lbs
• Tensile Strength: 66,000 psi
• Yield Strength: 35,000 psi
• Elongation: 45%
• Brinell Hardness: 90-100 HB
• Solidus Temperature: 1620 F (882 C)
• Liquidus Temperature: 1880 F (1027 C)
• Material Composition: Tin 7.0-9.0%, Copper balance, Phosphorus 0.010-0.35%, Lead max 0.02%, Zinc max 0.20%, Iron max 0.10%
• Compliance: ANSI/AWS A5.7, AMSE SFA A5.7 ERCuSn-C CDA 521
• Recommended Shielding Gas: 100% Argon or 25%/75% Argon/Helium mixture
• Welding Type: GTAW (TIG)
