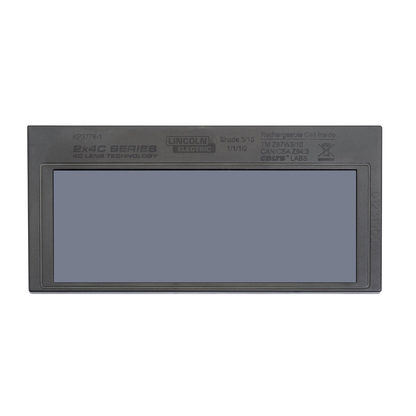

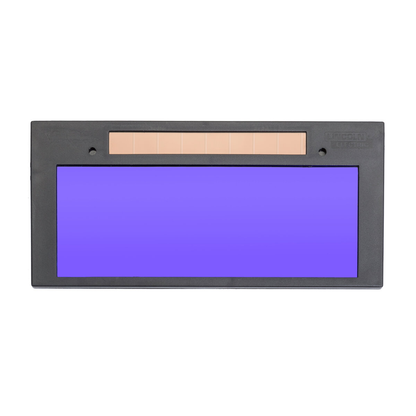

Lincoln Electric, KP3778-1, Auto Darkening Lens, Fixed Shade 10, 4C Lens Technology, 0.20 in Thickness

The VIKING 2x4C Series - Auto Darkening Lens utilizes world renowned 4C Lens Technology to provide crystal clear view of the arc and puddle. This exclusive liquid crystal lens broadens the color range & hues which can be seen in both light and dark states. Compatible with most pipeline, pancake and construction style helmets, this versatile lens provides shade control for seamless process changes and sensitivity control for optimized performance based on application.

Features

• Two Arc Sensors for consistent arc switching
• High Temperature Housing to reduce lens failures due to heat exposure
• 4C Lens Technology eliminates imperfections and color saturation to create a clear view of the base material, arc & puddle while reducing eye strain
• Solar Rechargeable utilizes natural and generated light to provide self sufficient power
• 0.20 in. Cartridge Thickness allows compatibility with most helmet models and can be used with cheater lenses

What's Included?

• (1) Auto Darkening Lens

• TIG Amp Rating: > 5 Amps
• Shade: Fixed 10
• Lens Technology: 4C Lens Technology
• Lens Switching Speed: 1/10,000 sec.
• Arc Sensors: 2
• Power Supply: Solar Rechargeable with Replaceable Batteries
• Sensitivity: Adjustable
• Operating Temperature Range: -10 C to +55 C (14 F to 131 F)
• Storage Temperature Range: -20 C to +70 C (-4 F to 158 F)
• Cartridge Size: 4.25 x 2.00 x 0.20 in (108 x 50 x 5 mm)
• Viewing Area: 3.63 x 1.38 in (92 x 35 mm)
• Cartridge Thickness: 0.20 in
• Housing Material: High Temperature
• Compatibility: Most pipeline, pancake, and construction helmets
• Warranty Length: 2 Years
• Country of Origin: China
