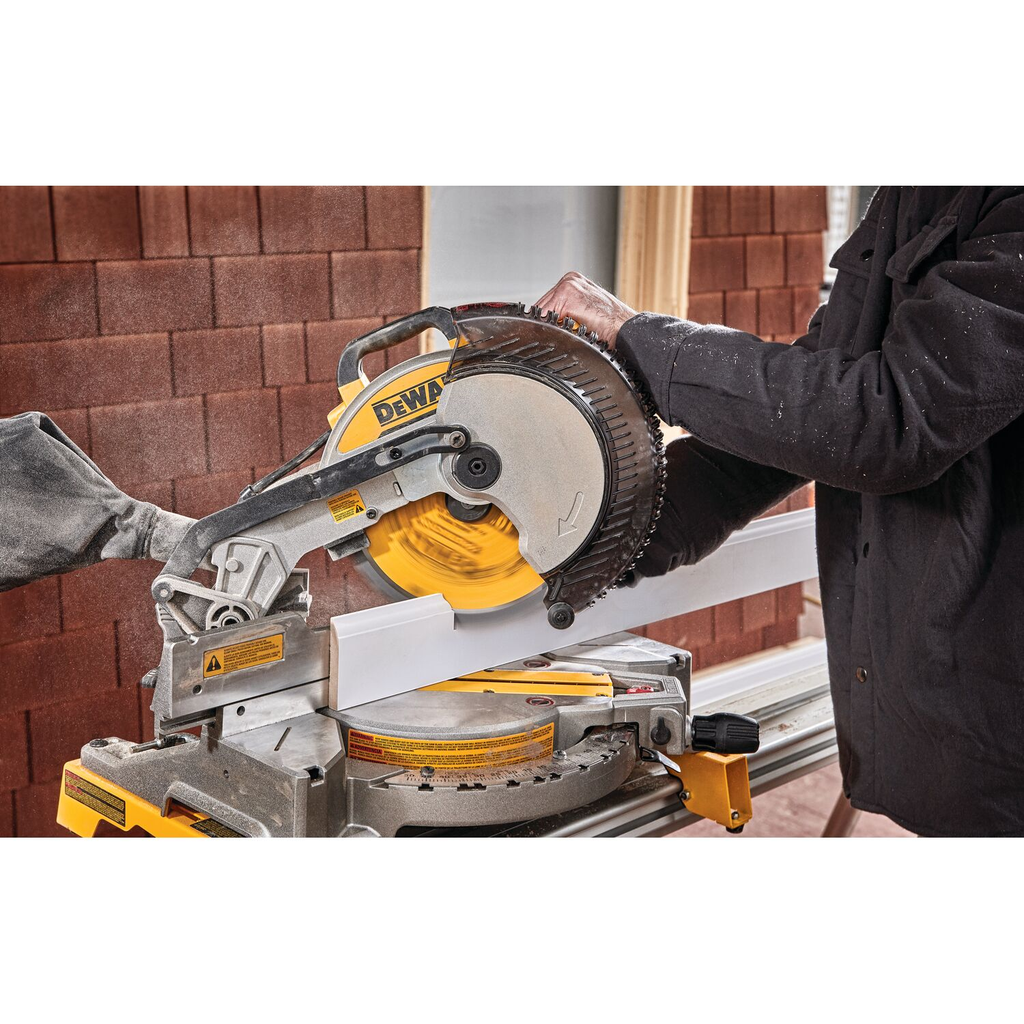

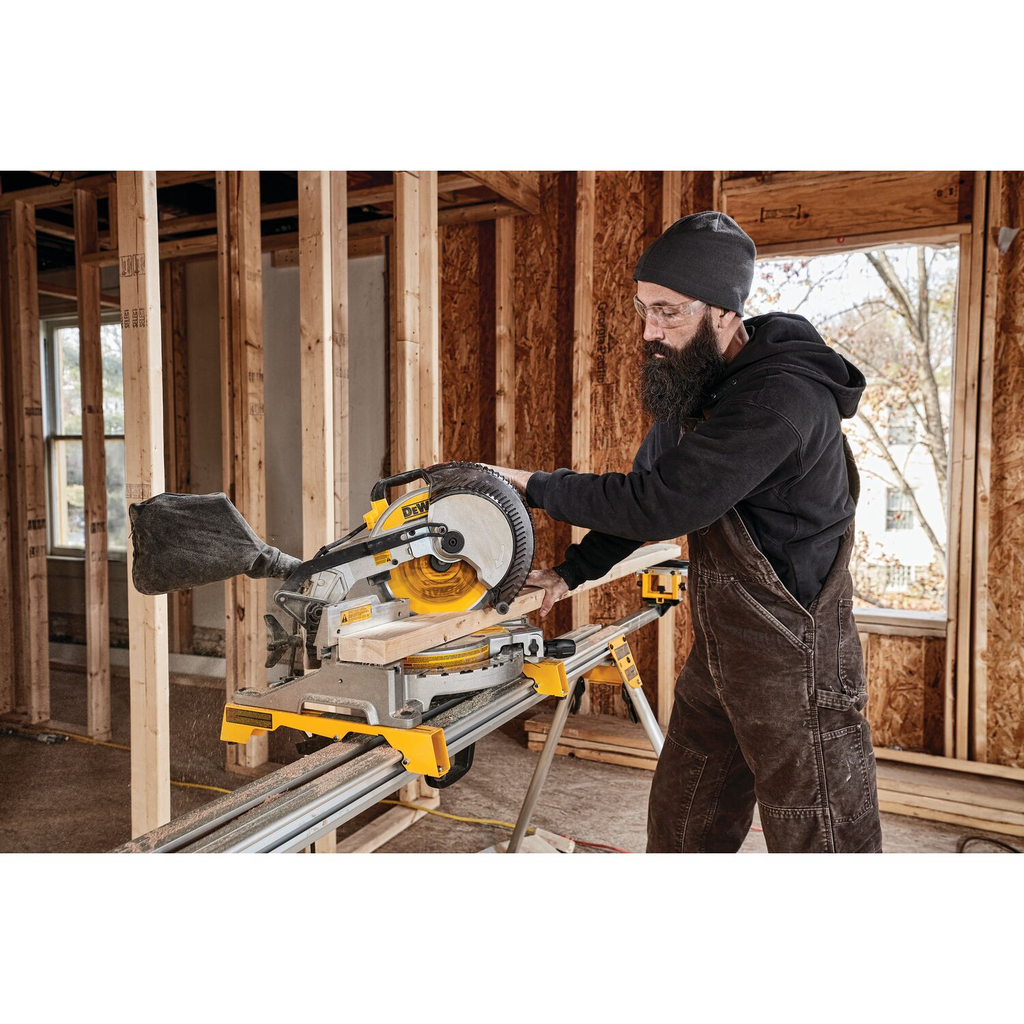

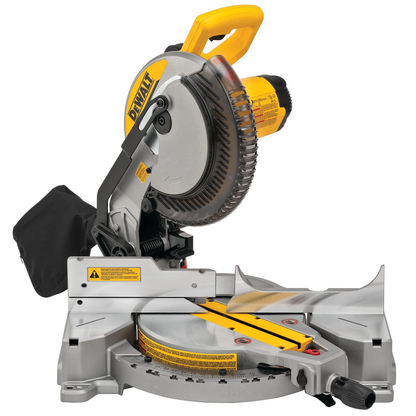

Powered by a 15 Amp motor that delivers 5,000 rpm for extended power and durability. It features a stainless-steel miter detent plate and turn knob lock that provide repeatable accuracy and durability with easy adjustments. Tall sliding fences support 4-1/2 in. of crown molding vertically nested. The lightweight design and built-in carry handle allow for great portability.

Prop 65

  • Yes

Features

  • Tall sliding fence supports 4-1/4 in. base vertically

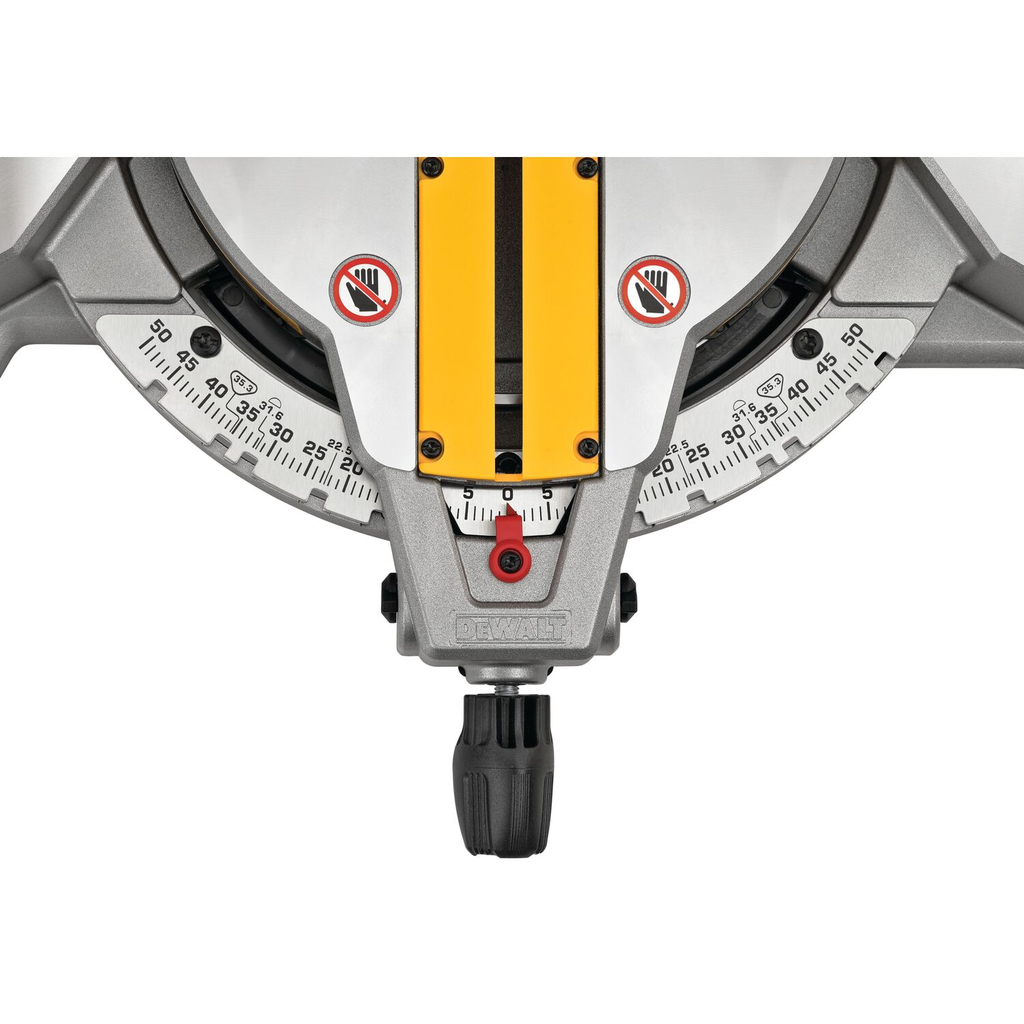

  • Stainless-steel miter detent plate with 14 positive stops

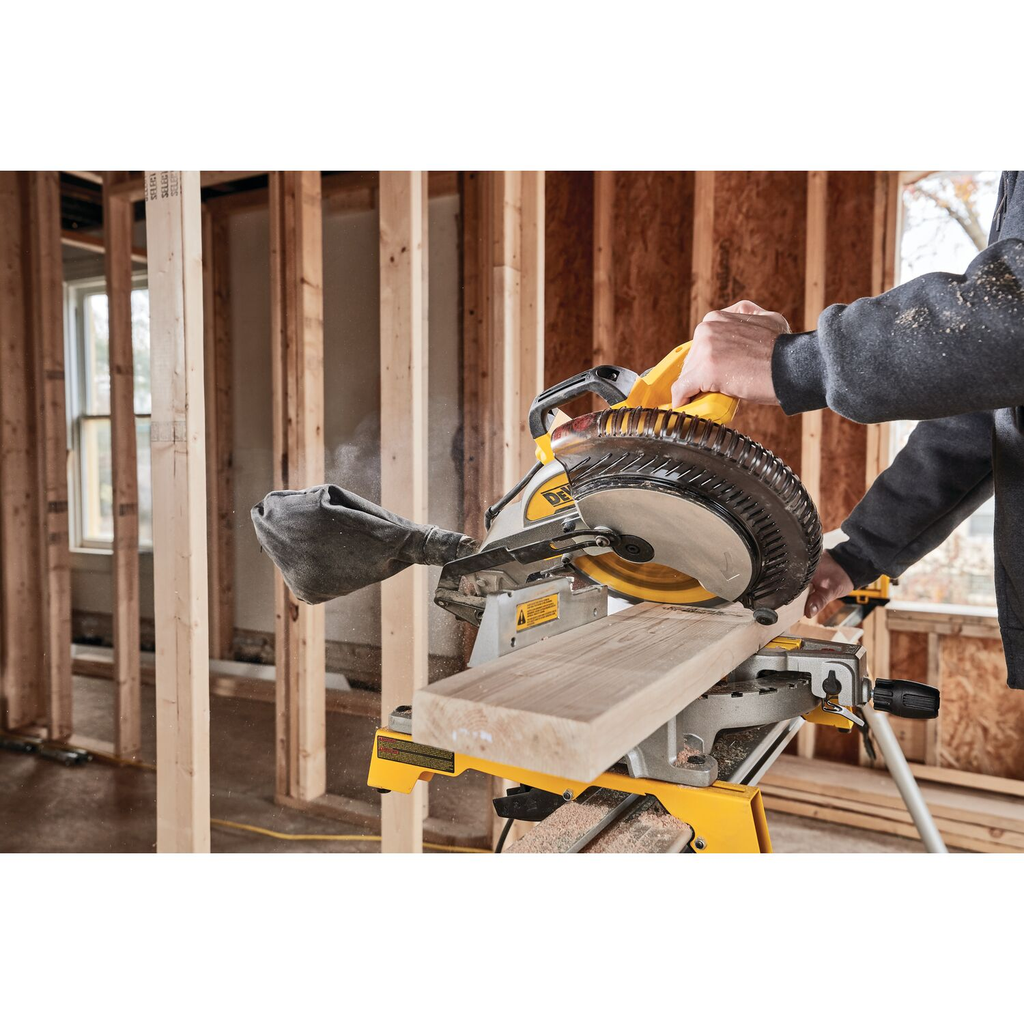

  • 2 in. x 6 in. dimensional lumber cross cut capacity at 90° and 2 in. x 4 in. dimensional lumber at 45°

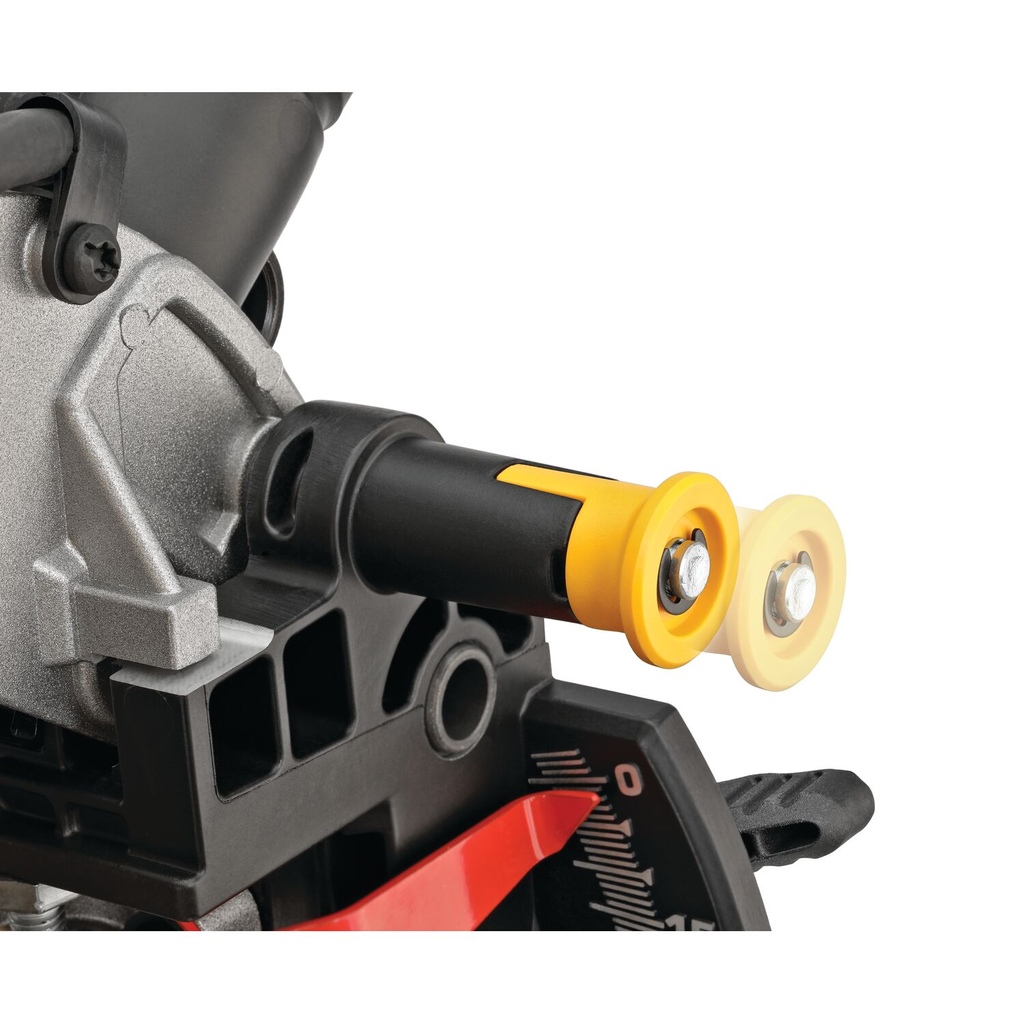

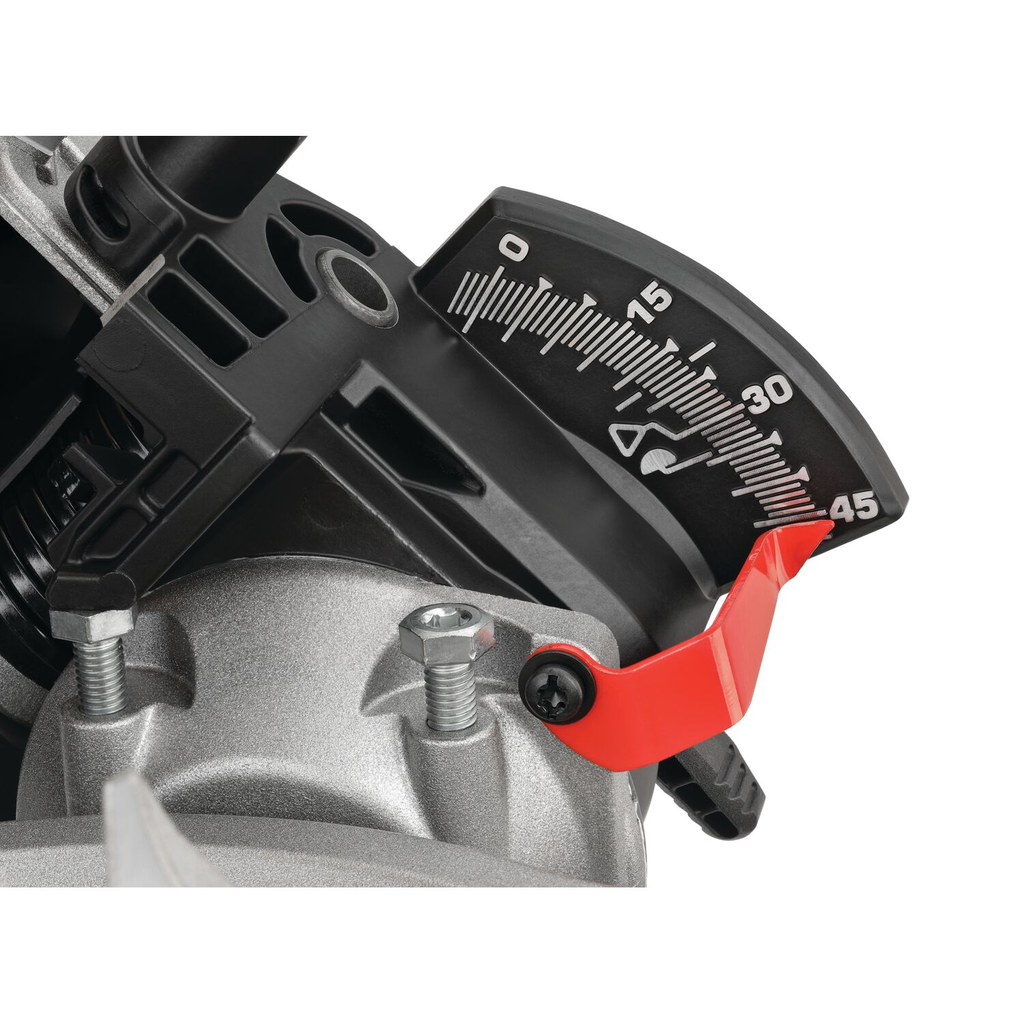

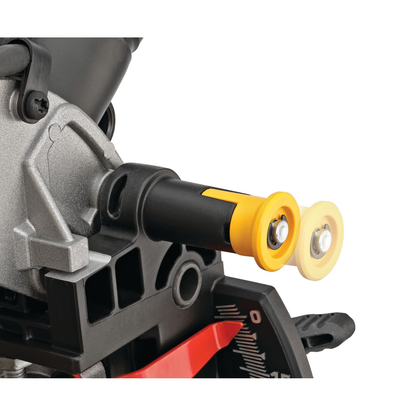

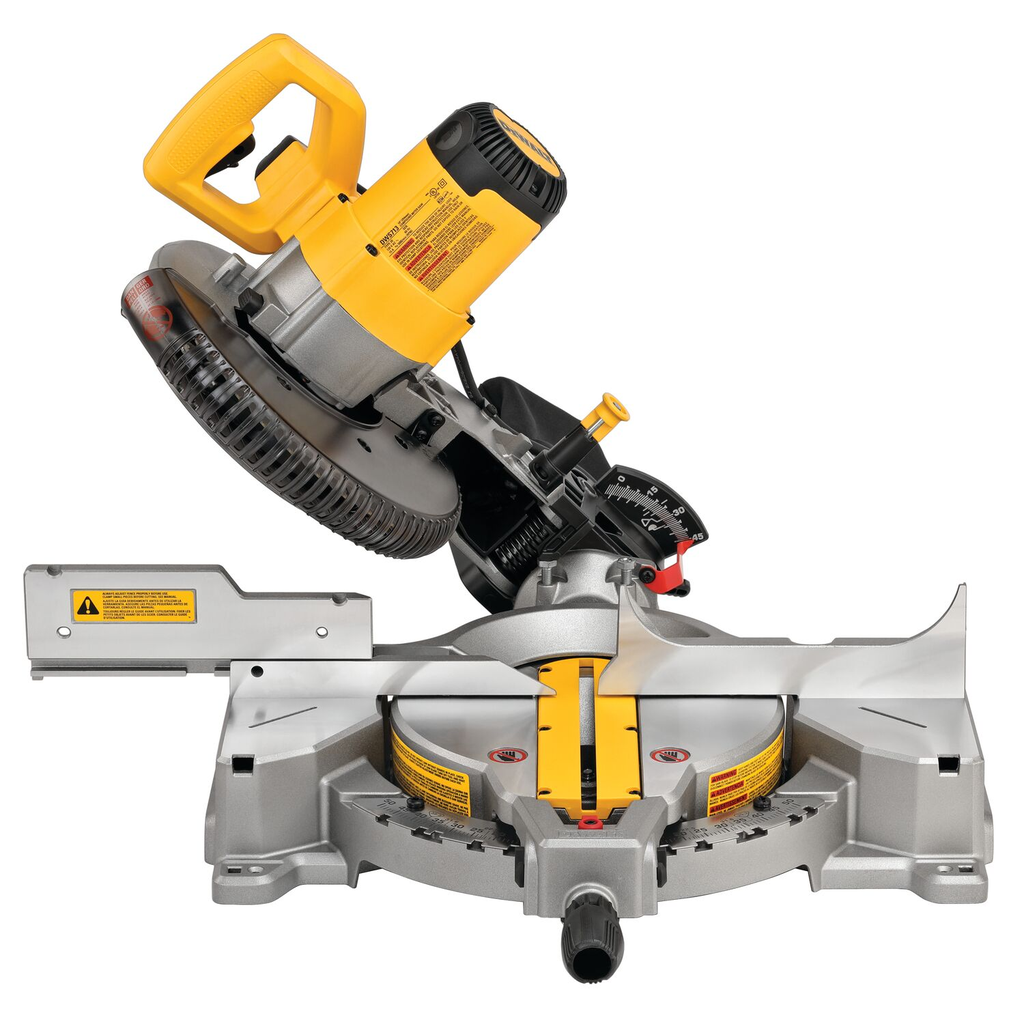

  • Bevels 0° - 48° to the left and 0°- 3° to the right

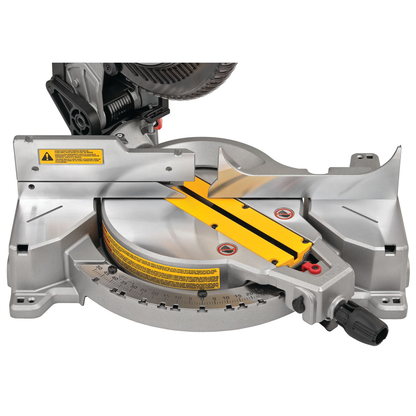

  • Precise miter system and machined base fence support

Includes

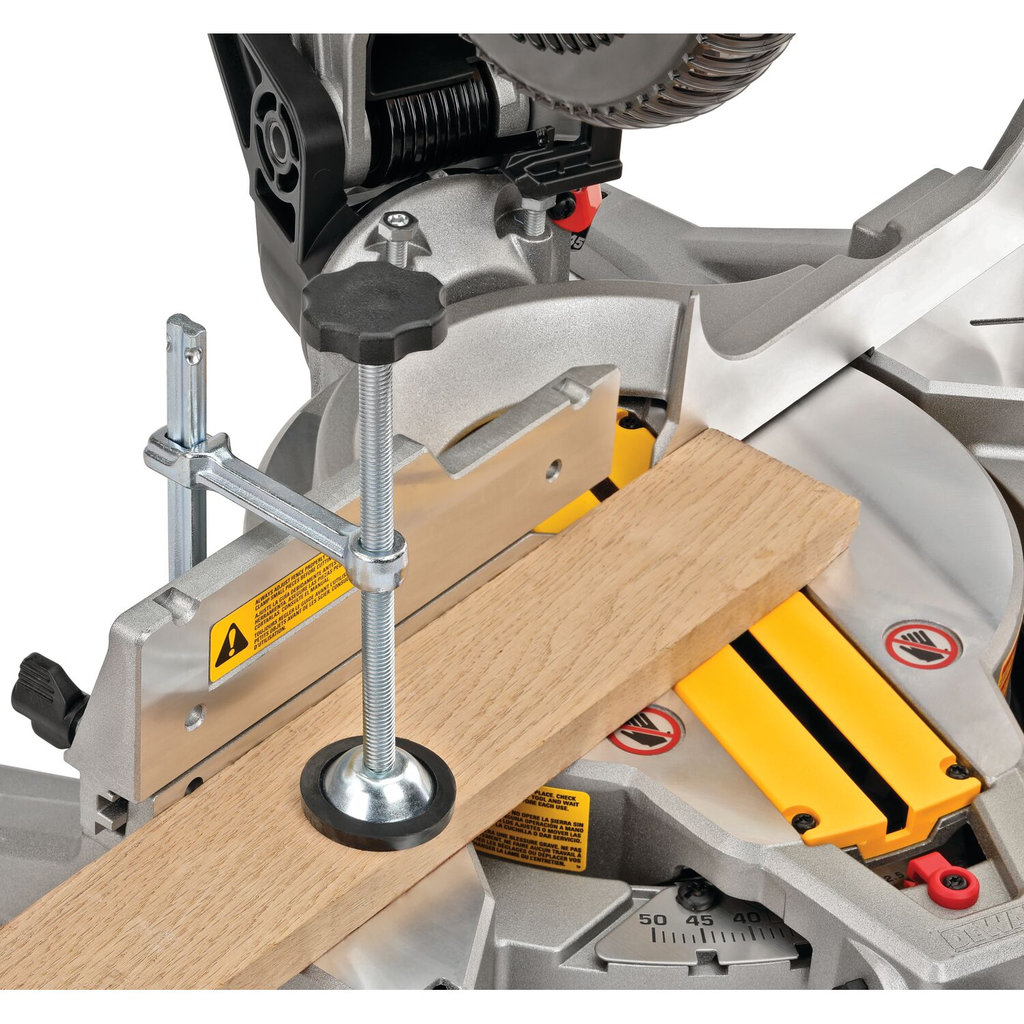

  • (1) 10 in. Carbide tipped blade | (1) Wrench | (1) Dust bag | (1) Vertical clamp | (1) DWS713 Single bevel compound miter saw
  • Amperage: 15 A
  • Power Input: 1600 W
  • Maximum Speed: 5000 RPM
  • Blade Size: 10 in
  • Bevel Capacity: 48
  • Miter Stops: 14 positive stops
  • Cross Cut Capacity: 2 in x 6 in at 90 , 2 in x 4 in at 45
  • Fence Height: 4-1/2 in
  • Maximum Cut Depth @ 45: 4 in
  • Maximum Cut Depth @ 90: 2 in x 6 in
  • Voltage: 110 V
  • Cord Length: 8 ft
  • Arbor Size: 5/8 in
  • Weight: 37.75 lbs
  • Length: 23.72 in
  • Width: 20 in
  • Height: 16.83 in
  • Cuts Into: Metal
  • Dust Collection: Yes
  • Dust Collection Component: Bag
  • Spindle Lock: Yes
  • Cordless Vs. Corded: Corded
  • Saw Drive Type: Direct Drive
  • Battery Included: No
  • Integrated Laser Guide: No
  • Warranty: 3-year limited warranty
  • Country of Origin: Taiwan
  • Saw Type: Compound Miter
