DEWALT, DWH304DH, Dust Extractor, Fits 1-1/8 in. SDS Plus Rotary Hammers, 10 in. Max Depth, Adjustable Depth Gauge

This OSHA Table 1-compliant Dust Extractor works with the cordless DCH293 and the corded D25333 1-1/8 in. Rotary Hammers. It features an OSHA 1926.1153-compliant Dust Box Assembly. With a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater. This Dust Extractor has a powerful fan assembly for increased suction during high-performance drilling. It allows users to drill up to 1 in. diameter, to depths up to 10 in. Install large diameter sleeve, stud/wedge, and screw anchors using our onboard dust extractor.

Features

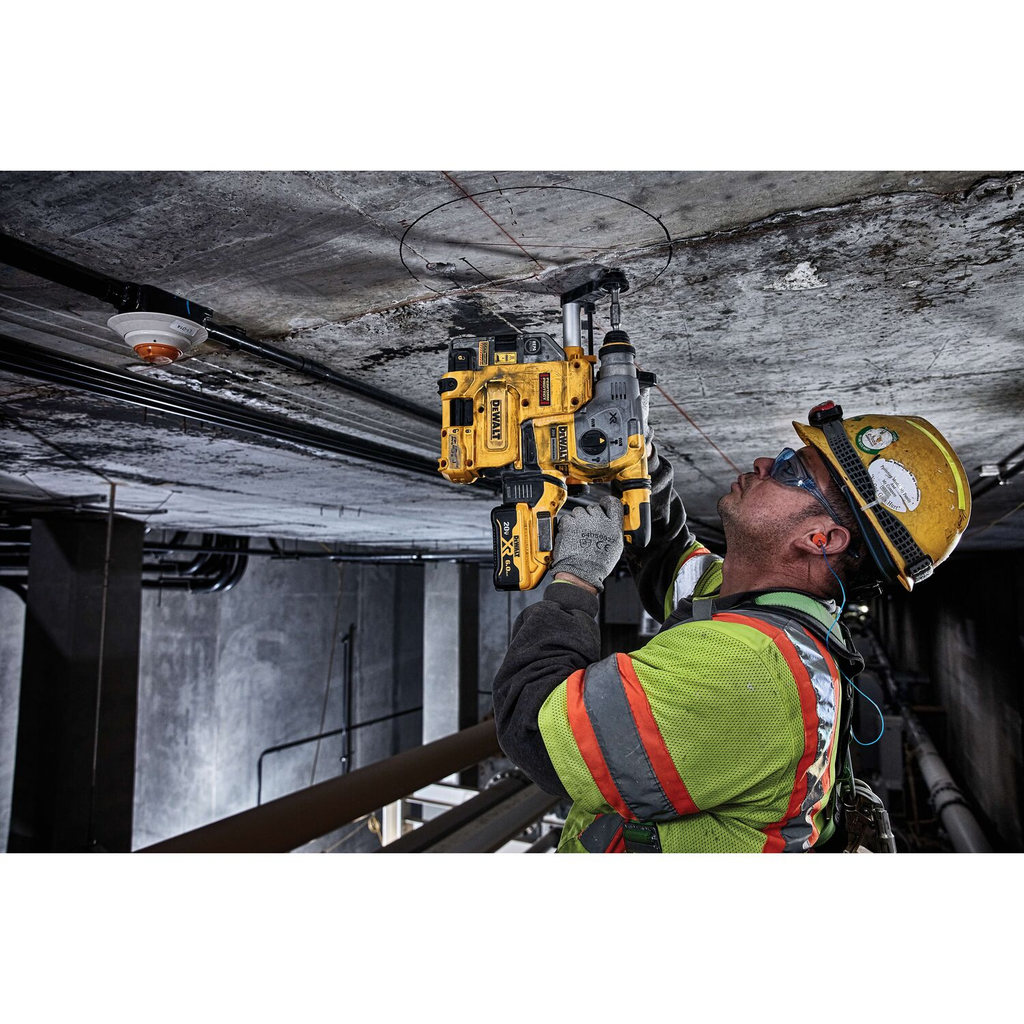

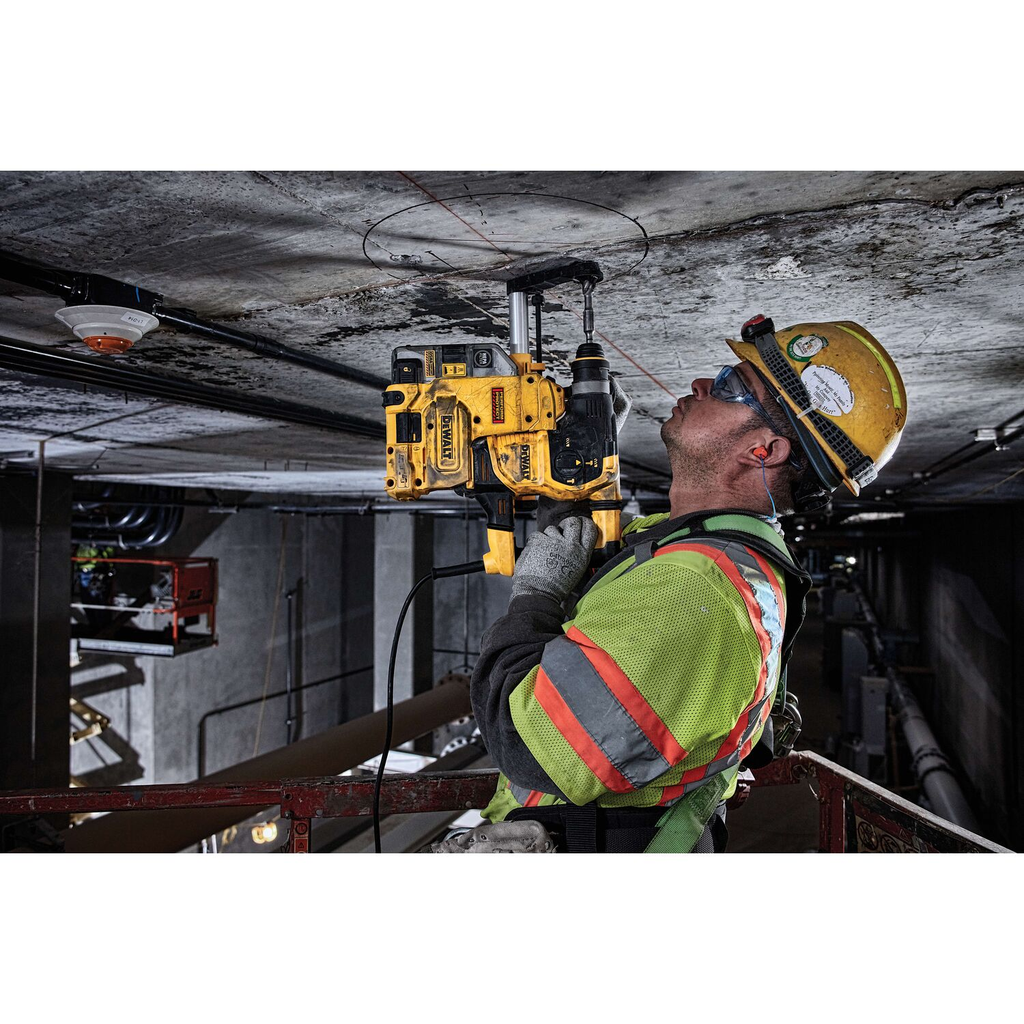

• Fits into tight spaces on scissor lifts and between overhead pipes and duct work
• Works on DEWALT corded and cordless 1-1/8 in. SDS Plus rotary hammers
• Mechanically attaches to the tool motor to power dust collection, maximizing runtime of the battery
• Drill up to 1 in. Diameter, 8 in. useable length, 10 in. overall length bits
• Replaceable dust nozzle to quickly change to new nozzle
• Easily adjustable depth guage for accurate anchor drilling
• Table 1-compliant dust management solution for 1-1/8 in. SDS Plus rotary hammers
• Clear, durable dust box ensures users can see when dust box needs to be emptied
• Unit ships configured for DCH293 cordless rotary hammer. Supplied adapters allow tool to fit corded D25333 SDS Plus Rotary Hammer

Includes

• (1) DWH304DH Dust Extractor | (1) DWH302DH Dust Box

• Compatible Hammer Type: 1-1/8 in. SDS Plus rotary hammers
• Drill Diameter Capacity: 1 in.
• Drill Length Capacity: 10 in. overall length, 8 in. usable length bits
• Width: 12.125 in
• Height: 5.188 in
• Length: 18.878 in
• Weight: 5.650 lbs
• Cordless Vs. Corded: Corded
• Battery Included: No
• Country of Origin: China
• Warranty: MWC
• Product Type: DRILL ATTACHMENT
• Dust Box Compliance: OSHA Table 1, OSHA 1926.1153
• Filter Type: HEPA, 99.97% @ 0.3 microns
• Dust Box Features: Clear, durable, replaceable nozzle
• Tool Compatibility: DCH293 cordless, D25333 corded rotary hammers
