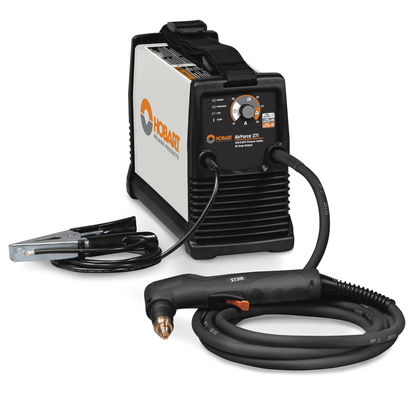

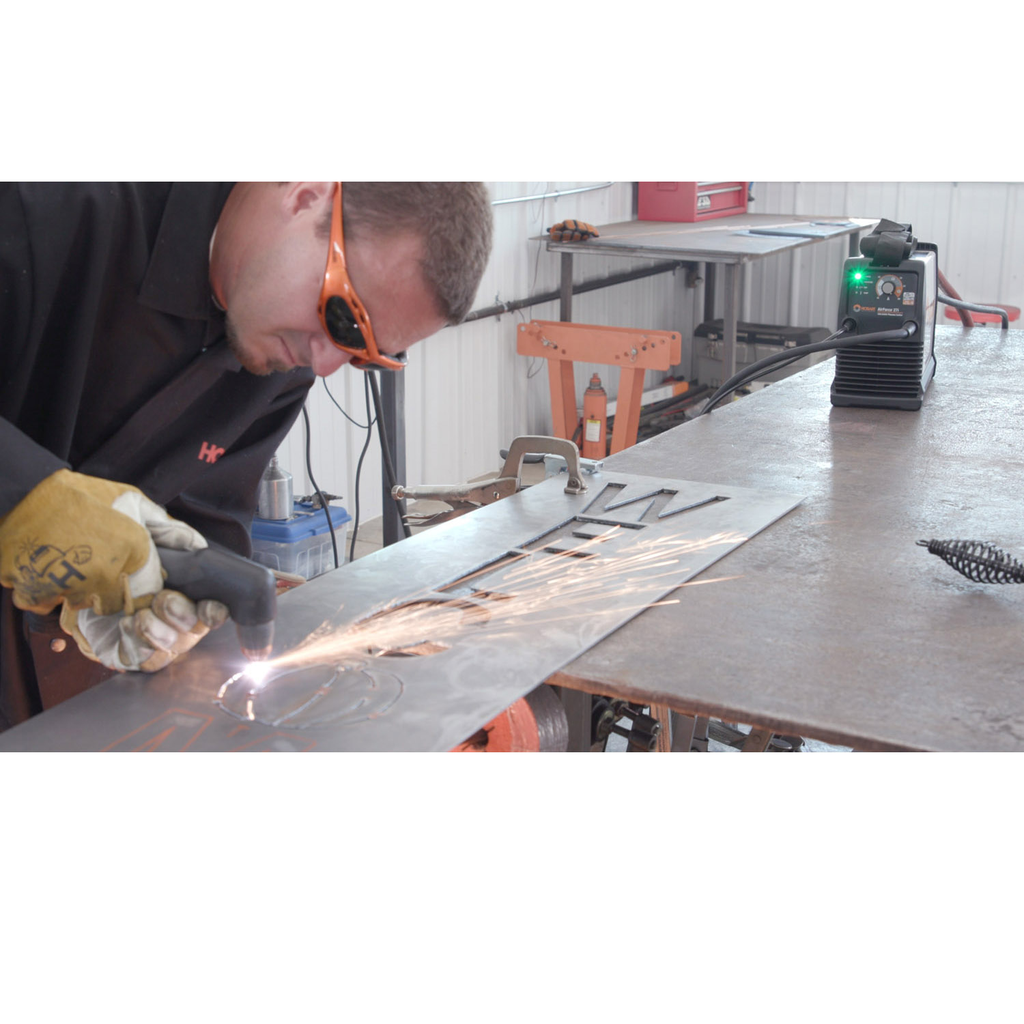

Hobart Welding Products, 500575, Plasma Cutter, 120/240 V, 30 A, 3/8 in Steel Cutting, 12 ft Torch

The AirForce® 27i with MVP™ (multi-voltage plug) technology can be used on 120 V or 240 V input power. Clean cuts 3/8" steel.

Features

• Complete cutting capability when powered by an engine-driven welder with 240V receptacle of 4 kW or more.
• Designed for increased comfort with an ergonomic trigger safety, more efficient cooling and economical replacement cutting tips.
• 50% smaller than the previous model so you need less room to store it.
• Draws up to 30% less amperage for the same cutting range as compared to the competition. PFC expands operators work area via extension cord, while minimizing nuisance circuit breaker trips caused by voltage drops.
• Weighing only 19 lbs. - a 30% reduction when compared to the previous model - it's easy to move to or within your workspace.
• Provides peak performance power under variable input voltage conditions (+/- 15%) for steady and cleaner-ending cuts.
• Allows you to connect to common 115 or 230 V power receptacles without the use of any tools - simply choose the plug that fits the receptacle.
• Protects unit by not interfering with or damaging controls or computers.
• LED lights for quick troubleshooting of pressure, power and cup situations.
• Prevents abrasive dust and particles from damaging internal components.
• Controls amount of usage and flow or air or gas.
• Cooling system operates only when needed reducing power consumption and contaminants drawn into the machine.
• Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, Plasma and TIG torches).
• Extends life of consumables and torch by cooling them with postflow air after trigger is released.

Includes

• 12 ft. work cable with clamp

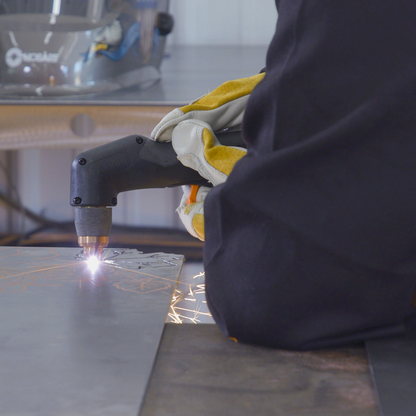

• 12 ft. XT30R hand-held torch
• Cable management
• 10 ft. power cord with 5-15P (120V, 15A) and 6-50P (240V, 50A) MVP™ Plugs
• Easy-to-connect, built-in gas/air filter and regulator for extra protection
• Extra consumables (2 tips, shield deflector, and electrode)

• Voltage: 110/115/120 V, 220/230/240 V
• Cutting Amperage Max: 30 A
• Cutting Amperage Min: 14 A
• Rated Output at 104 degrees F: 120 V (20 A) - 27 A at 92 VDC, 35% duty cycle; 240 V - 30 A at 92 VDC, 40% duty cycle
• Max Open Circuit Voltage: 400 VDC
• Cutting Capacity: 3/8 in Steel
• Weight: 19 lbs
• Width: 5.5 in.
• Length: 13.25 in.
• Height: 9 in.
• Torch Length: 12 ft
• Work Cable Length: 12 ft
• Power Cord Length: 10 ft
• Power Cord Plugs: 5-15P (120V, 15A), 6-50P (240V, 50A)
• Capability Gouging: False
• Country of Origin: United States
