Lincoln Electric, K5458-1, Plasma Cutter, 45A, 20 ft Hand Torch, 5/8 in Max Cutting Thickness, Air/Nitrogen Gas Supply

Plasma Cutting - Anywhere, Anytime. The Tomahawk 45 plasma cutting system is versatile and portable, weighing only 28 lbs. You can easily carry it to any job site and start cutting projects. This system can handle everything, whether cutting through thick metal or working with expanded metal. With its 45A capability, you can tackle even the most challenging cutting tasks. Tomahawk initiates the plasma arc with a simple yet reliable touch-start mechanism that eliminates many failure problems associated with high-frequency start systems. The control system includes a Parts-in-Place™ feature to ensure consumables are in place before initiating the cutting or gouging process. Hook up the compressed air, grab the torch, and you’re all set.

Features

• Lightweight and Portable – Easily carried by one person.
• Continuous Output Control – Focus the arc for different material thickness.
• Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.

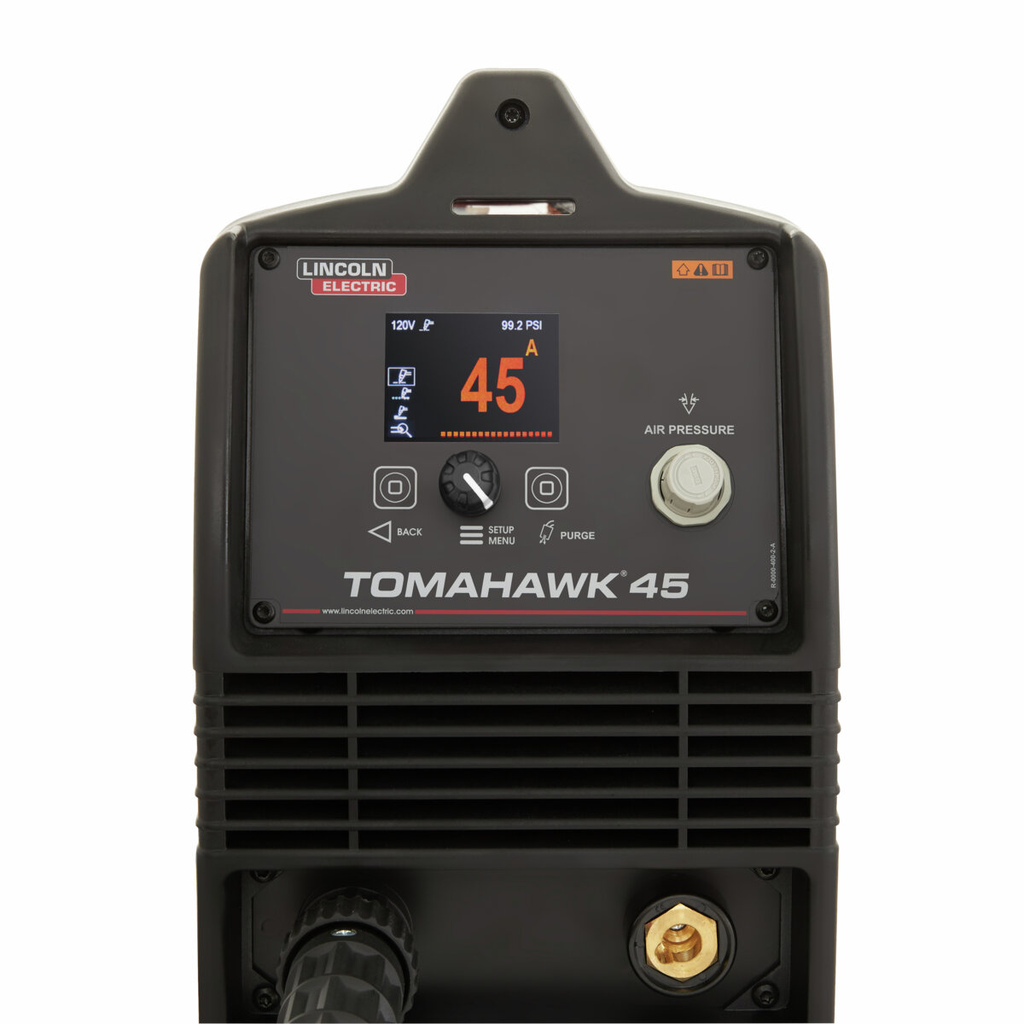

• 2.8 in. LCD Screen – For an easier and user friendly user interface.
• Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations.
• Cool Operation, Long Consumable Life - Numerous torch consumables for a wide range of hand-held applications.
• Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.
• Touch Start System – Reliable plasma arc initiation without high frequency.

What's Included?

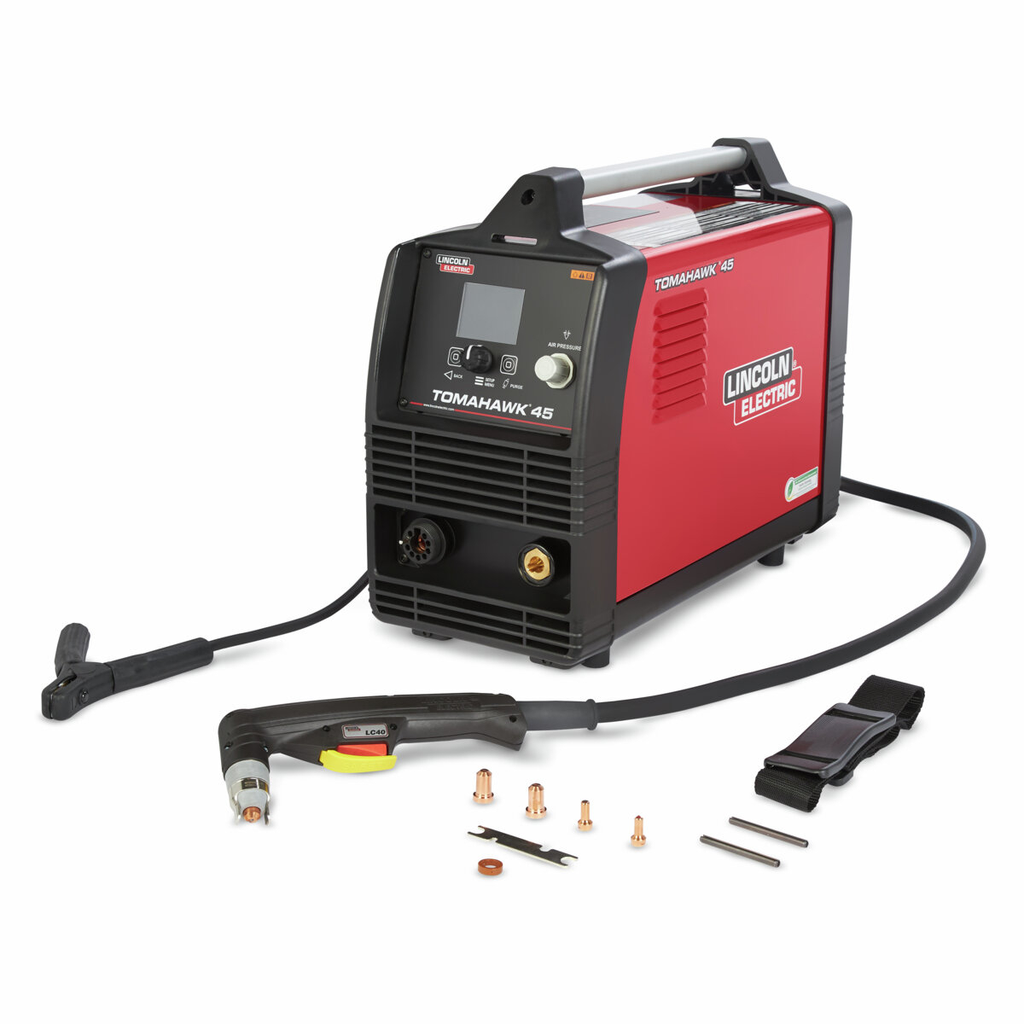

• (1) Tomahawk 45 Plasma Cutter, (1) K2847-1 LC40 Hand Torch 20 ft Cable, (3) KP2843-1 Electrode, (3) KP2843-2 Nozzle 40A, (2) KP2842-4 Swirl Ring, (1) KP2843-5 Retaining Cap (Standard), (1) KP2843-2 Drag Spacer, (1) Air Regulator and Pressure Gauge, (1) Internal Water Separator, (1) Work Clamp and Cable, (1) Shoulder Strap, (1) Input Power Cord

• Output Current Range: 10-45A
• Input Power Voltage: 230V, Single Phase, 60 Hz
• Input Current at Rated Output: 23A (Max)
• Rated Output Current/Voltage/Duty Cycle: 30A/92V/100%, 40A/96V/60%, 45A/98V/45%
• Gas Pressure Required: 80-110 psi (6-7.5 bar)
• Gas Flow Rate: 70 psi @ 125-200 SCFH (5 bar @ 80 L/min)
• Cutting Capacity: Recommended max cut: 5/8 in (15.9 mm), Severance max cut: 3/4 in (19.1 mm)
• Length: 18.9 in (480 mm)
• Width: 8.5 in (215 mm)
• Height: 15.2 in (385 mm)
• Weight: 34 lb (15.42 kg)
• Torch Cable Length: 20 ft (6.1 m)
• Material: Handheld torch with consumables
• Output Polarity: DC
• Cooling: Air
• Gas Supply: Air or Nitrogen
• Welding Technology: Inverter/Chopper
• Machines Processes: Plasma Cutting; Plasma Gouging
• Torch Included: Yes
• Work Clamp Included: Yes
• Interface Screen Size: 2.8 in LCD
• Country of Origin: Poland
• Warranty Length: 3 Years for Machine, 1 Year for Torch
