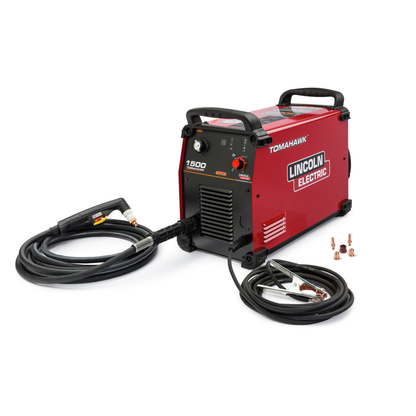

Lincoln Electric, K3477-2, Plasma Cutter, 100 A, Inverter/Chopper, Hand Torch 50 ft

Heavy-Duty, 100 AmpsIf you’re cutting fine artwork or fabricating steel parts in a production setting, you will need a plasma machine that will give you the cleanest and fastest cuts possible. Heavy duty at 100 amps, 60% Duty Cycle, the Tomahawk® 1500 plasma cutting power source brings power and flexibility to hand-held torch cutting applications.

Features

• Built-on a proven inverter platform, the Tomahawk 1500 is a constant current, plasma cutting power source that delivers faster cut speeds, optimal cut performance, and durability.
• Tomahawk 1500 is designed to deliver. When you’re cutting up to 1 1/4 in. (31.8 mm) material in a hand-held application, you can count on excellent cut quality with faster cutting speeds as compared to oxy-fuel cutting.
• The control system includes a Parts-in-Place™ feature to ensure that the consumables are in place before the cutting or gouging process can be initiated.
• The air regulator and pressure gauge are standard features, and the accompanying hand-held torch and consumable starter kit enables the user to get started right out of the box.
• IP23 rating makes Tomahawk 1500 rugged enough for use outdoors as well as indoors.
• Tomahawk initiates the plasma arc with a simple yet reliable touch-start mechanism that eliminates many of the failure problems associated with high-frequency start systems.

What's Included?

• (1) K2809-1 Tomahawk 1500 Plasma Cutter, (1) K2849-2 LC105 Hand Torch - 50 ft, (1) Air regulator and Pressure Gauge, (1) Internal Water Separator, (1) Work clamp - 25 ft, (1) Input Power Cord, (1) KP4141-20 Consumable Starter Kit for LC105 Torch

• Amperage: 100A
• Output Current Range: 25-100A
• Input Voltage / Phase / Frequency: 200-208/230/380/460/575 V, 1/3 Phase, 50/60 Hz
• Cut Capacity: 1-1/4 in (31.8 mm)
• Severance Capacity: 1-1/2 in (38.1 mm)
• Cut Speed: up to 182 ipm
• Duty Cycle: 60%
• Cooling: Air
• Weight: 96 lb (44 kg)
• Dimensions (HxWxD): 17.9 x 11.8 x 25.4 in (455 x 301 x 645 mm)
• Torch Lead Length: 50 ft (15 m)
• IP Rating: IP23
• Start Mechanism: Touch-start
• Output Polarity: DC
• Output Icon: DC
• Cooling: Air
• Welding Technology: Inverter/Chopper
• Country of Origin: Multi Country
